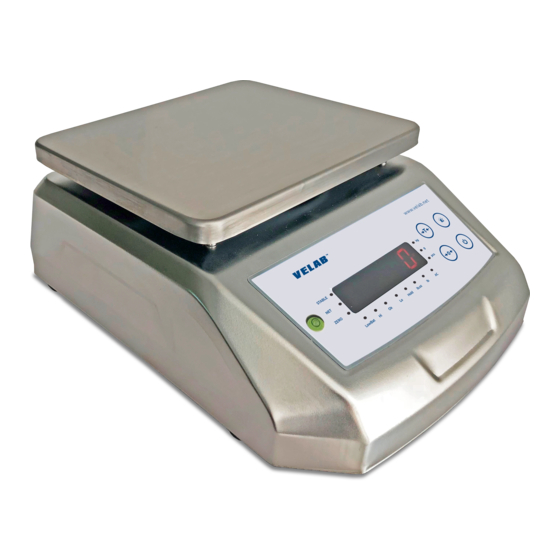

- Page 1 SERVICE MANUAL COMPACT SCALE VE-K IP68 SERIES Revision 1.1 / July 2017 VELAB, Co. 2017 Rev. 1 | Nov_2017...
-
Page 2: Table Of Contents
Single Point Calibration ........................6 3.4. Unit Settings ` ............................ 7 3.5. Internal Function Settings ......................... 7 INTERNAL TEST ..........................8 TROUBLESHOOTING .......................... 8 SPECIFICATIONS ..........................8 WARRANTY INFORMATION ....................... 9 © COPYRIGHT INFORMATION ......................9 VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 3: Keypad Definition
Sets high and low weighing limits weighing limit, press the key for 3 sec. In weighing mode, to turn off function for high and low Sets user functions weighing limit, press the key for 3 sec. VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 4: Switching Scale On
3 sec., then “off” will displayed and the scale will shut off 2.5. Unit Conversion STEP PROCEDURE Press and hold the key for 3 sec. to convert units to kg, g, pcs, lb.oz, lb VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 5: Parts Counting
“A J-X” (dynamic weighing) is displayed. When “A J-X” is displayed, press the key to set dynamic weighing, ”A J-0~A J-9” indicates that 0~9 sensibility is locked, then press the key, “APF-XX” (auto power-off) is displayed. VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 6: Parameter Function Settings
C-ZERO stable , then it will show SPAN When 1/3 of the load capacity is placed on scale, the LED display will show on1 stable , then it will show PASS then it will return to weighing mode after countdown VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 7: Unit Settings
(b) Manual zero range | 0 = 2%, 1 = 3%, 2 = 4% (c) Automatic zero tracking range | 0 ~9, 0.0~0.9d (d) Automatic zero range | 0 ~9 (e) Automatic zero range when loaded | 0 ~9 0~9d VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 8: Internal Test
SPECIFICATIONS Switch unit on and press and hold the keys to turn on MODE 1500g 3000g 6000g 15000g 30000g n=3000 0.5g n=6000/7500 0.2g 0.5g n=15000 0.1g 0.2g 0.5g n=30000 0.05g 0.1g 0.2g 0.5g VELAB, Co. 2017 Rev. 1 | Nov_2017... -
Page 9: Warranty Information
The guarantee starts from the delivery date. During the warranty period, if any repair is necessary, the customer must inform the supplier or VELAB, Co. The company or its authorized technician reserves the right to repair or replace any component at its own discretion.
