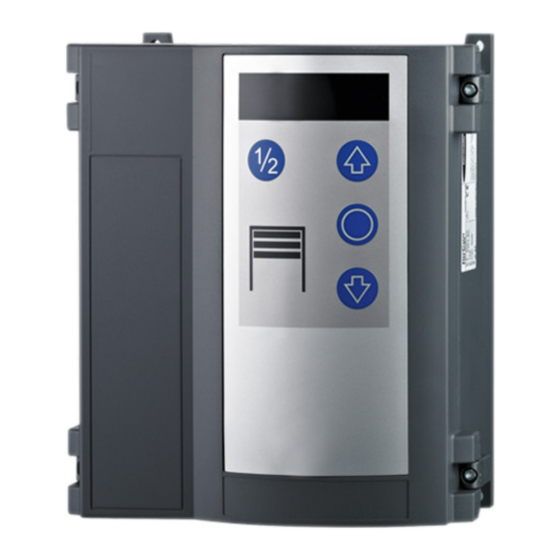

Tormatic T 100 DES Mounting And Operating Instructions
Hide thumbs
Also See for T 100 DES:
- Mounting and operating instructions (62 pages) ,
- Assembly and operating instructions manual (112 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Tormatic T 100 DES
Summary of Contents for Tormatic T 100 DES

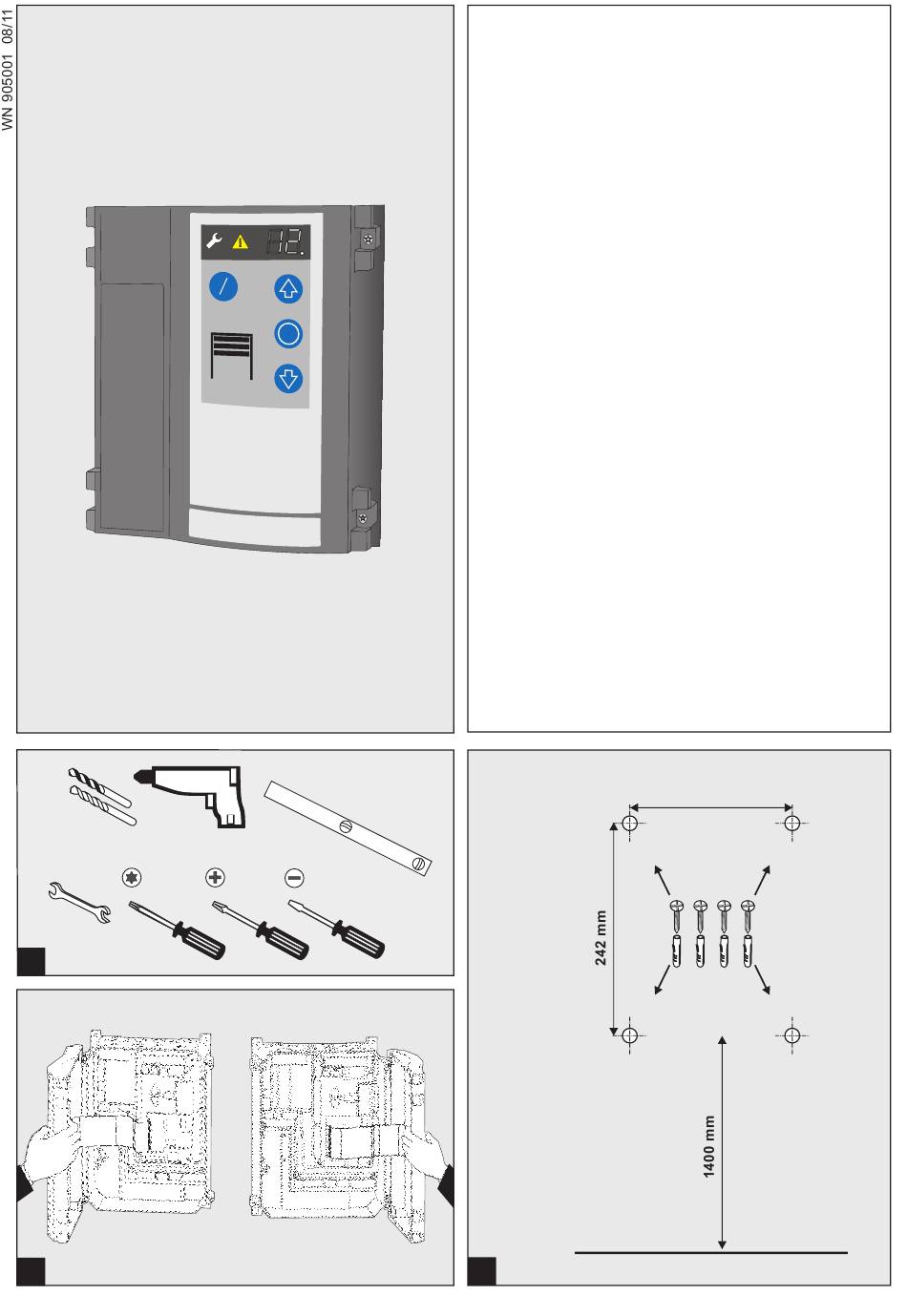

- Page 1 T 100 DES Mounting and operating instructions 182 mm T 20...
- Page 2 Overview of connections 24V DC 24V DC 200 mA 200 mA...
- Page 3 T °C 1 2 3 1.1 1.1 1.2 1.1 1.3 1.1 4 5 6 U1 V1 3 x 400V, N, PE U2 V2 1.1 1.1 1.2 1.1 1.3 1.1 U1 V1 3 x 230V, PE U2 V2 1 2 3 2- RS485 A 24V DC 4 5 6...
- Page 4 LS 5 LS 5 LS 2 LS 2 LS 2 LS 2 LS 2 LS 2 LS 2 RLK 29 +V -V NC C NO ~/0V ~/+UB 1.1 2.2 24VDC max. 230V 230V max. 2A max. 200mA max. 2A...
- Page 8 - Proof of Inspection and Maintenance of the Manufacturer: • Safety regulations Door System Novoferm tormatic GmbH When performing installation work, initial operation, - Declaration of Conf ormity and Installation Oberste-Wilms-Str. 15a maintenance jobs or testing the control unit, take...
- Page 9 Installation When using a key switch / pull button, the desired Motor 9.20: input value = U x weight / 16 kg function in menu 50 should be selected. Motor 9.15: input value = U x weight / 15 kg Required tools The results are only approximate values;...
- Page 10 Programming Overview Menu Item Enter Exit Menu- Menu Entry Entry Selection Selection point point Setting the door's top end-of-travel position Hold-open phase in seconds Change of direction (press for 5 sec.) Setting the door's bottom end-of-travel position Setting the door's half-open position Fine adjustment of top end-of-travel position 50 - 0 0...
- Page 11 Programming Overview Menu Item Enter Exit Menu- Menu- Entry Entry Selection Selection point point Key switch function (J7) Selecting the door's service intervals Impulse transmitter Open-Stop-Close no service interval Block control panel 1000 cycles Block external control elements 4000 cycles Block control panel and external control elements 8000 cycles Activating the control elements for 10 secs.
- Page 12 Maintenance / Checks Generating an impulse during the closing: Operating instructions / Door stops and opens again Description of function For your own safety, we recommend Half-opening of the door that prior to initial operation and Pressing the ½ button initiates the set half-opening of The control unit allows a variety of operating modes: whenever required - however at least the door (menu 32).This function is not available in...
- Page 13 Error Diagnosis Error State Diagnosis / Remedy Door neither opens nor closes The slack cable switch has tripped (see Fig. 8c). Door reverses / does not close Closing edge has been triggered. Check menu setting [35]. Photocell has been triggered. Check menu setting [36] Door reverses / does not close Door neither operns nor closes External safety device (emergency-STOP, slack cable, wicket door, motor's thermal...
