Summary of Contents for Anran Wireless Security NVR Series
-

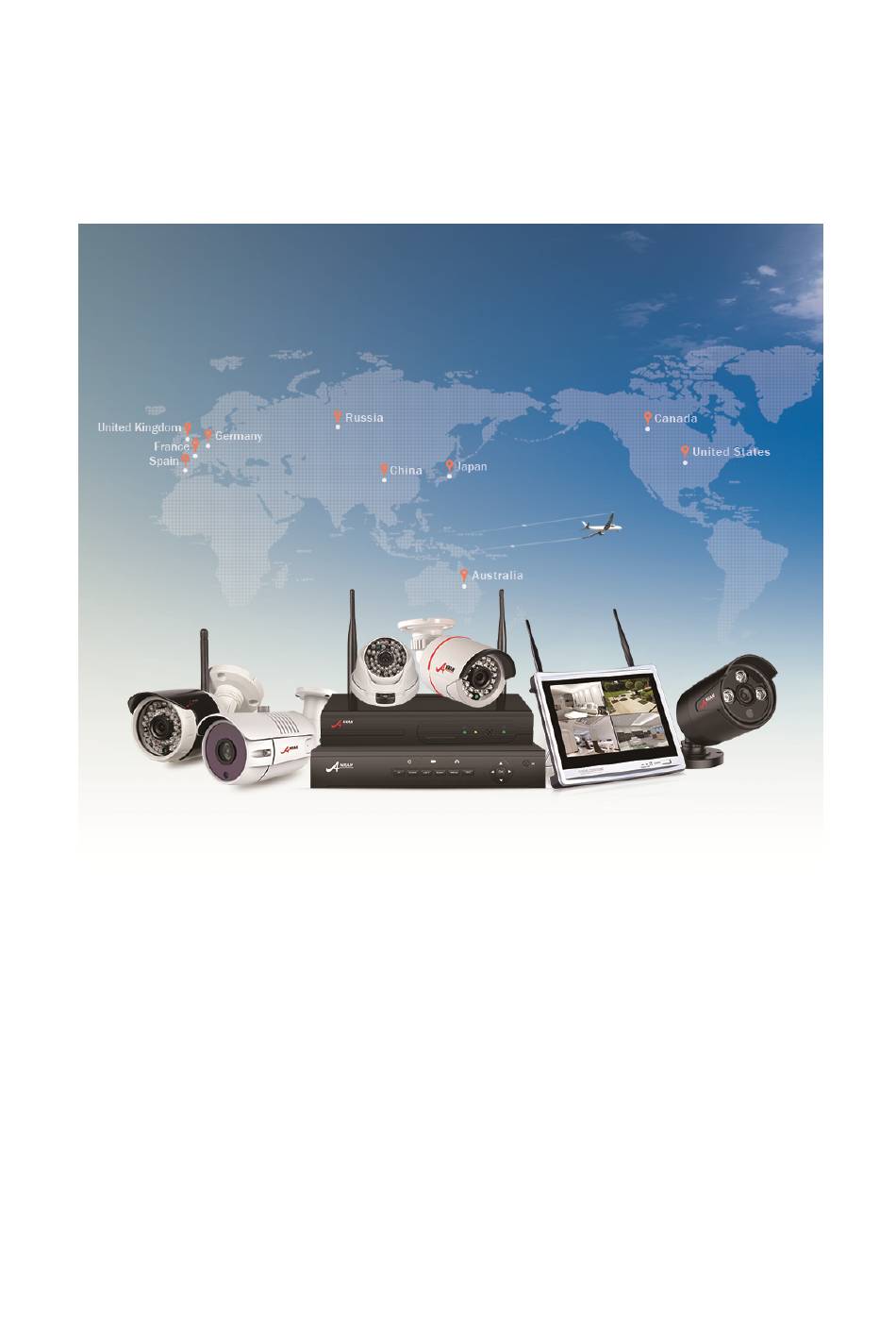

Page 1: Quick Installation Guide
Wireless Security NVR Kits Quick Installation Guide 2pcs/4pcs/6pcs/8pcs 720P/960P/1080P Wireless Security NVR Kits... -
Page 2: Table Of Contents
Content 1. Thanks--------------------------------------------------------------------------------------------------2 2. Safety tips----------------------------------------------------------------------------------------------2 3. What else do you need-----------------------------------------------------------------------------2 4. Know the hardware----------------------------------------------------------------------------------3 5. Things to check before installation--------------------------------------------------------------3 5.1 Package Includes--------------------------------------------------------------------------------3 5.2 A test run------------------------------------------------------------------------------------------3 Setup the System for Live View-------------------------------------------------------------------4 6.1 Preparation---------------------------------------------------------------------------------------4 6.2 Steps to setup the system---------------------------------------------------------------------4 Network setting -Get the system ONLINE------------------------------------------------------5 Viewing the Camera on Smart Phone-----------------------------------------------------------6... -
Page 3: Thanks
Thank you for purchasing Anran products! This is a quick user’s guide explaining how to set the system up and get it running. If you need customer support, please email us at support@anran-cctv.com. You can expect a response within 24 hours 2. -
Page 4: Things To Check Before Installation
SAME PLACE before installation. Follow the steps in section 6 to run the system. If everything works well, you can then go ahead and mount cameras to where you want. If there is any exception, please contact ANRAN support or your vendor. 6. Setup the System for Live View ①... -
Page 5: Network Setting -Get The System Online
Please connect the wireless camera system as pictured below. 1. Screw on antennas to cameras. 2. Connect the monitor/ TV to the NVR via its HDMI or VGA port 3. Connect the NVR and cameras to power (bigger 12V 2.5A or 12V 3A power adapter for NVR, smaller 12V 1A or 12V 2A for cameras). -
Page 6: Viewing The Camera On Smart Phone
Tips: To protect your privacy, please set your password at your earliest convenience. Right click→go to System Setup→System Admin→User to set password. Password should be no more than 10 letters or numbers. To learn more information about the network status, right click, go to System setup →Network setup, you will see Cloud ID is ONLINE and Network status is Healthy... - Page 7 Step4. Cloud ID: you can find it in the NVR's Network Setting User Name: default user name is "admin" Password: Default password is nothing. Leave blank. Tips: If you have already set the password for your NVR, please enter it. Remember it is the NVR system's password, not APP's password.
-
Page 8: Playback On Mobiles
② Playback on mobiles In the ARCCTV App, while viewing live video through the system, click Playback. You will enter the remote playback menu. The App will automatically playback camera1. You can switch channels by choosing the CH. -
Page 9: Viewing Camera On Computer Or Laptop By Ie
9. Viewing Camera on Computer or Laptop by IE. You can view camera on computer or Laptop by IE in locate or remotely. Step1. Open IE browser on your computer or Laptop, go to "www.dvr163.com". (If you don't have IE browser, please download it first) Step2. - Page 10 Step3. Input the following information and click “Add’’ to add the camera systems. Cloud ID: Please input your Cloud ID (find it in the NVR's Network Setting, or right bottom corner of the screen). Device set name: Name it yourself. Device user name: This is NVR system’s default user name, if you hadn't changed it, it should be admin.
-
Page 11: Record Video
Step5. When you have finished installing the plug-in, please click Camera list, then you can view your video now. 10. Record Video ① System with preinstalled hard drive Kits with preinstalled hard drive will automatically start to record videos when the system is powered on and running. -
Page 12: System Without Preinstalled Hard Drive
②System without preinstalled hard drive Please refer to FAQ#Q1 to install the SATA hard drive and format it. After it's done, the system will record automatically. ③Record Modes Default recording mode is Time Record: 24x7 continuous recording. When the HDD is full, the system will cycle recording and overwrite from earliest content. - Page 13 Record Plan, please go to System Setup→Record Setup→Record Plan, The system default is 24-hour Regular Record and Motion Record. You can set it manually by yourself. Time Record, set time periods you want the NVR to record. System Setup→Record Setup→Record Plan.
- Page 14 Motion Record. Motion Record means to record only when movement is detected. Click right→System Setup→Record Setup→Record Plan. By unselecting “Time” and selecting “Motion”, the channel will record only when motion detected. (Please refer to FAQ #Q7) Tips: "Copy to" button. When you change the settings, it applies to channel 1 only by default.
-
Page 15: Playback Video
11. Playback video In the NVR system, Choose Video playback. You will then enter the Video Playback system. You can specify channels and time and search out videos. You can select the video file you want to play back, and then double-click it to play it back. 12. -
Page 16: Device Manage
want to backup→Click Backup. Click “Yes” to backup record. Click OK when backup record succeeds. Tips: If the NVR just has one USB port, you should use an extension cable so you can plug in the mouse and your USB flash disk. 13. - Page 17 Match code the camera, you need to put the camera next to the NVR 1. Please put the camera next to the NVR, and connect the camera to the power supply 2. Right click --go to "Wifi add", as pictured below 3.
- Page 18 supply 2. Please go to "Video Manage" and delete the "IP disconnected" camera as shown below. 3. Press the camera's reset button for 13-15 seconds (the button next to the camera's power cord) and wait about 2 minutes. The camera automatically restarts. 4.
-
Page 19: Delete Channel
5. It will automatically search and add cameras 6. A few seconds later the picture will be displayed on the screen 7. Click "Exit" after all cameras are connected Then, you can unplug and move the camera to anywhere you want. When it gets power, it will automatically reconnect. -
Page 20: Change Camera Sequence
④ Change camera sequence After the cameras are mounted, users may want to change the sequence of cameras to get a better overview of the system. Simply use the UP and DOWN arrow buttons in the Device Manage so you can change the sequence 14. - Page 21 Step2. Go to NVR system, right click: System setup→Channel Setup→Video detection. Check Enable for Motion Detection→Open Alarm-mail Notice and App Alarm→Click Ok. Arming time---click this button, which you can set the alarm time. Area edit--- click this button, which you can modify the motion detection area. (Default motion detection area is the entire area a camera can see) Step3.
-
Page 22: Faqs
SMTP Server You email smtp server. For example: smtp.gmail.com Port User Name Sender e-mail address(Gmail e-mail address) to send alarm Password Sender E-mail login password Encryption Type Sender Sender e-mail address to send alarm Sendee1 Receiver e-mail address to receive alarm 15. - Page 23 The installation instructions of NVR with 12 inch LCD monitor Step2. Right click the mouse, System setup→General setup→HDD setup, then click Format and format HDD. Tips: You also can check if your system had already preinstalled the hard drive as above method.
- Page 24 The default output resolution of the NVR is 1280 x 1024, which may not be compatible with some screens. Here is how to solve it： Step1. Connect the NVR to any other screen via VGA or HDMI to see if you can enter the menu.
- Page 25 How do I set the Motion Detection for the Wireless Camera System？ Motion Record: Motion Record means to record only when movement is detected. 1. Click right button→System Setup→Record Setup→Record Plan. By unselecting “Time” and selecting “Motion”, the channel will record only when motion detected.
- Page 26 2. Go to the NVR system, right click: System setup→Channel Setup→Video detection. Check Enable for Motion Detection Channel: which camera you want to set Motion Record Detection: choose "Motion" and need ticked "Enable" Sensitivity: Sensitivity adjustment Alarm duration: The length of the alarm recording Arming time---click this button, which you can set the alarm time.
- Page 27 16. Limited Warranty Terms & Conditions 1. The standard warranty time of ANRAN is 12 months from the date of purchasing for products with the condition 'New'. Warranty on new products is one years from purchase date, unless some item that have a special stated.
- Page 28 About ANRAN ANRAN is a top brand in today’s security monitoring market. Established in 2007, with over 25000 square feet factory location in Shenzhen,China.Committed to providing easy and user-friendly video security and smart security solutions to all customers. ANRAN has been well received in a wide range of countries and areas, like the United States, the United Kingdom, Australia, European Union and much more.
