FieldPoint
FP-1300 FieldPoint Quick Start Guide
What You Need
• FP-1300 network module
to Get Set Up
• DIN rail mounting hardware
• Terminal base(s) and I/O module(s)
• 10–30 VDC power supply to power
• 11–30 VDC power supply to power
I I I I n n n n s s s s t t t t a a a a l l l l l l l l t t t t h h h h e e e e N N N N e e e e t t t t w w w w o o o o r r r r k k k k M M M M o o o o d d d d u u u u l l l l e e e e
1

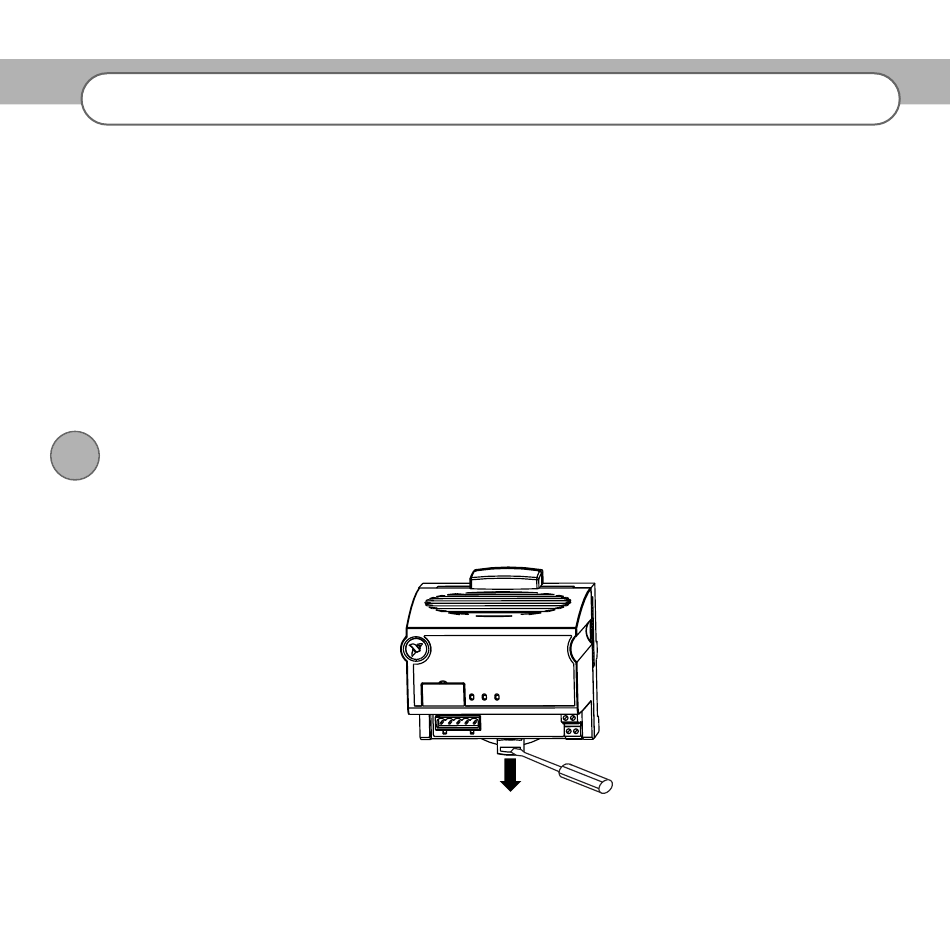

Mount the module on a DIN rail.
A. Unlock rail clip.
© National Instruments Corporation
TM
the CAN bus
the FieldPoint bus
• Accessories: shielded twisted-pair
cable, Combicon-style connector,
flathead screwdriver
• Optional accessories: two 120 Ω
resistors
• Installed and configured NI-CAN
card
1
FP-1300 Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FieldPoint FP-1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments FieldPoint FP-1300

Summary of Contents for National Instruments FieldPoint FP-1300

  • Page 1 I I I I n n n n s s s s t t t t a a a a l l l l l l l l t t t t h h h h e e e e N N N N e e e e t t t t w w w w o o o o r r r r k k k k M M M M o o o o d d d d u u u u l l l l e e e e Mount the module on a DIN rail. A. Unlock rail clip. © National Instruments Corporation FP-1300 Quick Start Guide...
  • Page 2 N N N N O O O O T T T T E E E E Do not use spliced DIN rails. Use only a single DIN rail. B. Hook lip on back of module onto top of DIN rail, press down, and snap into place. C.
  • Page 3 C C C C A A A A U U U U T T T T I I I I O O O O N N N N Connect the terminal bases to the network module before applying power to the module. Do not connect or disconnect terminal bases while power is applied to the network module. A. Unlock rail clip. B. Press base onto rail. © National Instruments Corporation FP-1300 Quick Start Guide...
  • Page 4 C. Slide into position and lock the rail clip. Be careful not to bend any pins. D. Repeat for each terminal base, up to nine for each network module in most cases. You can use one or two extender cables (which you can order separately) if the FieldPoint bank is too long for the available space.
  • Page 5 A. Align slots on the module with the guide rails on the base, and press the module onto base until the terminal base latch locks the module in place. B. Repeat for each I/O module. © National Instruments Corporation FP-1300 Quick Start Guide...
  • Page 6 C C C C o o o o n n n n f f f f i i i i g g g g u u u u r r r r e e e e t t t t h h h h e e e e A A A A r r r r b b b b i i i i t t t t r r r r a a a a t t t t i i i i o o o o n n n n I I I I D D D D The FP-1300 ships with the standard base arbitration ID 0x0.
  • Page 7 C. Connect a 10–30 VDC power supply to the V+ and V– terminals. V+ and V– supply power to the CAN transceivers on the FP-1300. D. Connect the other end of the CAN cable to a connector on the CAN network. © National Instruments Corporation FP-1300 Quick Start Guide...
  • Page 8 Terminating the CAN Network If you connect the FP-1300 to a multiple-device CAN network that is already terminated, go to the Wire Power to the FieldPoint System section next. If you connect the FP-1300 to a single- device CAN network, you need to terminate the network. To terminate the CAN network, follow these steps: A.
  • Page 9 C C C C A A A A U U U U T T T T I I I I O O O O N N N N Cascading power defeats isolation between the cascaded modules. © National Instruments Corporation...
  • Page 10 C C C C A A A A U U U U T T T T I I I I O O O O N N N N Cascading power from neighboring bases or network modules defeats isolation between cascaded modules. Separate Power Supply (Recommended) No External...
  • Page 11 N N N N O O O O T T T T E E E E Either the self-powered sensor or the power supply should be floating (not connected to earth ground). © National Instruments Corporation FP-1300 Quick Start Guide...
  • Page 12 P P P P o o o o w w w w e e e e r r r r O O O O n n n n t t t t h h h h e e e e F F F F i i i i e e e e l l l l d d d d P P P P o o o o i i i i n n n n t t t t S S S S y y y y s s s s t t t t e e e e m m m m C C C C A A A A U U U U T T T T I I I I O O O O N N N N Terminal bases must be connected to the FP-1300 before power is applied to the FP-1300.
  • Page 13 N N N N O O O O T T T T E E E E The FP-1300 software requires NI-CAN 2.0 (for configuration) which is included on the CD and is installed during the installation process. © National Instruments Corporation FP-1300 Quick Start Guide...

  • Page 14: Save The Configuration

    C C C C o o o o n n n n f f f f i i i i g g g g u u u u r r r r e e e e t t t t h h h h e e e e F F F F P P P P - - - - 1 1 1 1 3 3 3 3 0 0 0 0 0 0 0 0 U U U U s s s s i i i i n n n n g g g g t t t t h h h h e e e e F F F F P P P P - - - - 1 1 1 1 3 3 3 3 0 0 0 0 0 0 0 0 S S S S o o o o f f f f t t t t w w w w a a a a r r r r e e e e Follow these steps to configure the FP-1300 using the FP-1300 software.
  • Page 15 Reset»Cycle Power. N N N N O O O O T T T T E E E E Refer to the FP-1300 User Manual for more information on the FP-1300 LED indicators. © National Instruments Corporation FP-1300 Quick Start Guide...

  • Page 16: Maximum Cabling Distance

    FP-1300 Specifications Installation Terminal wiring....16–26 AWG copper conductor wire with 7 mm (0.275 in.) strip length Torque for screw terminals ..0.5–0.6 N · m (4.4–5.3 lb · in.) Network Network interface.

  • Page 17: Electromagnetic Compatibility

    N N N N O O O O T T T T E E E E Refer to the Declaration of Conformity (DoC) for any additional compliance information. To obtain the DoC for an NI product, click Declarations of Conformity Information at ni.com/hardref.nsf/. © National Instruments Corporation FP-1300 Quick Start Guide...

  • Page 18: Mechanical Dimensions

    Mechanical Dimensions 107.19 mm [4.22 in.] 109.5 mm [4.31 in.] 91.44 mm [3.60 in.] FP-1300 Quick Start Guide ni.com...
  • Page 19 46 0 8 587 895 00, Switzerland 41 56 200 51 51, Taiwan 886 2 2528 7227, United Kingdom 44 0 1635 523545 FieldPoint™, LabVIEW™, National Instruments™, NI™, NI-CAN™, and ni.com™ are trademarks of National Instruments Corporation. Product and company names mentioned herein are trademarks or trade names of their respective companies.
