Page 1: Battery Charger

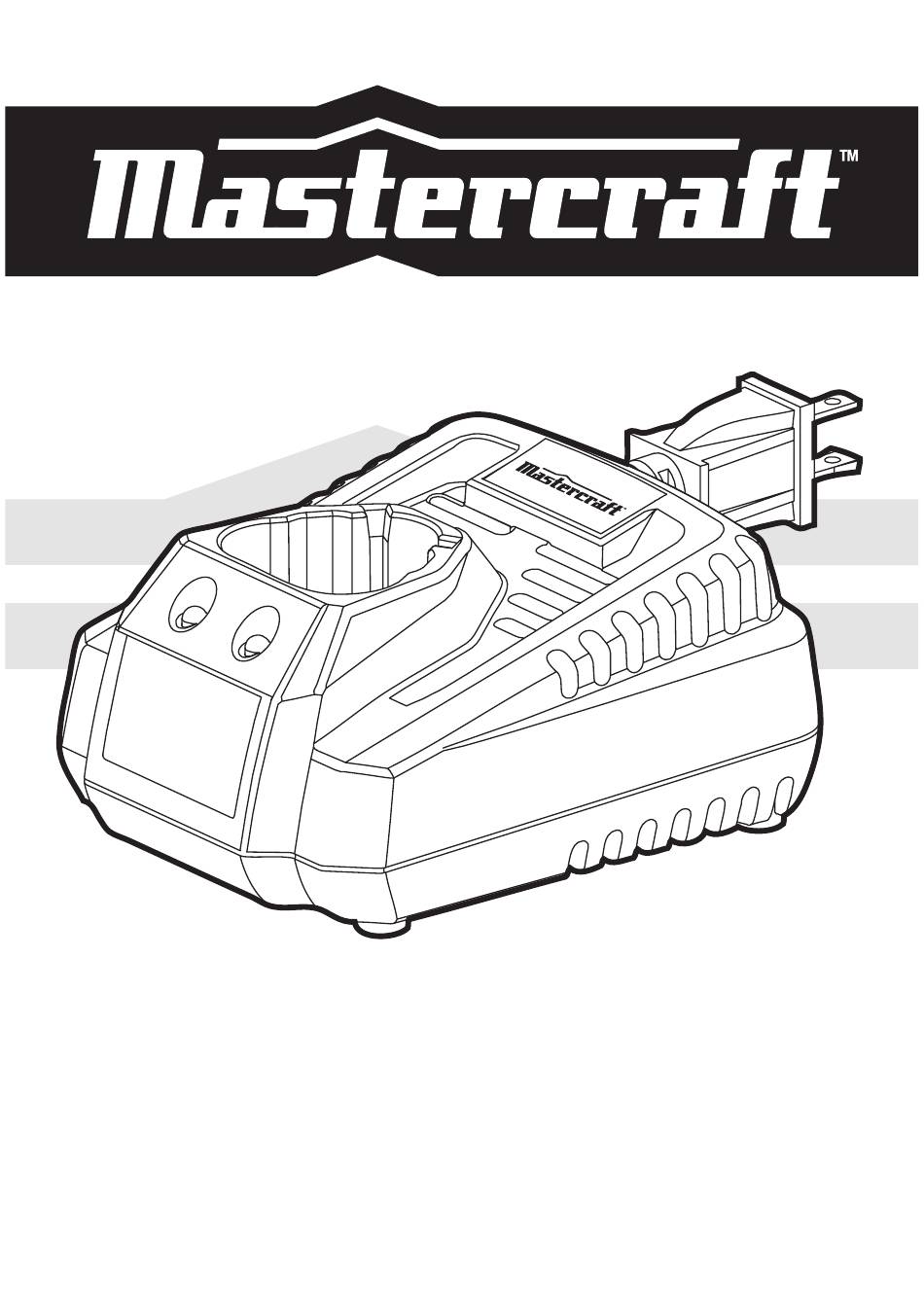

INSTRUCTION MANUAL 12V max* LITHIUM-ION BATTERY CHARGER 054-1260-6... - Page 2 Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
- Page 3 TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–8 DESCRIPTION OPERATING INSTRUCTIONS 10–12 MAINTENANCE TROUBLESHOOTING PARTS LIST WARRANTY 16–17 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
- Page 4 CHARGER INPUT 120 V ~ 60 Hz AC only OPTIMUM CHARGING BATTERY 054-1259-2 CHARGER WEIGHT 12 oz (0.35 kg) OPTIMUM CHARGING TEMPERATURE 0-40°C (32–104°F) 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
-
Page 5: General Power Tool Safety Warnings
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool. 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... -
Page 6: Work Area Safety
Failure to replace parts could result in serious personal injury. Specific safety guidelines for charger WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... - Page 7 • The cord is properly wired and in good electrical condition. The size is large enough for A/C ampere rating of charger as specified below: Cord Length (Feet) 100' Cord Size (AWG) NOTICE: AWG = American Wire Gauge 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
- Page 8 ....No load speed ....Class II Construction …/min ... Revolutions per minute ....Grounding terminal BPM ....Beats per minute ....WARNING – To reduce the risk of injury, user must read instruction manual. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
-
Page 9: Package Contents
If any part of the charger is missing or damaged, do not plug the charger to the power supply until the part has been repaired or replaced. Failure to heed this warning could result in serious injury. 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... -
Page 10: Know Your Charger
LED indicator Electrical contacts Before attempting to use this tool, become familiar with all of its operating features and safety requirements. For optimum performance and safety, read the following operating instructions carefully before using. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... - Page 11 LED on the charger will be on. The flickering red light indicates defective battery or bad connection between the battery and the charger. 6. If left on the charger, the battery pack will fully charge, but will not overcharge. 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
-
Page 12: Defective Battery
2. If a different battery pack charges normally, dispose of the defective battery pack (see Maintenance section). 3. If a different battery pack also indicates “defective,” the charger may be defective. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... -
Page 13: Battery Charging
NOTE: The charger may become warm with several continuous charge cycles. This is part of the normal operation of the charger. Charge in a well-ventilated area. 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... - Page 14 Use only accessories that are recommended for this charger by the manufacturer. Accessories that may be suitable for one tool may become hazardous when used with another tool. WARNING! To ensure safety and reliability, all repairs should be performed by a qualified service technician. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
- Page 15 The battery pack is not connected to the Attach the battery pack to the charger again charger The battery pack isn’t charging The charger is not attached to an electrical Attach the charger plug to an electrical outlet outlet 12 V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
-
Page 16: Exploded View
5610012000 Tapping Screw 4810002000 Power Cord & Plug 5610218000 Screw 4890444000 PCB Assembly If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6... - Page 17 This Mastercraft product is guaranteed for two (2) years from the date of original retail purchase against defects in materials and workmanship, except for the following components a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
-
Page 18: Additional Limitations
The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. IMPORTED BY MASTERCRAFT CANADA TORONTO, CANADA M4S 2B8 12V max* LITHIUM-ION BATTERY CHARGER - 054-1260-6...
