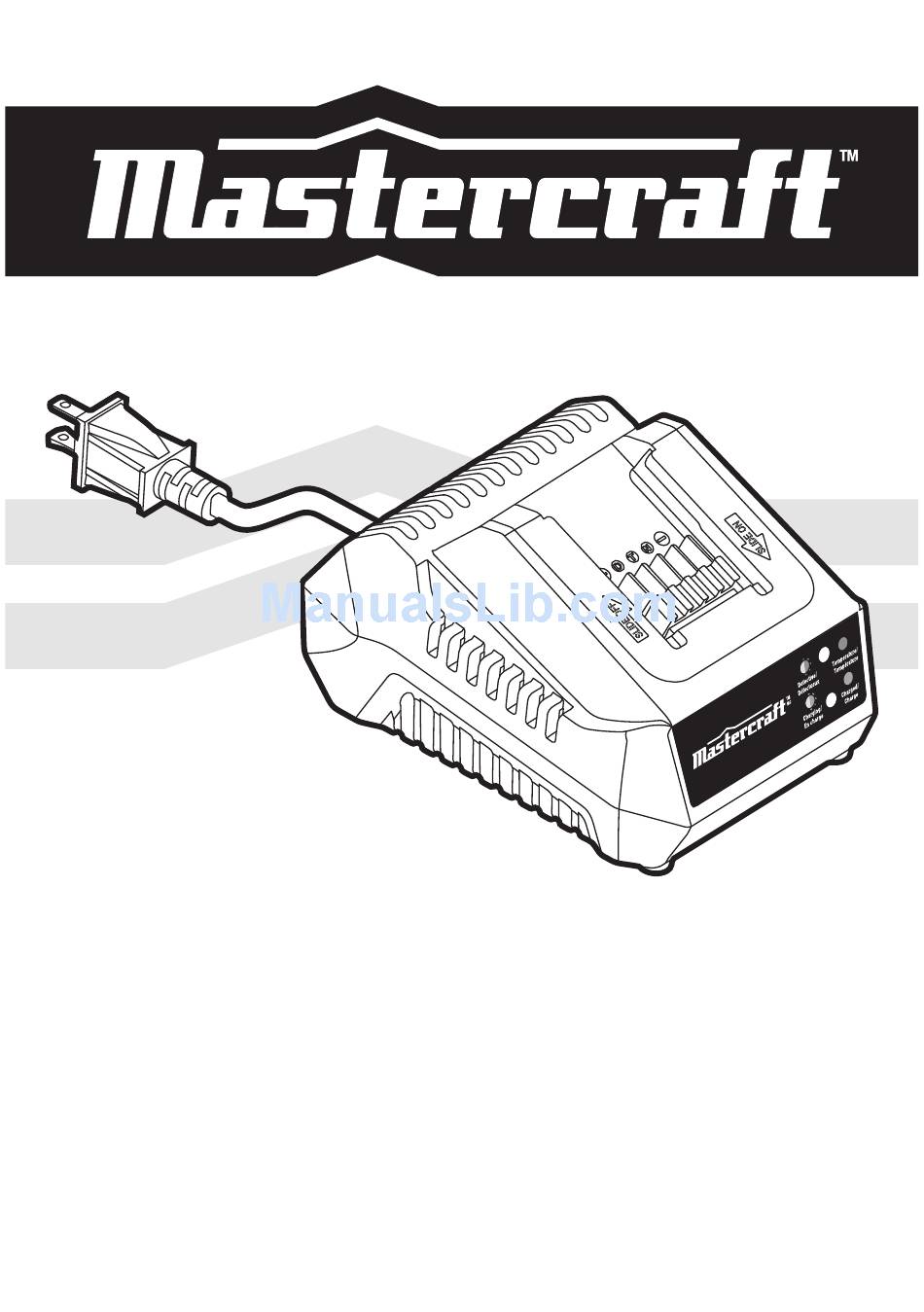

INSTRUCTION MANUAL
20V max* LITHIUM-ION

BATTERY CHARGER

054-3126-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20V max* LITHIUM-ION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterCraft 20V max* LITHIUM-ION

Summary of Contents for MasterCraft 20V max* LITHIUM-ION

  • Page 1: Battery Charger

    INSTRUCTION MANUAL 20V max* LITHIUM-ION BATTERY CHARGER 054-3126-6...
  • Page 2 Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 3 TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–8 DESCRIPTION OPERATING INSTRUCTIONS 10–12 MAINTENANCE TROUBLESHOOTING PARTS LIST WARRANTY 16–17 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 4 CHARGER INPUT 120V ~ 60Hz 45W CHARGING TIMES FOR BATTERIES 054-3124-0: 60 min 054-3125-8: 120 min CHARGER WEIGHT 1 lb (0.45kg) OPTIMUM CHARGING TEMPERATURE RANGE 0-40°C (32-104°F) 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...

  • Page 5: General Power Tool Safety Warnings

    Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 6 • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 7 • When the battery pack is not in use, keep it away from other metal objects, such as paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...

  • Page 8: Important Safety Instructions

    Model 054-3126-6. • Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product using battery. • CAUTION – To reduce risk of injury, charge only Mastercraft 054-3124-0, 054-3125-8 20V ® Rechargeable Battery Packs. Other types of battery packs may burst, causing injury to persons and damage.
  • Page 9 • Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possible injury. Contents Battery Charger, Instruction Manual 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 10 Know your 20V max* lithium-ion battery charger Description Description LED lights Air vents Electric contacts Before attempting to use the charger, familiarize yourself with all of its operating features and safety requirements. WARNING! Do not allow familiarity with the charger to cause carelessness. Remember that one careless moment is enough to cause severe injury.
  • Page 11 5. The green LED light will flash continuously during normal charging. 6. After charging is complete, the green LED on the charger will remain on. 7. The battery pack will fully charge, but will not overcharge, if left on the charger. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...

  • Page 12: Battery Charging

    3. If a different battery pack also indicates “defective,” the charger may be defective. Battery charging If the battery pack is within the normal temperature range, the green LED will begin flashing and the red LED will be off. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 13 NOTICE: The battery pack will fully charge, but will not overcharge, if left on the charger. NOTICE: Charger may warm with several continuous charge cycles. This is part of the normal operation of the charge. Always charge in a well-ventilated area. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 14 WARNING! Always wear safety goggles or safety glasses with side shields when using compressed air to clean the tool. If the operation is dusty, also wear a dust mask. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 15 The battery pack is not connected to the Attach the battery pack to the charger again charging charger If the problem remains unsolved after performing the checks described above, call the toll- free helpline at 1-800-689-9928. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 16 Tapping Screw 5610218000 Screw 5610016000 Tapping Screw 10 4810002000 Power Cord & Plug If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 17 This Mastercraft product is guaranteed for two (2) years from the date of original retail purchase against defects in materials and workmanship, except for the following components a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 18 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. IMPORTED BY MASTERCRAFT CANADA TORONTO, CANADA M4S 2B8 20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6...
  • Page 21 INSTRUCTION MANUAL 20V max* (1.3 AH) LITHIUM-ION RECHARGEABLE BATTERY 054-3124-0...
  • Page 22 Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 23 TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–6 DESCRIPTION OPERATING INSTRUCTIONS 8–10 MAINTENANCE 11–12 PARTS LIST WARRANTY 14–15 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 24 20V max* DC CAPACITY 1.3 Ah CHARGE TIME 60 min. BATTERY PACK WEIGHT 15 oz (0.43 kg) BATTERY CHARGER 054-3126-6 5331 *Maximum battery voltage without workload; with workload nominal voltage is 18V. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 25 Power tools create sparks which may ignite the dust or fumes. • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 26 Service • Have your battery pack serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 27 • Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend someone this tool, lend them these instructions also to prevent misuse of the product and possible injury. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 28 Know your lithium-ion rechargeable battery Description Description Electrical Contacts Fuel Gauge Battery-Release Button Before using this product, familiarize yourself with all operating features and safety rules. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 29 LED lights when it is completely discharged. When this happens, remove the tool from the work piece, remove the battery pack and charge the battery pack as needed. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 30 To signal the end of charge, power to the tool will drop quickly. Charge the battery pack as needed. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 31 A fully discharged battery pack will charge about 60 minutes in a surrounding temperature between 0°C (32° F) and 40°C (104° F). 1. Charge the Lithium-Ion battery pack with the correct charger (Mastercraft 054-3126-6, 5331). 2. Connect the charger to a power supply.
  • Page 32 • Every six months of storage, fully charge the Lithium-Ion battery pack. • Exterior may be cleaned with a cloth or soft non-metallic brush. Please see page 8 for disposal instructions. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 33 Also, never touch both terminals with metal objects and/or body parts, as short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 34 11 5610010000 Tapping Screw 06 3126467000 Battery-Release Button 12 5610241000 Screw If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
  • Page 35 This Mastercraft product is guaranteed two (2) years from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period, and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
  • Page 36 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. IMPORTED BY MASTERCRAFT CANADA TORONTO, CANADA M4S 2B8 20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0...
