Table of Contents

Installation Instructions for Mincey Marble
Manufacturing's Arezzo Bypass Barn Door Shower Enclosures

MATERIALS / TOOLS NEEDED CHECKLIST

ENCLOSURE SYSTEM INSTALLATION
ATTENTION: Prior to starting the installation, please read through these instructions. This
will help avoid any unneccesary breakage. Any breakage due to handling or installing this
enclosure system is the responsibility of the installer and is not covered under the Mincey
Warranty. Mincey recommends that two people are used to install this shower enclosure
system due to the weight and fragility of the glass panels. Mincey also recommends that
you protect the glass, especially the bottoms, and the shower pan during installation.
These installation instructions apply to the Mincey Arezzo Bypass Barn Door Shower Enclosure System. In these
instructions we are going to use an example with a 60" wide shower. All Drawings Are Not To Scale.
Tools are listed below. The contents of the Hardware Kit are listed below. The Parts Diagram is on the following
page. Before you begin the installation, make sure that all of the pertinent surfaces are clean and free of dust,
debris and any shavings. After you perform any drilling, you will want to make sure the surfaces are clean again
- this includes the Shower Pan and the Shower Panel Walls.

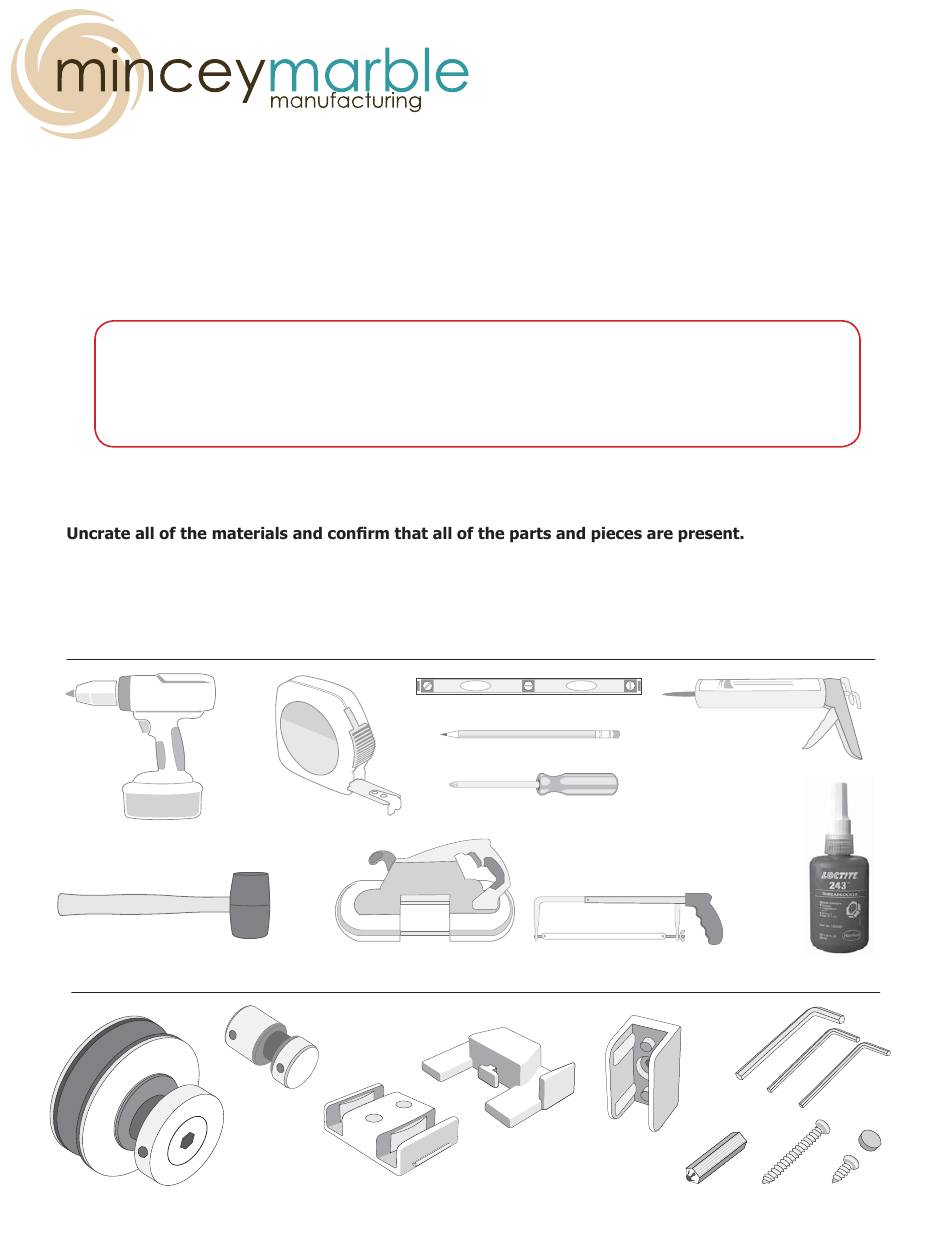

MATERIALS / TOOLS NEEDED
DRILL (CORDED OR CORDLESS),
5/16" MASONRY DRILL BIT,
1/8" METAL DRILL BIT
RUBBER MALLET
INCLUDED IN THE HARDWARE KIT
GLASS DOOR
RETENTION
PIECES
QTY: 4
ROLLERS QTY: 4
, inc.
PHILLIPS HEAD SCREWDRIVER
TAPE MEASURE
CENTER DOOR
GUIDE QTY: 1
LEVEL
PENCIL
PORTABLE BAND SAW
(PREFERRED METHOD)
- OR -
HACK SAW
END DOOR
BUMPERS
GUIDES QTY: 2
QTY: 8
Mincey Marble Mfg., Inc.
4321 Browns Bridge Road
Gainesville, GA 30504
Ph: 800.533.1806
Fx: 770.531.0935
www.minceymarble.com
The Required
CAULK GUN,
100% SILICONE
LOCTITE
BLUE 243
THREADLOCKER
ALLEN
WRENCHES
WALL
1 1/4"
7/16"
SCREWS
ANCHORS
SCREWS
QTY: 8
QTY: 8
QTY: 8
3/16"
1/8"
QTY: 2
BUMPER
SCREW
COVERS
QTY: 8
