Mincey Marble Manufacturing Brunswick Bypass Installation Instructions Manual

Shower enclosures
Hide thumbs

Advertisement

Table of Contents

Installation Instructions for Mincey Marble
Manufacturing's Brunswick Bypass Shower Enclosures

MATERIALS / TOOLS NEEDED CHECKLIST

ATTENTION: Prior to starting the installation, please read through these instructions. This will
help avoid any unneccesary breakage. Any breakage due to handling or installing this enclosure
system is the responsibility of the installer and is not covered under the Mincey Warranty. Mincey
recommends that two people are used to install this shower enclosure system due to the weight
and fragility of the glass panels. Mincey also recommends that you protect the glass, especially the
bottoms, and shower pan during installation. If your doors have frosted glass, the frosted side of
the glass goes to the outside of the shower.
These installation instructions apply to the Mincey Brunswick Bypass Shower Enclosure System. In these
instructions we are going to use an example with a 60" wide shower. All Drawings Are Not To Scale.
Required Tools are listed below. The contents of the Hardware Kit are listed below. The Parts Diagram is on the
following page. Before you begin the installation, make sure that all of the pertinent surfaces are clean and free
of dust, debris and any shavings. After you perform any drilling, you will want to make sure the surfaces are
clean again - this includes the Shower Pan and the Shower Panel Walls.

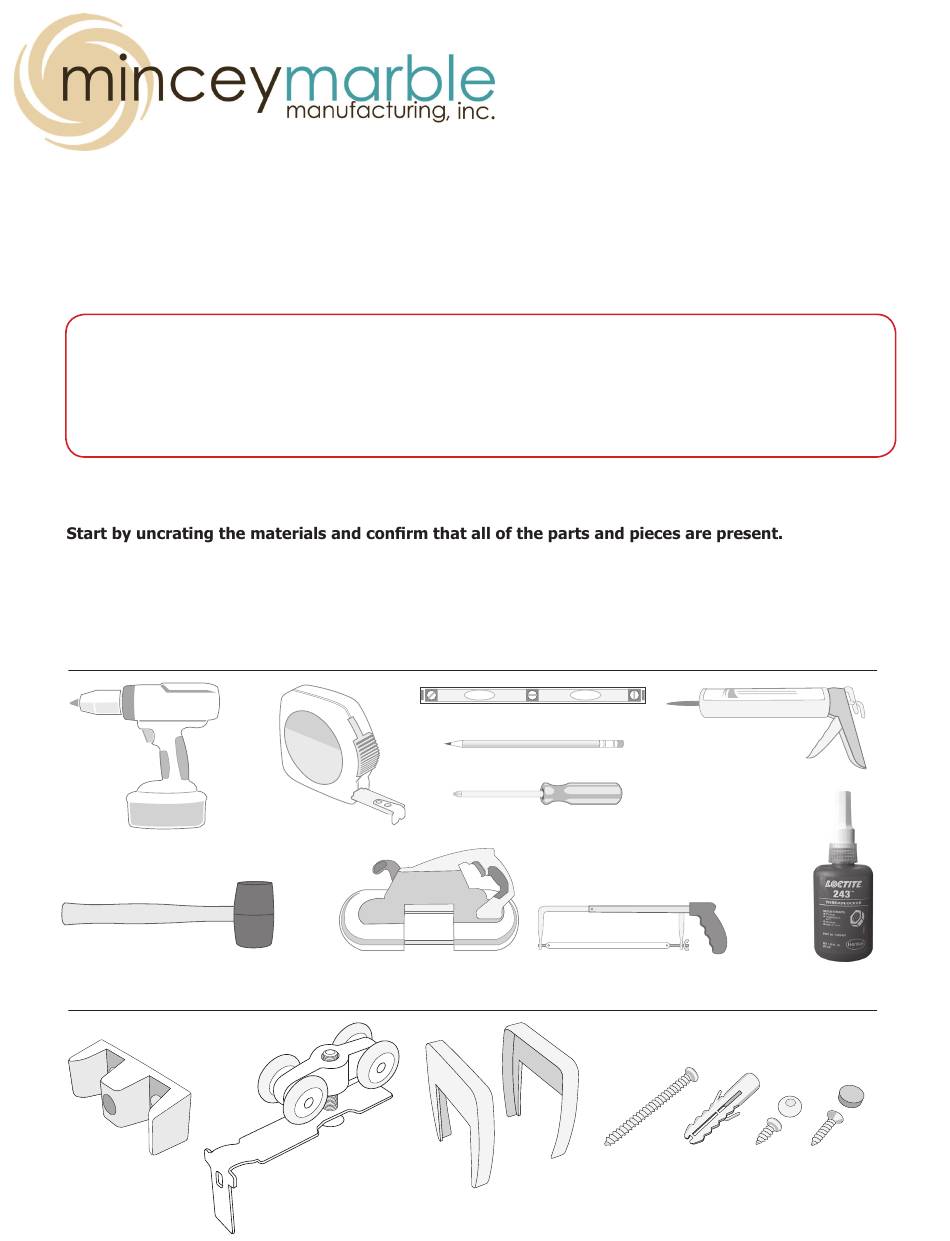

MATERIALS / TOOLS NEEDED
DRILL (CORDED OR CORDLESS),
5/16" MASONRY DRILL BIT,
1/8" METAL DRILL BIT
RUBBER MALLET
INCLUDED IN THE HARDWARE KIT
RUBBER WALL
CHANNEL BUMPERS,
QTY: 6
TAPE MEASURE
DOOR ROLLERS
CHROME
QTY: 4
HEADER END CAPS, QTY: 2
LEVEL
PENCIL
PHILLIPS HEAD SCREWDRIVER
PORTABLE BAND SAW
(PREFERRED METHOD)
- OR -
HACK SAW
1 3/4" PAN
HEAD
SCREWS,
QTY: 6
Mincey Marble Mfg., Inc.
1940 New Harvest Road
Gainesville, GA 30507
Ph: 800.533.1806
Fx: 770.531.0935
www.minceymarble.com
The
CAULK GUN,
100% SILICONE
LOCTITE
BLUE 243
THREADLOCKER
CLEAR
SCREW
COVERS
QTY: 6
3/8" PAN
1/2" FLAT
WALL
HEAD
HEAD
ANCHORS
QTY: 6
SCREWS,
SCREWS,
QTY: 6
QTY: 6
GRAY
SCREW
COVERS
QTY: 6
