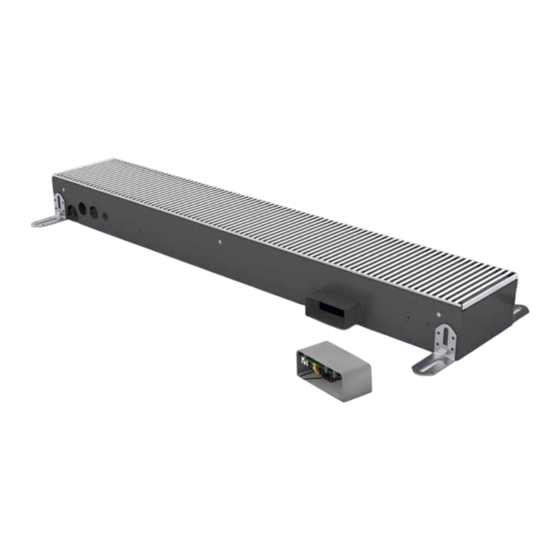

Jaga Clima Canal JDPC.002 Installation & User Manual
Dynamic product controller, heating and cooling
Hide thumbs
Also See for Clima Canal JDPC.002:
- User manual (28 pages) ,
- Installation instructions manual (48 pages)
Advertisement
Quick Links
JDPC.002
Jaga Dynamic Product Controller
• 1 JDPC.002 per unit, otherwise the warranty is no longer valid.
Installation / user guide
Jaga Dynamic Product Controller Clima Canal
Please read these user instructions carefully to ensure correct use of the product.
Advertisement
Related Manuals for Jaga Clima Canal JDPC.002
Summary of Contents for Jaga Clima Canal JDPC.002

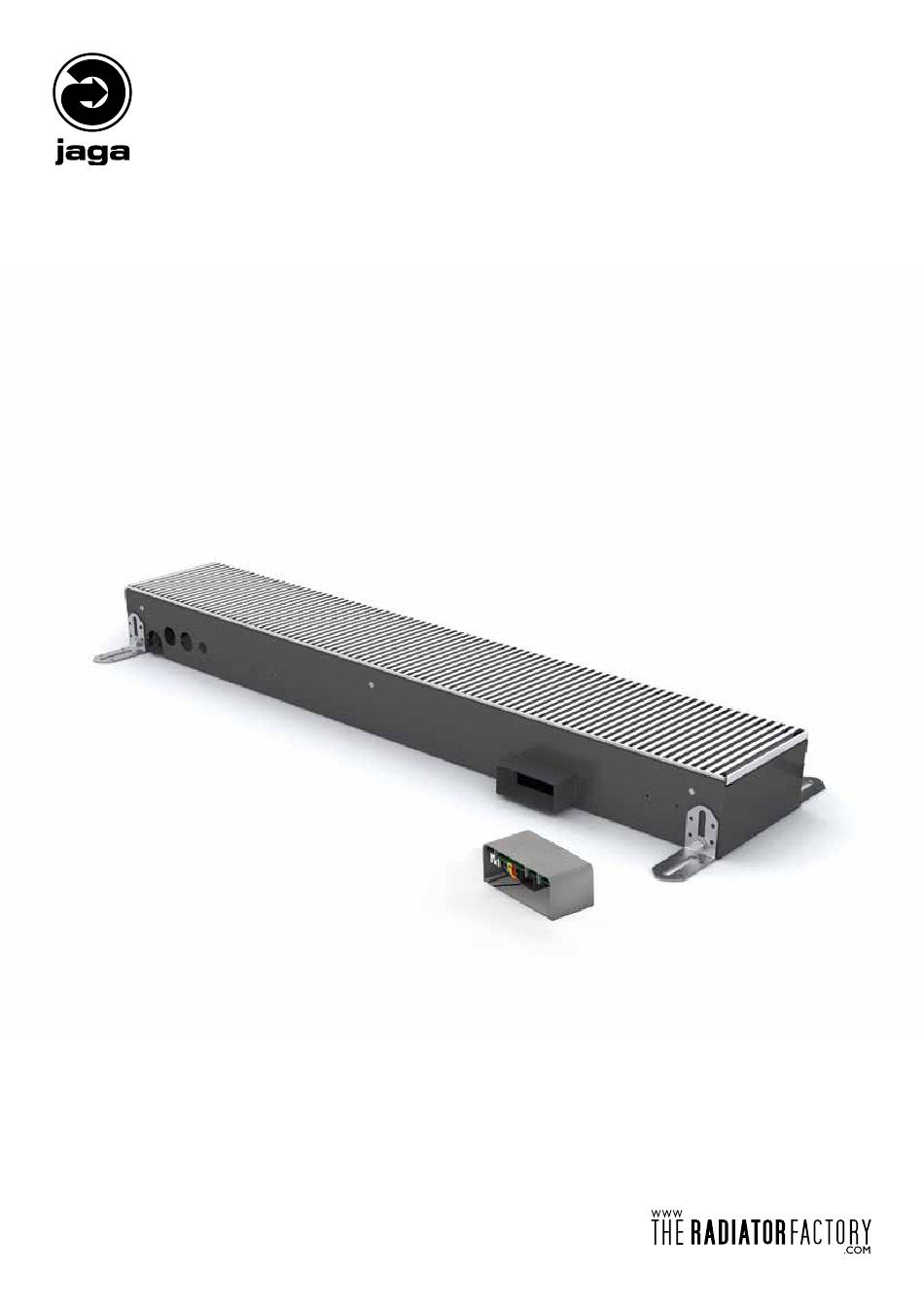

- Page 1 JDPC.002 Jaga Dynamic Product Controller • 1 JDPC.002 per unit, otherwise the warranty is no longer valid. Installation / user guide Jaga Dynamic Product Controller Clima Canal Please read these user instructions carefully to ensure correct use of the product.
- Page 2 Clima Canal JDPC.CC24 / JDPC.CC25 Dynamic Product Controller, heating, heating cooling. With water-temperature sensor With 3-modes control panel Basic settings Connecting Basic settings JDPC.002: MODE 2 Configuration Code: see the product label on the device Ι Ι Ι Not connected BLUE -24V RED +24V Heating and...
- Page 3 Clima Canal JDPC.CC24 Dynamic Product Controller, heating Put the controller in the desired mode with the control panel Press button until the desired mode is reached MODE MODE (± 3 sec.) verwarmen chauffer Heizung heating MODE éteinte MODE MODE How to use •...
- Page 4 Clima Canal JDPC.CC71 / JDPC.CC72 Dynamic Product Controller, heating, heating cooling. Controlled with external 0-10V control signal With water-temperature sensor With 3-modes control panel Basic settings Connecting Fan Speed Basic settings JDPC.002: MODE 7 Configuration Code: see the product label on the device Ι...
- Page 5 Clima Canal JDPC.002 Dynamic Product Controller: Table 1 / 2 / 3 Adjusting Fan speed SPEED %: 95 100 (MIN) The blue LED blinks fast The red LED blinks fast (MAX) Adjusting the Fan speed: • short press “-” or “+” to adjust the speed of the motor(s).
- Page 6 If you have any questions or complaints, please contact your supplier or installer. The copyright of these instructions is the property of the company Jaga International. 27200.24100022 - juli 17, 2017 4:03 PM - Please follow these instructions carefully in order to allow for Jaga N.V.
- Page 7 Notes...
- Page 8 Jaga N.V. Verbindingslaan 16 B-3590 Diepenbeek Tel.: +32 (0)11 29 41 11 E-mail: info@jaga.be www.jaga.be 27200.24100022 - juli 17, 2017 4:03 PM - Jaga N.V.
