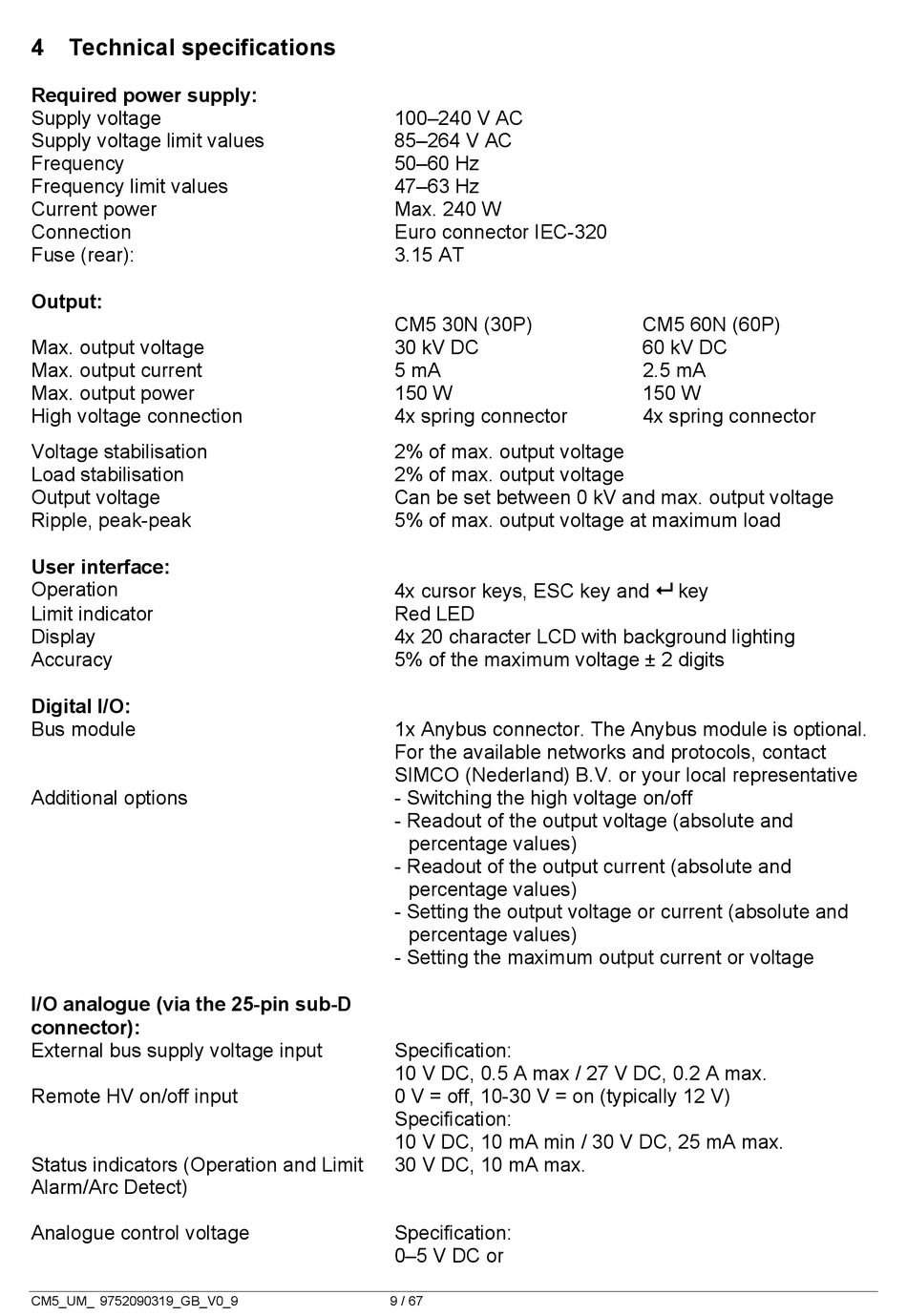

Technical specifications

Required power supply:
Supply voltage
Supply voltage limit values
Frequency
Frequency limit values
Current power
Connection
Fuse (rear):
Output:
Max. output voltage
Max. output current
Max. output power
High voltage connection
Voltage stabilisation
Load stabilisation
Output voltage
Ripple, peak-peak
User interface:
Operation
Limit indicator
Display
Accuracy
Digital I/O:
Bus module
Additional options
I/O analogue (via the 25-pin sub-D
connector):
External bus supply voltage input
Remote HV on/off input
Status indicators (Operation and Limit
Alarm/Arc Detect)
Analogue control voltage
CM5_UM_ 9752090319_GB_V0_9
100–240 V AC
85–264 V AC
50–60 Hz
47–63 Hz
Max. 240 W
Euro connector IEC-320
3.15 AT
CM5 30N (30P)
30 kV DC
5 mA
150 W
4x spring connector
2% of max. output voltage
2% of max. output voltage
Can be set between 0 kV and max. output voltage
5% of max. output voltage at maximum load
4x cursor keys, ESC key and
Red LED
4x 20 character LCD with background lighting
5% of the maximum voltage ± 2 digits
1x Anybus connector. The Anybus module is optional.
For the available networks and protocols, contact
SIMCO (Nederland) B.V. or your local representative
- Switching the high voltage on/off
- Readout of the output voltage (absolute and
percentage values)
- Readout of the output current (absolute and
percentage values)
- Setting the output voltage or current (absolute and
percentage values)
- Setting the maximum output current or voltage
Specification:
10 V DC, 0.5 A max / 27 V DC, 0.2 A max.
0 V = off, 10-30 V = on (typically 12 V)
Specification:
10 V DC, 10 mA min / 30 V DC, 25 mA max.
30 V DC, 10 mA max.
Specification:
0–5 V DC or
9 / 67
CM5 60N (60P)
60 kV DC
2.5 mA
150 W
4x spring connector

key
