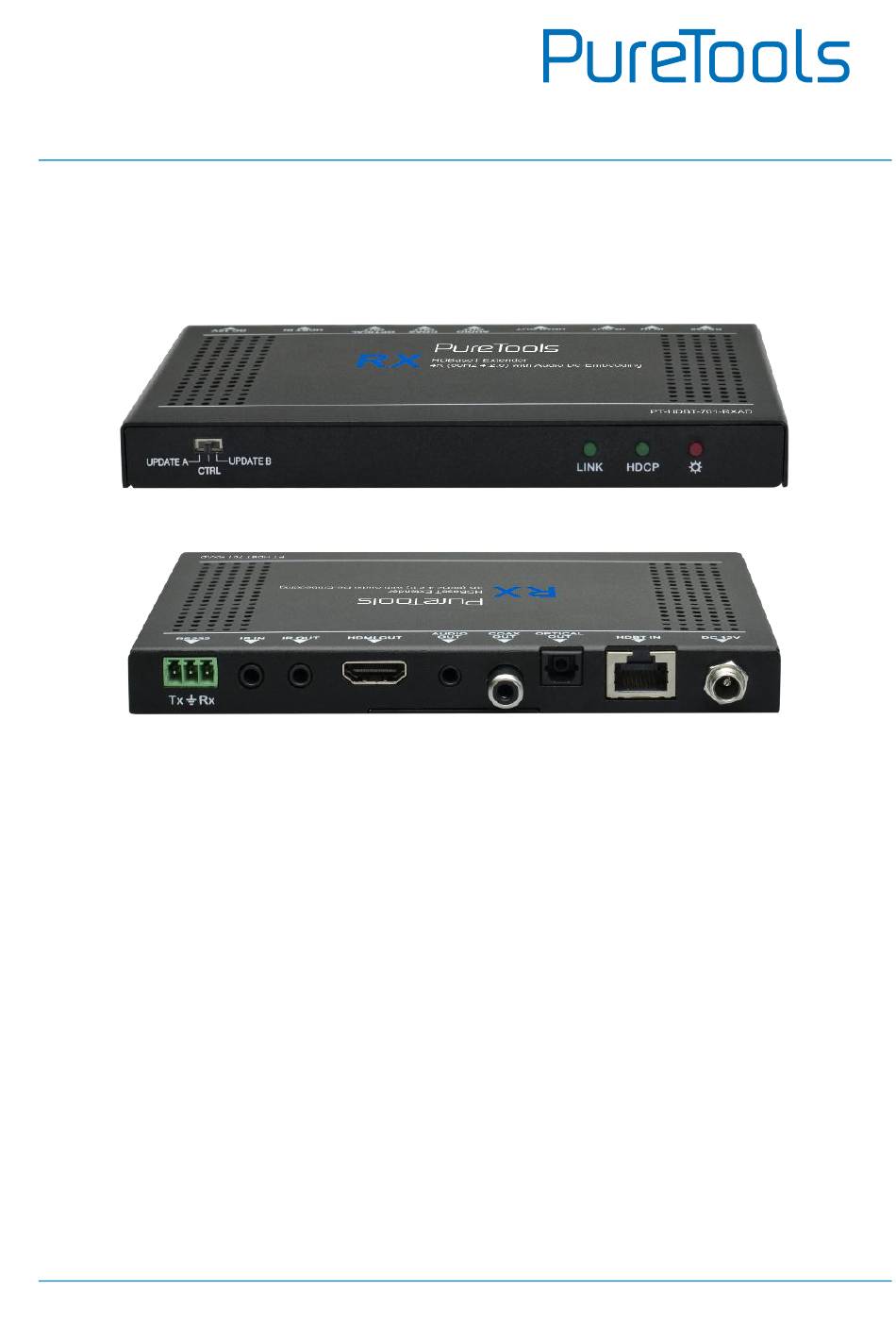

- Page 1 User Manual PT-HDBT-701-RXAD User Manual HDBaseT Receiver 4K (60Hz 4:2:0) with Audio De-embedding Model PT-HDBT-701-RXAD Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-701-RXAD Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-701-RXAD complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
-
Page 4: Safety Precautions
User Manual PT-HDBT-701-RXAD SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 5: Package Content
User Manual PT-HDBT-701-RXAD Introduction to PT-HDBT-701-RXAD The PT-HDBT-701-RXAD is an Ultra-thin HDBaseT Receiver designed with audio de-embedded outputs. It receives 4K/1080p HDMI signal via CAT5e/CAT6a cable from HDBaseT Transmitter or Matrix Switcher at 40m/70m. It supports unidirectional PoH function, the receiver can be powered by HDBaseT Transmitter or Matrix Switcher. -
Page 6: Panel Description
User Manual PT-HDBT-701-RXAD Panel Description Front Panel UPDATE B UPDATE A LINK HDCP CTRL Name Description CTRL: RS232 pass-through control mode; UPDATE A: Update Valens IC program, connect a PC to the RS232 MODE RS232 port, and then double-click the update file (.bat). - Page 7 User Manual PT-HDBT-701-RXAD Rear Panel AUDIO COAX OPTICAL RS232 IR IN IR OUT HDMI OUT HDBT IN DC 12V Name Description If one is connected with control device (e.g. PC), and the RS232 ① other should be connected with the third-party that need to connector be controlled.
-
Page 8: Specification
User Manual PT-HDBT-701-RXAD Specification Video& Audio Input HDBT IN Output HDMI OUT; AUDIO OUT; COAX OUT; OPTICAL OUT Control Ports IR IN, IR OUT, RS232 General Transmission Mode & HDBaseT; 1080P ≤ 70m; 4K×2K ≤ 40m Distance Resolution Up to 4K×2K@60Hz 4:2:0 Bandwidth 10.2Gbps... -
Page 9: System Diagram
User Manual PT-HDBT-701-RXAD System Diagram HDMI: Audio: RS232: 4K 40m, 1080P 70m HDBaseT: PT-HDBT-701-RXAD PT-HDBT-702-TX IR Receiver IR Emitter TV Remote Laptop HDTV Soundbar Speaker... -
Page 10: After Sales Service
User Manual PT-HDBT-701-RXAD After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 11 User Manual PT-HDBT-701-RXAD...
-
Page 12: Asking For Assistance
User Manual PT-HDBT-701-RXAD Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
