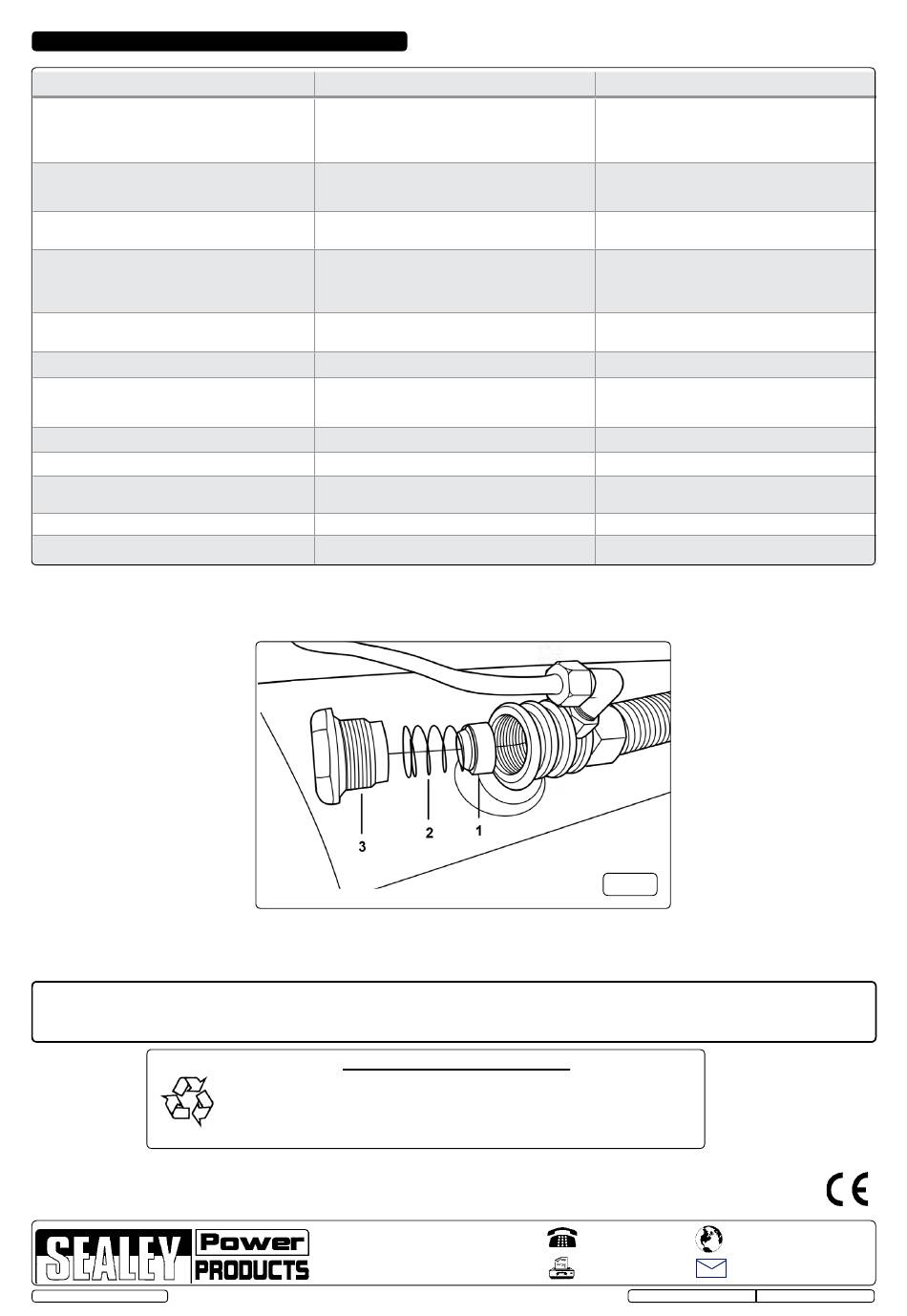

6. TROUBLESHOOTiNG
FAULT
1A) Pressure drop in the tank
1B) Pressure drop in the tank
1c) Pressure drop in the tank
2) Pressure switch valve leaks when
compressor is idle
3) Air leaks from tank body or tank welds
4A) motor stops and will not restart
4B) motor stops or stalls and will not restart
5) compressor stops and does not restart
6A) compressor does not stop at max. pressure
6B) compressor does not stop at max. pressure
7) compressor noisy with metallic knock
8) excessive moisture in discharged air
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
iMPORTANT: no liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 24 months from purchase date, proof of which will be required for any claim.
iNFORMATiON: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
© Jack sealey limited 2013
POSSiBLE CAUSE
Air leaks at connections
Air leaks from safety valve
Air leaks from cylinder head gasket
non-return valve seal defective
Internal corrosion caused by infrequent tank
draining or non permitted modifications to tank
thermal cut out has operated
supply breaker has tripped
Head gasket or valve fault
Bearing or piston damage
High humidity environment
See (fig.1) for location and 6.2
Environmental Protection.
recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycle centre and disposed of in a manner which is
compatible with the environment.
Sole UK distributor, Sealey Group,
Kempson Way, suffolk Business Park,
Bury st. edmunds, suffolk,
IP32 7Ar
Original Language Version
motor failure
Pressure switch fault
filter clogged
REMEdY
run compressor to max. pressure, switch off.
Brush soap solution over connections and look for
bubbles. tighten connections showing leaks.
If problem persists contact Authorised service Agent
It should be replaced, unless leaking at a joint
which can be sealed.
check tightness of head bolts. If leak continues
contact authorised service Agent
empty the air tank. referring to fig.9 remove the
non-return valve cap (3), spring (2) and seal (1).
clean the seal and its seat, or if necessary replace
the seal
cannot be repaired
diSCONTiNUE USE iMMEdiATELY
Allow unit to cool for 30 minutes before restarting
A qualified electrician to check breaker and restart.
If repeated tripping occurs replace the check valve
or contact authorised service Agent
contact Authorised service Agent
contact Authorised service Agent
replace filter element.
contact Authorised service Agent
contact Authorised service Agent
drain tank after each use
fig.9
www.sealey.co.uk
01284 757500
W e b
01284 703534
sales@sealey.co.uk
email
sAc32055B/sAc32775B
Issue no: 1 - 01/06/13
