Cadet The Com-Pak Plus C Series Owner's Manual

All manuals and user guides at all-guides.com

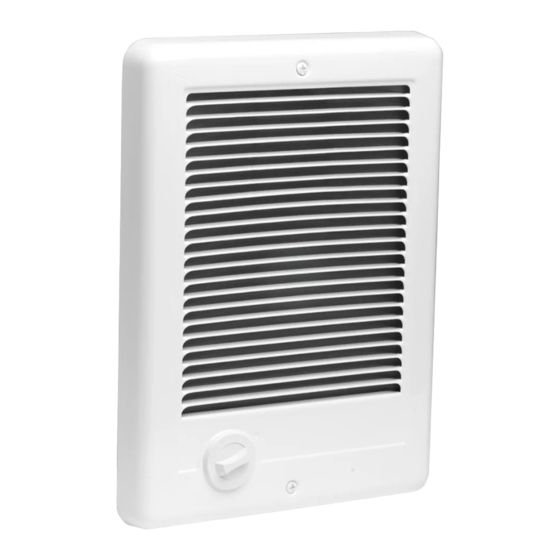

The Com-Pak
The Com-Pak
Side Grill Front
12"
30.48
9"
22.86
The Com-Pak
TM
Side Grill Front
16 1 / "
4
41.27
3"
7.62
14 1 / "
2
36.83
TOOLS REQUIRED:
Phillips Screwdriver
Straight Screwdriver
Wire Strippers
WARNING
Turn the electrical power off at the electrical
panel board (circuit breaker or fuse box) and
lock or tag the panel board door to prevent
someone from turning on power while you are
working on the heater. Failure to do so could
result in serious electrical shock, burns, or
possible death.
1. Read all instructions before using this heater.
2. Read all information labels. Verify that the electrical supply
wires are the same voltage as the heater.
3. All electrical work and materials must comply with the National
Electric Code (NEC), the Occupational Safety and Health Act
(OSHA), and all state and local codes.
4. Connect the grounding pigtail (copper wire) provided in the wall
can to the supply ground wire.
5. If you need to install a new circuit or need additional wiring
information, consult a qualified electrician.
6. Protect electrical supply from kinks, sharp objects, oil, grease,
hot surfaces or chemicals.
7. WARNING
Overheating or fire may occur. Do not install the heater in a floor,
behind doors, or outdoors.
360-693-2505 Fax: 360-694-8668 P.O. Box 1675 Vancouver, WA 98668-1675
OWNER'S GUIDE
TM Plus Model C
Wall Can Side
11
1 / "
10" Wall Can Bottom
2
29.21
25.4
1 3 / "
4
4.45 3.18
3
1 / "
4
8.26 1
1 / "
4
3.18
3"
7.62
7
7 / "
8
20.00
Twin Plus Model CT
Wall Can Side
12"
11 1 / "
8
30.48 28.26
Wall Can
4"
10.16
Bottom
Utility Knife
4 1 / " Wood Screws
1
2
3 Insulated Wire Connectors
1 Strain Relief Connector
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
™
Features & Benefits
Primary and secondary thermal safeguards
•
Commercial grade high temperature
•
manual reset
Over temperature one-time thermal
•
device
1 1 / "
4
Nichrome element wrapped around mica
•
4"
insulators for durability
10.16
Powder coat paint process eliminates
•
sharp cutting edges
Two year extended warranty
•
Wall can designed for ease of installation
•
Factory tested
•
MODELS
10"
25.4
The Com-Pak Plus
TM
C051 *C051T
C052 *C052T
C072 *C072T
C102 *C102T
C122 *C122T
The Com-Pak TM Twin Plus
CT252 *CT252T
CT302 *CT302T
CT402 *CT402T
CT408 *CT408T
*Standard built-in thermostat is single pole and has no
"OFF" position
8. WARNING
Fire or explosion may occur. Heater has hot and arcing or sparking
parts inside. Do not install heater in any area where combustible
vapors, gases, liquids, or excessive lint or dust are present.
9. WARNING
Burn Hazard. This heater is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. Use extreme caution when
any heater is used by or near children or invalids and whenever
the heater is left operating unattended.
10. WARNING
Risk of Electrical Shock. Keep all foreign objects out of heater.
Do not operate after heater malfunctions or has been dropped or
damaged in any manner.
11. WARNING
Risk of Fire. Do not block heater. Heater must be kept clear of all
obstructions: a minimum of 3 feet in front, 6 inches above and on
both sides. Heaters must be kept clean of excessive lint, dirt and
debris. (See Maintenance Instructions).
12. Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electrical
shock, or injury to persons.
Plus
C152 *C152T
C202 *C202T
C208 *C208T
C101 *C101T
C151 *C151T
CT102
