SIGNIFY Hadco V671 Series Installation Instructions

Advertisement

Quick Links

Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Telephone 855-486-2216
CAUTION
1. The electrical power must be disconnected from the fixture and pole before installing, servicing, or
relamping the fixture.
2. These directions must be read carefully and adhered to. Failure to do so may result in injury, damage to
the fixture, and voiding the warranty.
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
32001402, revision F
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Telephone 800-668-9008

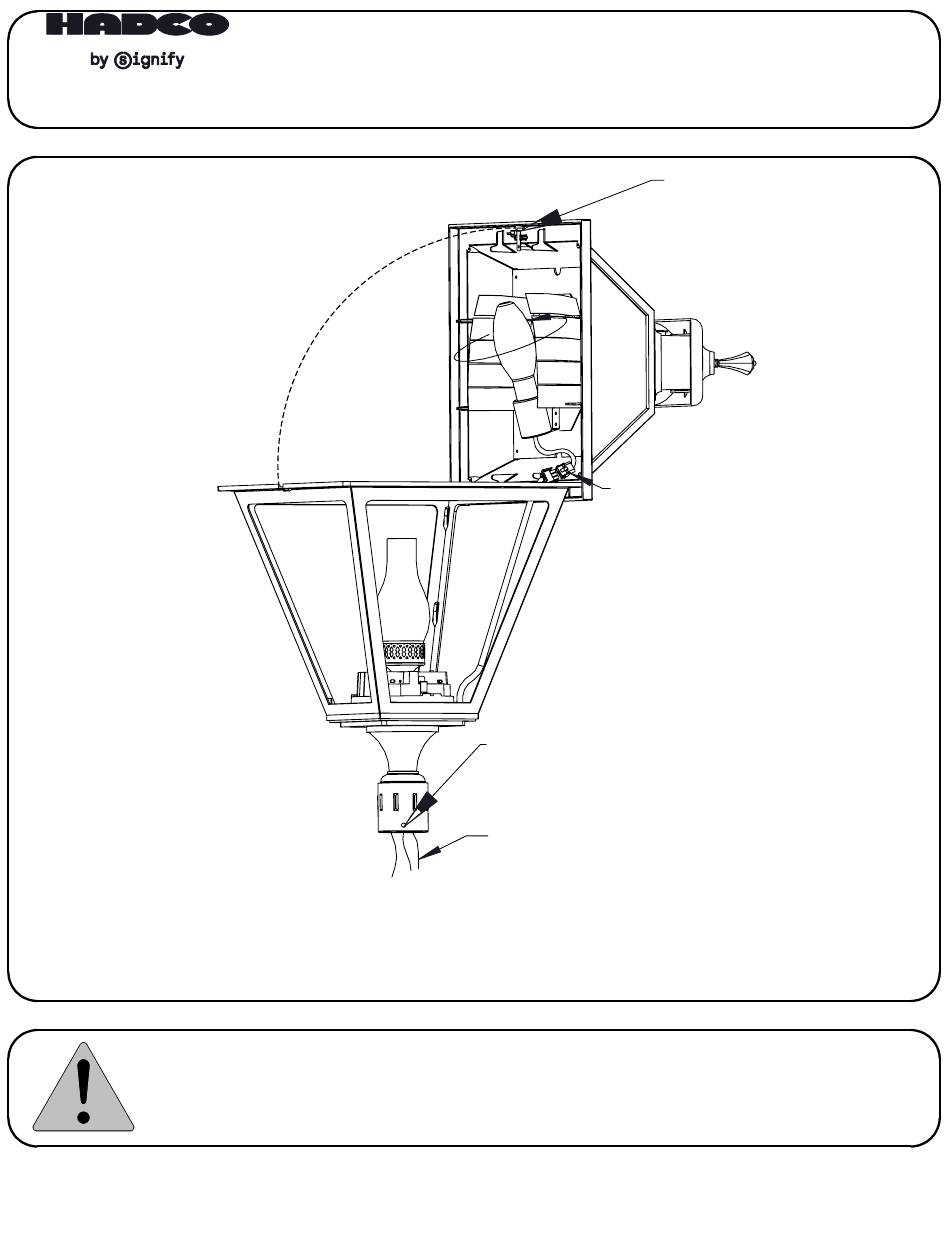

Installation INSTRUCTIONS:
V671 SERIES FIXTURES
YELLOW DISCONNECTS
5/16-18 SET SCREW
USE 5/32 ALLEN WRENCH
SUPPLY WIRES
SPRING CLIP
page 1 of 3
