Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)
Feature
Chassis slot restrictions
Bandwidth per slot
Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)

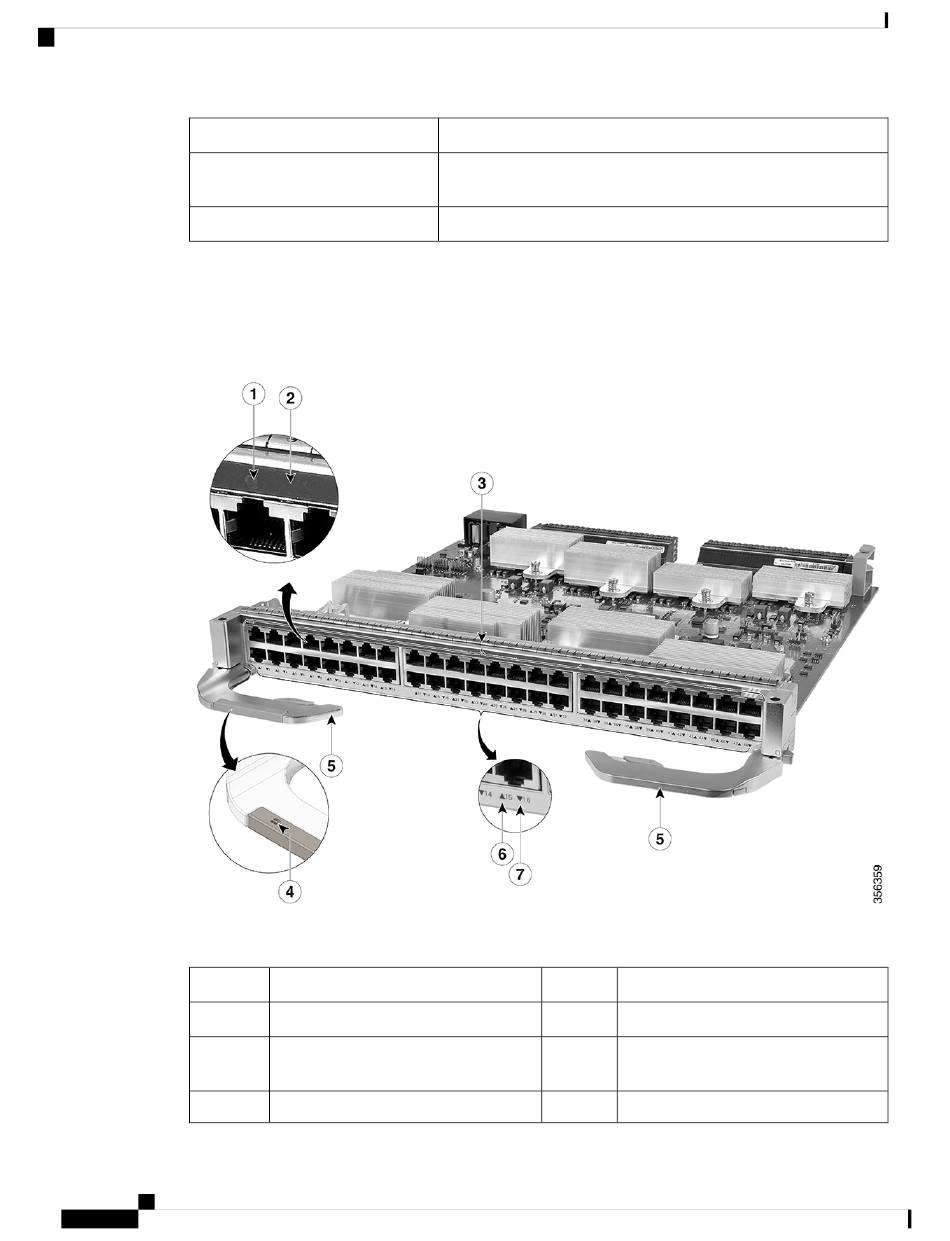

The following figure shows the front view of a 48-port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps
(C9600-LC-48TX) with the major features identified.
Figure 7: Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)
Table 7: Front Panel Components
1
2
3
4
Cisco Catalyst 9600 Series Line Card Installation Note
6
Description
C9606R: Slots 1, 2, 5, and 6 only. However, you can install a line
card in any of the supported slots.
2.4 Tbps per slot
Status LED
Locate (Blue beacon) LED
10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps
RJ45 copper ports
RFID embedded on the left ejector lever
5 Ejector levers
6 Port Link LED for the port in the top row
7 Port Link LED for the port in the bottom
row
- -
