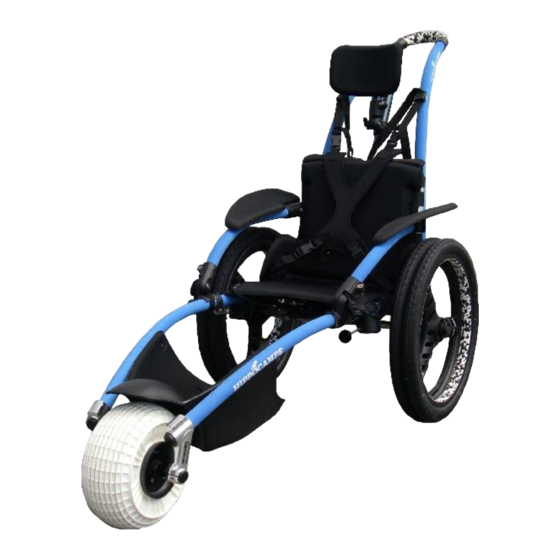

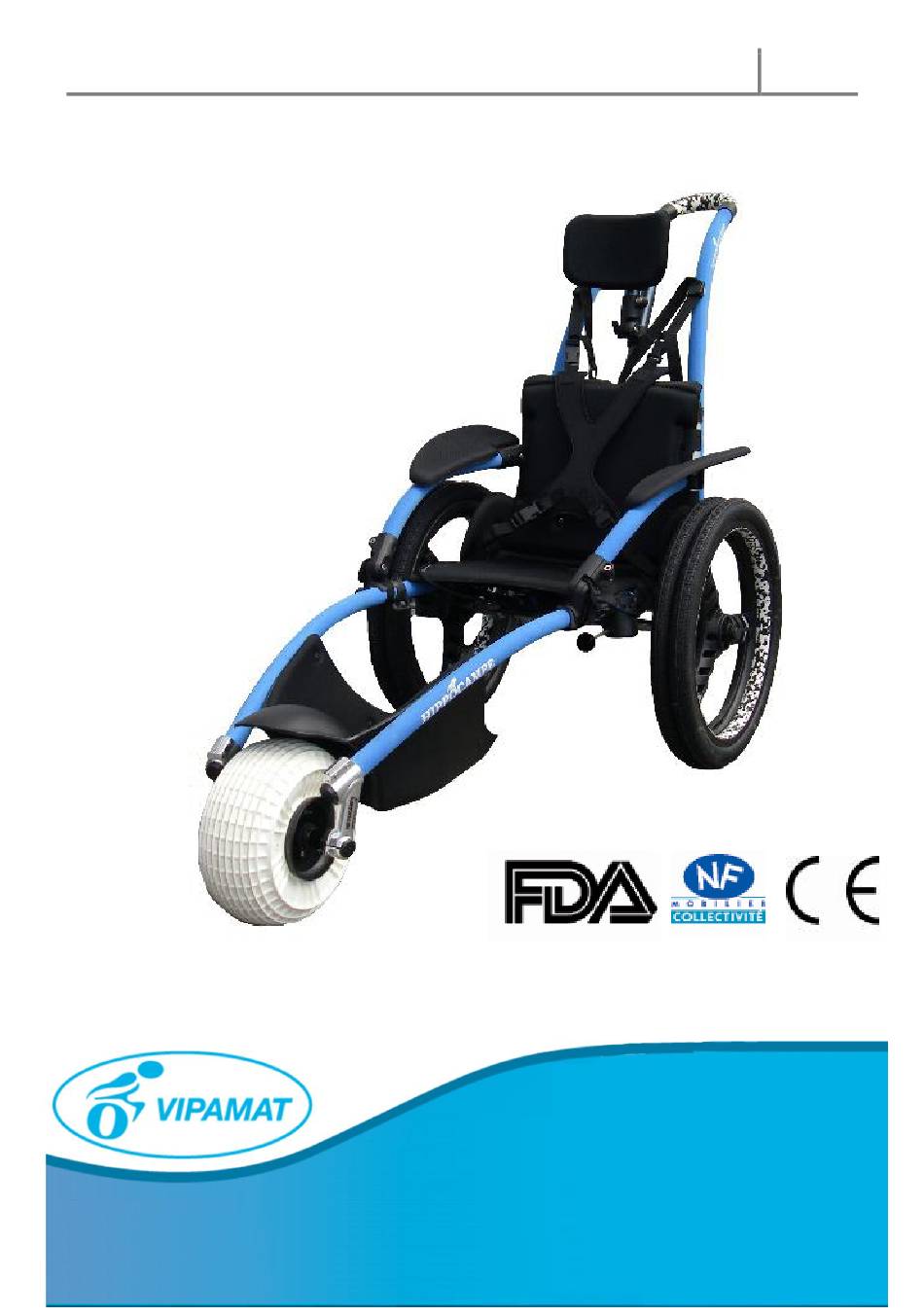

- Page 1 Instructions for use and assembly 2013 HIPPOCAMPE Leisure wheelchair Instructions for use and assembly 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly...
- Page 2 Instructions for use and assembly 2013 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly...
-
Page 3: Table Of Contents
Instructions for use and assembly 2013 SUMMARY GET TO KNOW YOUR HIPPOCAMPE ....................... 4 MOUNTING THE WHEELS .......................... 5 ASSEMBLING THE PUSH BAR ........................5 ASSEMBLING THE RECLINING BACKREST ..................... 6 ASSEMBLING THE RECLINING AND ADJUSTABLE BACKREST ............6 ASSEMBLING THE ARMRESTS ......................... 7 ASSEMBLY INSTRUCTIONS FOR THE HEADREST ................. -
Page 4: Get To Know Your Hippocampe
The Hippocampe is designed for a maximum weight of 130kg. The Hippocampe is not a boat. It allows entry into water up to the height of the seat and is not designed to float with the user in it. Wearing a lifejacket is obligatory, as is use within a guarded swimming area. -
Page 5: Mounting The Wheels
. Insert the 2 joint parts into the extremities of the frame tubes (up to the clips) 2. Press the 2 clips simultaneously, while pushing the handlebar, until they come back out. 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 6: Assembling The Reclining Backrest
2. Open the push locks on the backrest tubes 3. Position the backrest at the desired height and close the push locks on the positioning holes 4. Buckle the horizontal straps and tighten the vertical straps. 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 7: Assembling The Armrests
Don’t inflate the front of wheels too much. She Caution : shouldn’t rub against the footrest. 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 8: Assembly Instructions For The Headrest
(in contact with the head). Immediately tighten the wing nuts. Lower wing nut: height + rotation adjustment Central wing nut: forwards-backwards adjustment Upper wing nut: forwards-backwards adjustment 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 9: Assembling The Harness
6. Position the catch by exaggerating the locking of the brake on the wheel and tighten the catch screws. 7. Place the nut protection caps on the screw heads on the upper part of the brake 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 10: Instructions Large Beach Wheels
Install the knobs to cover the nuts. Insert the half-axle into the Balloon Wheels, then the plastic spacer before to clip the half-axle into the rear axle of the frame. 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly... -
Page 11: Assembly Of Back Ski
Fasten the red safety strap on one of the back gallows of the frame when a helper pushes the Hippocampe with the push bar, or on one of the front gallows when a helper pulls the Hippocampe with the towrope. - Page 12 Tel : +33 (0)2 97 86 24 87 Fax : +33(0)2 97 86 73 81 Email : contact@vipamat.com www.vipamat.com SARL au capital de 40 000€ - Siret 44242884300035 – Code APE 3092 Z 2013 - V003-02 Manufacturer: VIPAMAT FRANCE Instructions for use and assembly...
