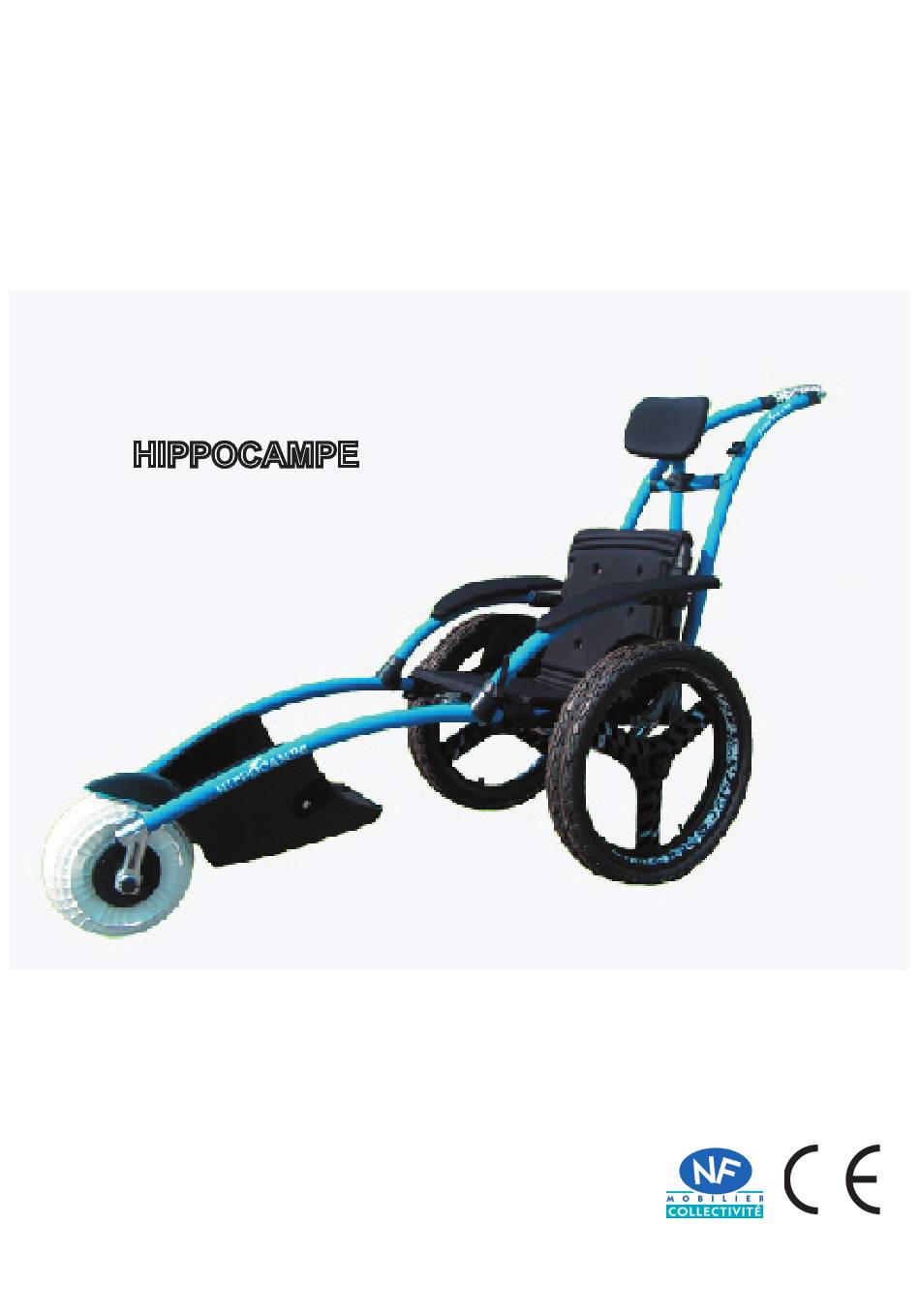

- Page 1 Instructions for use and assembly HIPPOCAMPE LEISURE WHEELCHAIR Manufacturer: VIPAMAT TECHNOLOGIE FRANCE...
- Page 2 The Hippocampe is designed for a maximum weight of 130kg. The Hippocampe is not a boat. It allows entry into water up to the height of the seat and is not designed to fl oat with the user in it. Wearing a lifejacket is obliga- tory, as is use within a guarded swimming area.
- Page 3 Assembling the reclining backrest 1. Position the backrest on the frame tubes 2. Secure the backrest to the frame by fastening the bolts with the Allen key (Insert the nut in the corresponding indentation) Securing the seat 3. Slide the 2 vertical straps through the buckles and tighten (figure 1) 4.
- Page 4 Disassembling the backrest 1. Lower the collars by turning them 2. Unscrew the 4 screws (with a Phillips or socket screwdriver) 3. Separate the top of the backrest from the two arms and remove the collars Collar...
- Page 5 Assembling the armrests The armrests are composed of a left and right armrest,both of which are moveable, and 2 B parts (fixed to the backrest once assembled). 1. Begin by disassembling the backrest (procedure 1) 2. Insert the B parts from the armrests into the arms of the backrest The butterfl...
- Page 6 Ass em b li n g th e H arn ess The push bar must already be assembled Position the harness 1. Place the upper harness straps in the handlebar clasps and fasten them (figure 1) 2. Slide the lower harness strap through the loops (for each side) 3.
- Page 7 VIPAMAT Technologie Z A La Vraie Croix 56 270 PLOEMEUR – FRANCE Phone: +33 (0)2 97 86 24 87 Fax: +33 (0)2 97 86 73 81 Email: contact@vipamat.fr www.vipamat.com SARL (Limited Liability Company) with registered capital of €7,500 Siret (Company Registration Number)44242884300019...
