Pull the adjustment screw on the hinge side of the door gate until the distance between the wall
and the gate frame is identical at the top and the bottom (Ill. 11) (The vertical rod of the door
gate frame is equipped with a slight angle deviation in order to fit the door gate into the mounting
opening under tension (Ill. 12).
Open the function handle by pressing the 2 buttons on both sides of the handle gently and
simultaneously lifting the handle. (Ill. 5)
Adjust the adjustment screw of the closure so that the distance between it and the door frame is
3-4 mm. (Ill. 13)
Mount the wall shell (e) and close the function handle.
After tightening, check to ensure that the middle rod of the door gate is vertical and the distance
from the middle rod to the left and right attachment surfaces has the same size. (Ill. 14)
Regularly check the safety of the mounting, static stability and locking function.
Adjust according to the indications in the instructions subsequently.

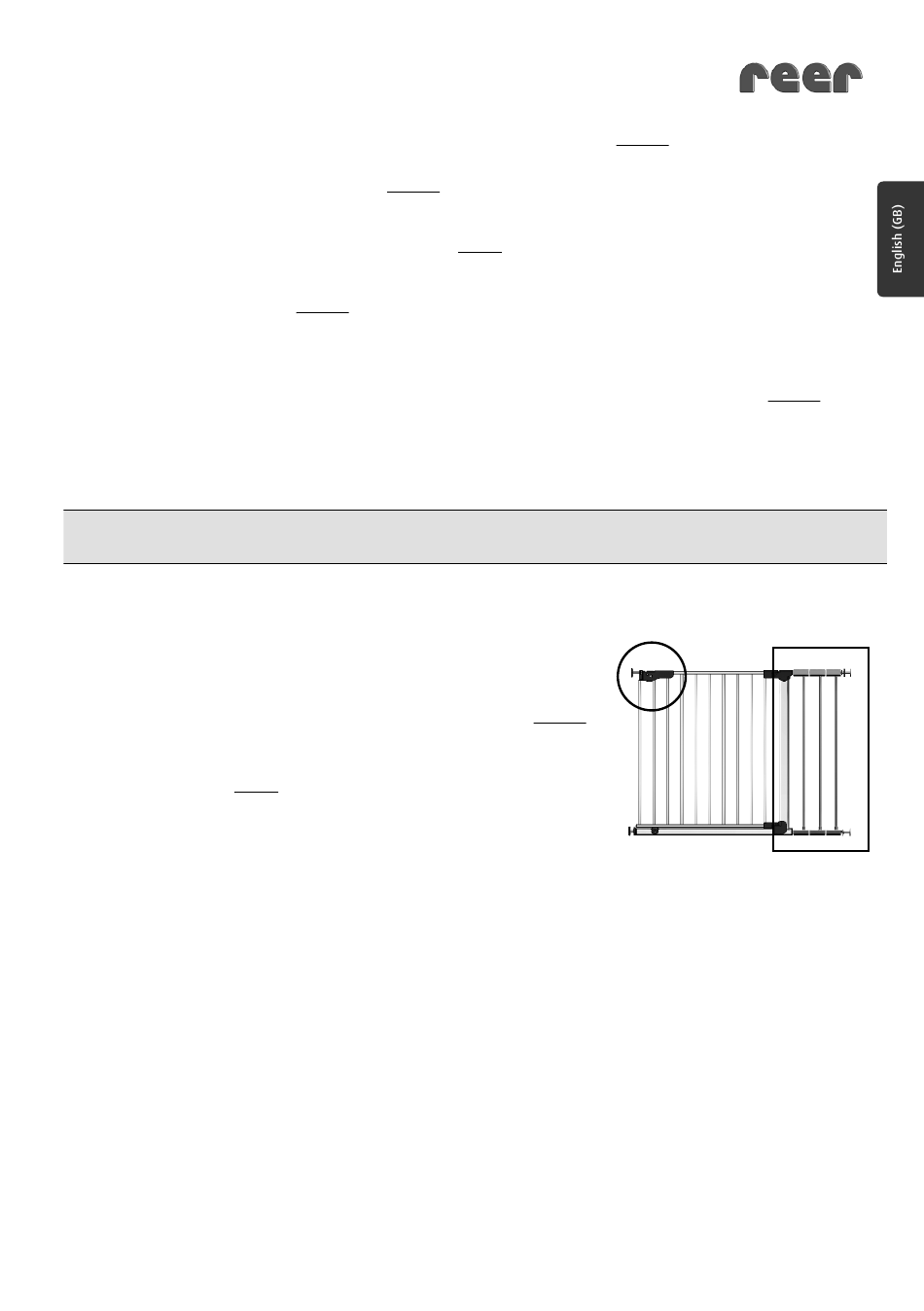

Installation of the extensions
Attention!
(max. 3 pieces)
Extensions may only be attached on the hinge side!
Remove the adjustment screws (d) if these have
already been installed on the opposite side.
Place the extensions in each other. the adjustment
screws (d) are inserted in the last extension. (Ill. 15)
Continue with the installation as described on page 10.
(Ill. 1)
Please keep the sales receipt, operating manual and article number in a safe place.
All claims based on warranty or guarantee are to be directed solely towards the retailer.
