Seametrics FT520-84 Instruction Manual

General Information
The FT520-84 is a version of the SeaMetrics flow
processor specially designed for regeneration control.
On the input side, it can be used with SeaMetrics flow
sensors and meters, as well as with water meters from
other manufacturers. The output can be used to initiate
regeneration in a variety of one-tank and two-tank water
treatment systems. In addition to the regeneration
functions, this unit features displays of flow rate and
accumulated flow, as well as programmable pulse output
and a 4-20 mA analog output, for use with remote
recorders.
There are two regeneration relays, which can be used
for alternating regeneration of two tanks. The outputs
remain on for a duration programmed by the user,
depending on the requirements of the regeneration valve
being used.
A programmable pulse output can be used as needed to
control a chemical metering pump, for controlled chem-
ical addition to the water stream.

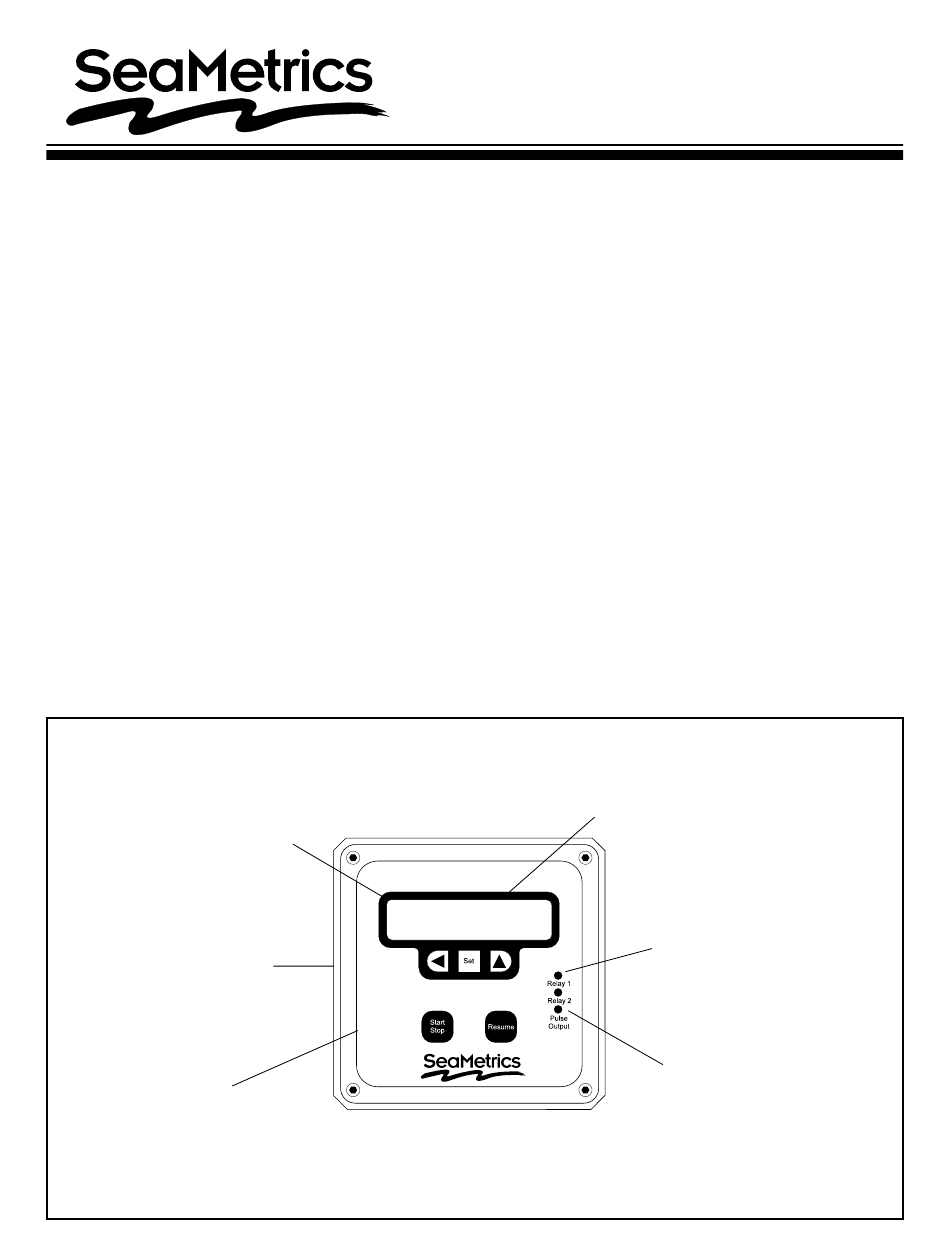

Features
Easy-read
backlit display
Remote control terminals
(inside housing)
Rugged cast aluminum
housing
(wall or panel mount)
FT520-84 Regeneration
Control Instructions
Specifications
Power
Temperature
Enclosure
Initiation Outputs
Max Pulse Output
Memory Type
Sensor Power
Totalizer
Rate Display
Volume Units
Output Time
Analog Output
Sensor Input
Max Input Frequency 1,000 Hz
Shipping Weight
SET REGEN. VOL .
1000.00
GAL
115 VAC (220 VAC optional)
50/60 Hz; 12-24 VDC
32° - 130° F (0° - 55° C)
Precision cast aluminum,
NEMA 4X
Two Form C SPDT relay,
115 VAC 5A max
100 mA at 60 VDC
Non-volatile EEPROM
auto-backup
12 VDC, 10 mA
8 digit
5 digit
Gallons, cubic feet, cubic
meters, liters, million gallons
1-999 Seconds
4-20 mA, 0-5 VDC, 0-10 VDC,
opto-isolated
Open collector current sink,
ESD protected
7 lbs
Regeneration volume
counts down
Regeneration
initiation
Chemical pump
pulse LED
LT-10830-C
Page 1 of 4
