Summary of Contents for XTA DS8000

  • Page 2 DS8000 Operator’s Manual Page 2...

  • Page 3: Table Of Contents

    ..........10 10 10 10 ....... Inputs Outputs External Supply OPERATING YOUR DS800 OPERATING YOUR DS800 OPERATING YOUR DS800 OPERATING YOUR DS8000: 0: 0: 0: ....................................................................11 11 11 11 ......
  • Page 4 DS8000 Operator’s Manual Page 4 LOOKING AFTER YOUR D LOOKING AFTER YOUR D LOOKING AFTER YOUR D LOOKING AFTER YOUR DS8000: S8000: S8000: S8000: ..................................................................23 23 23 23 Maintenance Warranty...
  • Page 5 Page 5 DS8000 Operator’s Manual DECLARATION OF CONFO DECLARATION OF CONFORMITY RMITY DECLARATION OF CONFO DECLARATION OF CONFO RMITY RMITY We, the manufacturer: XTA Electronics Limited, The Design House Vale Business Park Worcester Road Stourport on Severn Worcestershire England DY13 9BZ...

  • Page 6: Thanks

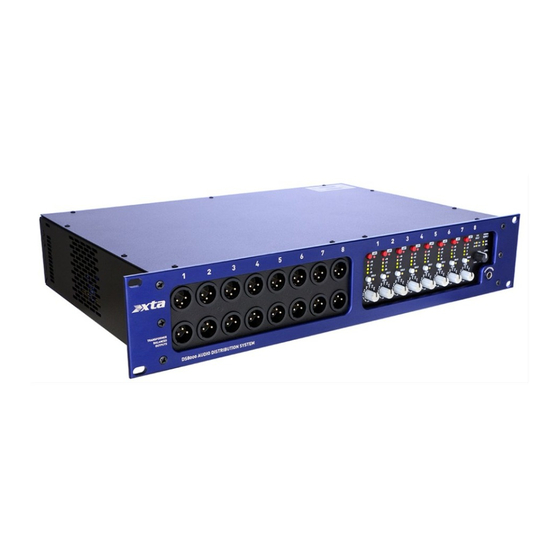

    The DS8000 is a 2U, 8 input to 32 output mic/line distribution system with 16 transformer balanced isolated outputs, and 16 electronically balanced outputs fitted as standard. Input transformers can be ordered as an option, as can the replacement of the electronically balanced outputs with transformer balanced outputs.
  • Page 7 Page 7 DS8000 Operator’s Manual IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN The lightning flash with arrowhead The exclamation point within an symbol within an equilateral triangle is...
  • Page 8 DS8000 Operator’s Manual Page 8 INSTRUCTIONS DE SECURITE IMPORTANTES INSTRUCTIONS DE SECURITE IMPORTANTES INSTRUCTIONS DE SECURITE IMPORTANTES INSTRUCTIONS DE SECURITE IMPORTANTES ATTENTION: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR Le symbole représentant un éclair fléché Le point d’exclamation dans un triangle dans un triangle équilatéral a pour but...

  • Page 9: Installing Your Ds80

    Page 9 DS8000 Operator’s Manual Installing your DS8000: Installing your DS8000: Installing your DS8000: Installing your DS8000: Unpacking After unpacking the unit, please check it carefully for any damage. If any is found, immediately notify the carrier concerned - you, the consignee, must instigate any claim.

  • Page 10: Connecting Your Ds8000

    (electrically) isolated. Front panel outputs are transformer balanced and so are isolated. External Supply This socket must only be used to connect directly to another DS8000 and NOT as an input from a separate supply. Attempting to connect another supply to this socket will damage the unit and invalidate the warranty.

  • Page 11: Operating Your Ds8000: 0: 0: 0

    TRANSFORMER BALANCED OUTPUTS DS8000 AUDIO DISTRIBUTION SYSTEM 1: Transformer balanced outputs: These are post gain control and are galvanically isolated. Pin 1 on the XLR sockets is NOT connected by default, but this can be changed if required — please see notes on page 17 for more information.

  • Page 12: Rear Panel Controls And Sockets

    DS8000 Operator’s Manual Page 12 Rear Panel Controls and Sockets 1: Mains input socket: Supply voltage is 100-240V AC. This unit must be earthed. 2: Word clock and Lock LED: This BNC socket (when ADC option fitted) can provide either a word clock output or input, dependent on the ADC jumper setting).

  • Page 13: Internal Block Diagrams And Description

    Page 13 DS8000 Operator’s Manual 8: AES option: This DB25 socket (not fitted unless option is present) provides multiple AES digital output feeds and may be used in conjunction with the word clock I/O BNC socket. Please see the ADC option set-up, starting on page 18.
  • Page 14 DS8000 Operator’s Manual Page 14 INPUT OUTPUT -10dB -10dB -10dB -10dB CHANNEL 1 CHANNELS 1 INPUT OUTPUT CHANNEL 2 CHANNELS 2 INPUT OUTPUT CHANNEL 3 CHANNELS 3 INPUT OUTPUT CHANNEL 4 CHANNELS 4 INPUT OUTPUT CHANNEL 5 CHANNELS 5 INPUT...
  • Page 15 Page 15 DS8000 Operator’s Manual Finally, the solo bus is directly connected to the headphone amplifier and anything switched via the front panel “Solo” switches will be mixed onto this bus along with any incoming signals on the external solo input on the rear panel.

  • Page 16: Grounding Pin 1 On Front Panel Transformer Balanced Outputs

    DS8000 Operator’s Manual Page 16 Internal Adjustments of your DS8000: Internal Adjustments of your DS8000: Internal Adjustments of your DS8000: Internal Adjustments of your DS8000: User options The following options are adjustable by you, the user, without invalidating the warranty.

  • Page 17: Lifting Grounds On Pin 1 Connections On Inputs

    Page 17 DS8000 Operator’s Manual Lifting grounds on pin 1 connections on inputs By default, the inputs have their pin connections grounded, but this can be lifted on an removing rear panel PCB individual input basis, by the zero Ohm links on the...

  • Page 18: Aes Digital Output Options

    AES option PCB. These are: Internal or External wordclock The DS8000 can either generate the clock for the AES digital outputs using its own internal clock, with adjustable sample rate (48k/96k/192k), or be synchronised via an external clock on the BNC connector.

  • Page 19: Permissive Clock Mode

    (so 48/96/192) — this is known as permissive mode and is explained below. Permissive Clock Mode When sync is set to external, the DS8000 will only lock to an external wordclock if it falls within close tolerance of a standard professional sample rate — so 48kHz, 96kHz or 192kHz, +5%.

  • Page 20: Internal Sample Rate

    Page 20 Internal Sample Rate When sync is set to internal, the DS8000 will operate the AES digital outputs at one of three professional rates — 48kHz, 96kHz or 192kHz. The unit’s analogue bandwidth extends beyond the typical Nyquist point for 48kHz digital systems, ensuring that the higher sample rates’...

  • Page 21: Wordclock Dc Ground Reference (Ground Lift)

    A typical scenario where the ground link might be required would be if the device receiving a wordclock from the DS8000 (or supplying a wordclock sync signal to the DS8000) has an external DC supply or is USB powered from a laptop running on battery power — a high-end...
  • Page 22 B4 (Chs 7&8) B4 (Chs 7&8) B4 (Chs 7&8) The DS8000’s digital outputs utilise industry standard drivers and circuitry to ensure that the performance of the digital outputs is as widely compatible as possible with other professional equipment. The pairs of outputs will drive into 110R standard loads, tested up to cable distances of 100 metres.
  • Page 23 Warranty Your DS8000 is guaranteed for a period of five (5) years from the date of purchase. We hope that it gives you many more years of reliable service than this but, should anything go wrong, please contact us to advise you about repairs or any spares you might require.
  • Page 24 DS8000 Operator’s Manual Page 24 Factory fit options The following options are available for your unit. Please note that these are factory-fit only options and must be ordered at the time of purchase. Convert electronic ally balanced inputs to transformer balanced inputs: This is performed on all eight channels as a group and cannot be applied to individual inputs.
  • Page 25 Page 25 DS8000 Operator’s Manual Performance of your DS8000: Performance of your DS8000: Performance of your DS8000: Performance of your DS8000: Technical Specifications Inputs (8 off) Parameter (Units) Electronic (standard) Transformer (option) Maximum Input Level (dBu) +26dBu Max Broad Spectrum Signal (dBu)
  • Page 26 DS8000 Operator’s Manual Page 26 Appendix I: Appendix I: Appendix I: Appendix I: All about splitters A splitter, or distribution system, is responsible for providing multiple feeds from a single audio source to enable different processing devices to share the same input signal. In this way a signal is split and distributed to multiple destinations.
  • Page 27 Page 27 DS8000 Operator’s Manual Passive splitter with No Isolation Consider the scenario below — this shows the most basic method of splitting the signal and distributing it to all the required inputs. This “passive” splitter is so called because it does not contain any “active”...
  • Page 28 DS8000 Operator’s Manual Page 28 Passive Splitter with Transformer Isolation This second system uses a passive splitter again, so no amplification on stage, but does utilise transformers to allow the grounds to be isolated from each other. The input is connected to one side, the primary, of the transformer, and multiple secondaries provide isolated outputs for each feed.
  • Page 29 OB Truck will not introduce grounding problems. As the DS8000 is an active device, it can generate the 48V phantom power required for the microphone inputs if required. It also senses 48V being switched in from a mixing desk and can enable the respective input’s 48V supply if needed, providing seamless “echoing”...
