RedKnows SBX-3 Series User And Installation Manual

INTRODUCTION

Thank you for your purchase of redKnows SBX-3 series product. In order to take full advantage of this
product, please read this manual carefully before starting to use the product.
SBX-3 can be used for guarding many types of objects such as cars, boats, excavators, containers, motor-
cycles, campervans and others. In this manual all objects are referred to as "vehicles" or objects.
SBX-3 is a GSM-based positioning alarm. The alarm can be triggered by an alarm sensor connected to one
of the inputs or if the object is moved outside a defined area, so called geofencing. When triggered, the
siren will sound and an SMS message will be sent to pre-stored telephone numbers.
In addition to the alarm function, SBX-3 can also be used for tracking the position of an object and control
equipment with SMS. The SBX-3 can only communicate with the pre-stored telephone numbers
on the SIM-card in SBX-3. They can receive SMS-alarms and control them.

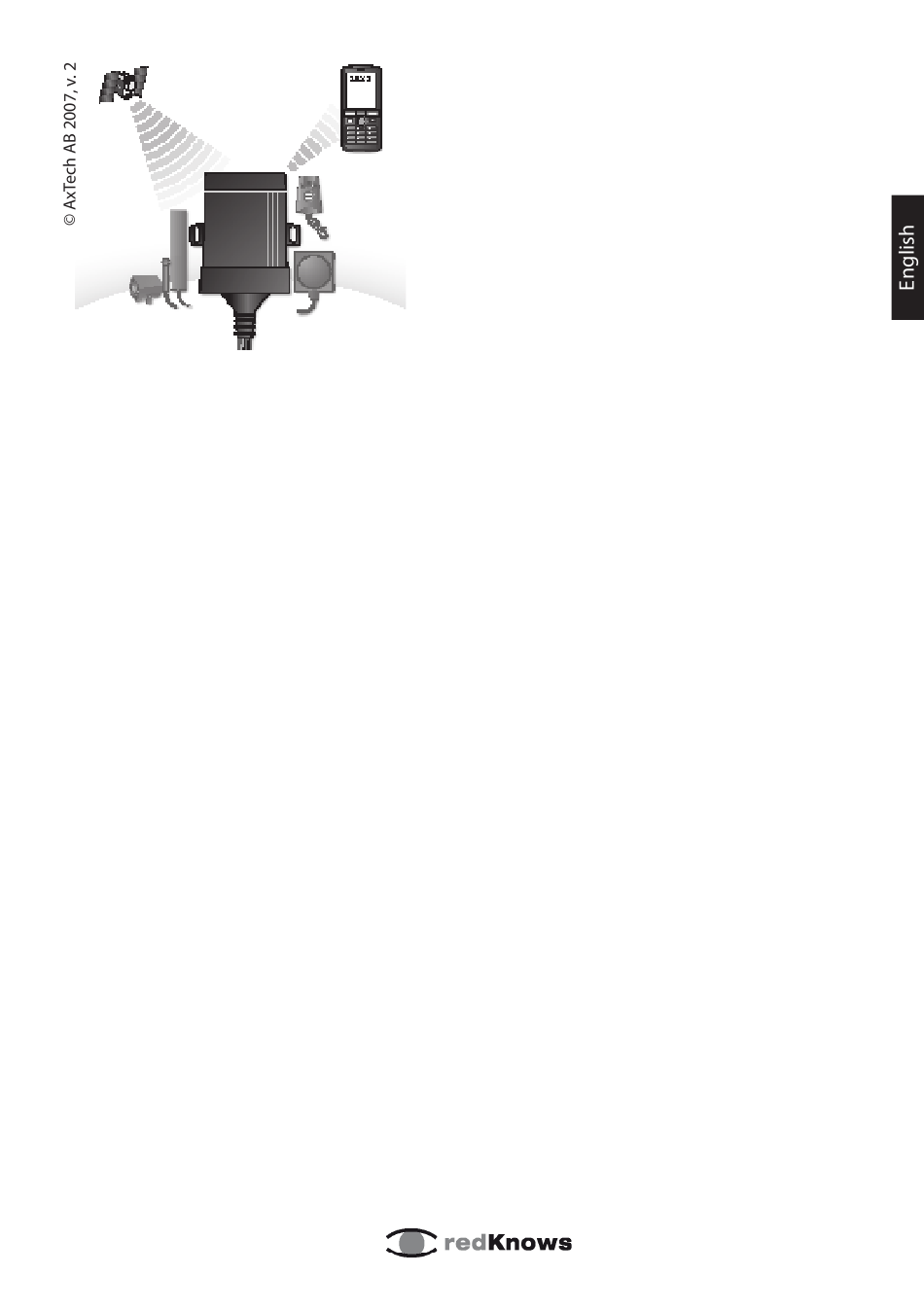

In the package you will find:
Main unit with integrated GSM module and
spare battery.
GPS receiver
GSM antenna
Magnet Switch - (Marine package only)
The units are installed according to the instructions in this manual and a SIM-card is inserted. Then the
user´s telephone numbers has to be stored into the SIM-card in order to allow access to the system.
After this introduction, the manual continues with instructions for handling the SBX-3 with the remote
controller and a mobile phone once it is installed and initialised.
The installation should be made by a person with proper knowledge of the electrical system of the object.
Instructions are found in the Installation Manual. When the system is installed a SIM-card is inserted and
power is applied. Then the SIM-card should then be prepared with the proper settings, these are descri-
bed in the Setup Manual.
SBX-3
Mini Tracker
Installation Manual
Siren
Remote Control
Microphone
Cable kit
User and
1
