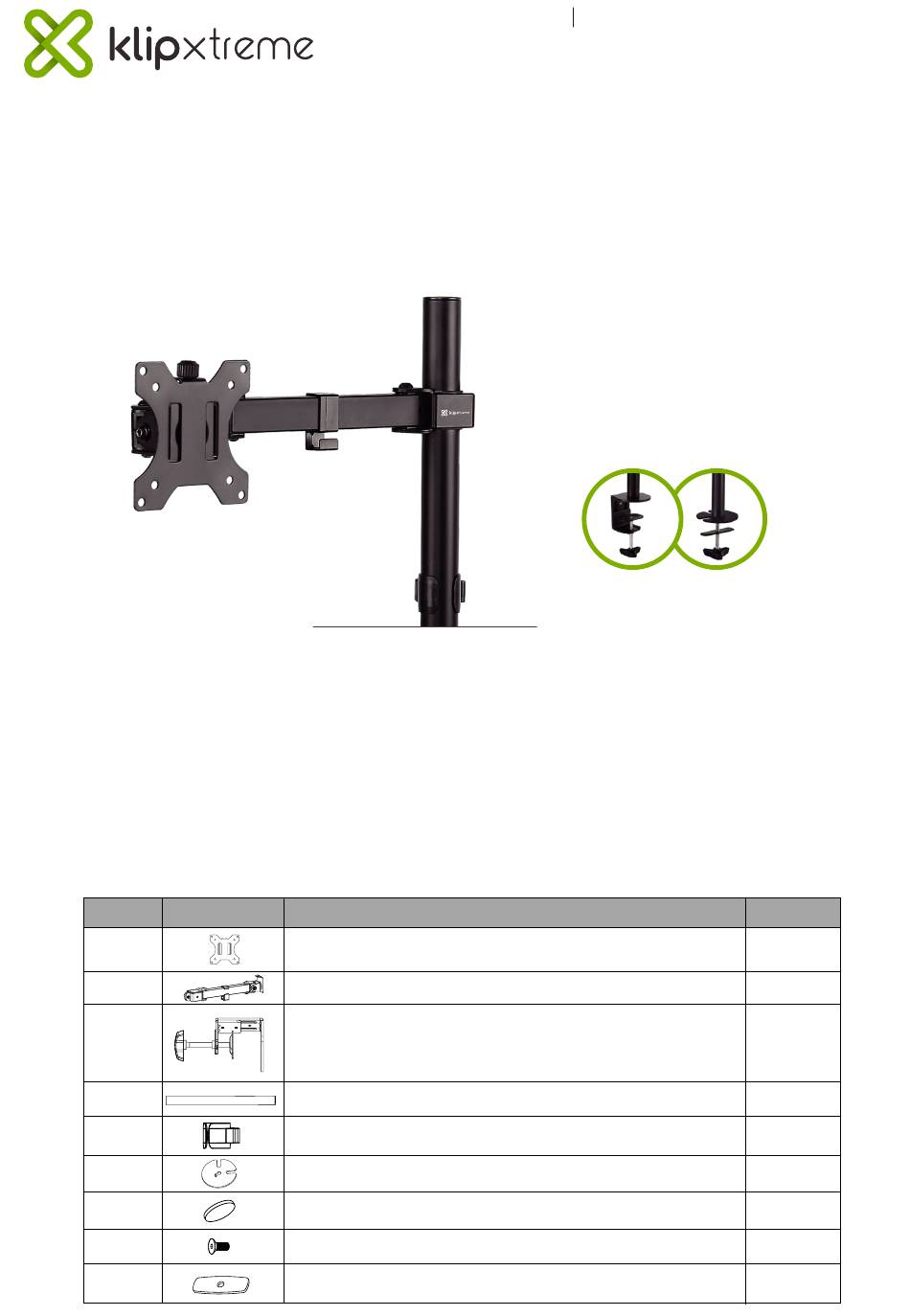

KPM-300
Introduction:
Thank you for purchasing the KPM-300 LCD/LED monitor mount. This product is shipped
with all proper installation hardware and components. Upon opening the box, make sure that
none of these parts are missing and/or damaged before beginning installation.
1. Hardware kit
Label
A
B
C
D
E
F
G
H
I
Item
VESA monitor plate
Mounting arm
C-clamp with locking knob
Shaft
Cable clip with tool holder
Grommet base
Adhesive rubber pads
Pole mounting screws
Flat clamping plate
LCD/LED monitor mount
C-clamp/Grommet base
configuration
Quantity
1
1
1
1
1
1
5
3
1
Advertisement
Table of Contents
Related Manuals for KlipXtreme KPM-300
Summary of Contents for KlipXtreme KPM-300
- Page 1 Introduction: Thank you for purchasing the KPM-300 LCD/LED monitor mount. This product is shipped with all proper installation hardware and components. Upon opening the box, make sure that none of these parts are missing and/or damaged before beginning installation.
- Page 2 3. Product diagram Label Image Item Quantity Thumb screw ±90˚ ±90˚ 4mm allen wrench 38 m m 18 5m m 60 m m 6mm allen wrench 185mm M4x12 screw M4x16 screw M5x12 screw ±45˚ M5x16 screw D5 metal flat washer 75mm Round spacer 100mm...
- Page 3 CAUTION: Verify the adequate thread engagement of the screw/spacer combination on your monitor. Too short will not hold the display and too long will damage it. Too short Correct Too long Attach the plate to the monitor by aligning the mounting holes in the VESA plate with the corresponding threaded inserts of the display.
- Page 4 Option A - C-clamp mount The clamp provides two positions depending on the thickness of your desk. For thinner surfaces, unfasten the two screws and move the base plate upwards to the next hole position. Tighten the screws when done. Locking knob Figure 1 Figure 2...
- Page 5 Then, connect the grommet base tab to the groove on the shaft edge. Place the shaft and Now carefully slide the monitor with the plate attached into the matching end of the grommet base assembly on top of the cable opening, making sure the bolt hole is aligned mounting arm.
- Page 6 Now you can adjust the vertical (tilt) and horizontal (swivel) action of the mount. Finally, place the wrenches in the tool holder when not in use. Fully tighten the screws of the joints when the optimal viewing angle is reached. The monitor can be also rotated for portrait or landscape orientation, or anything in between.
- Page 7 Notes...
