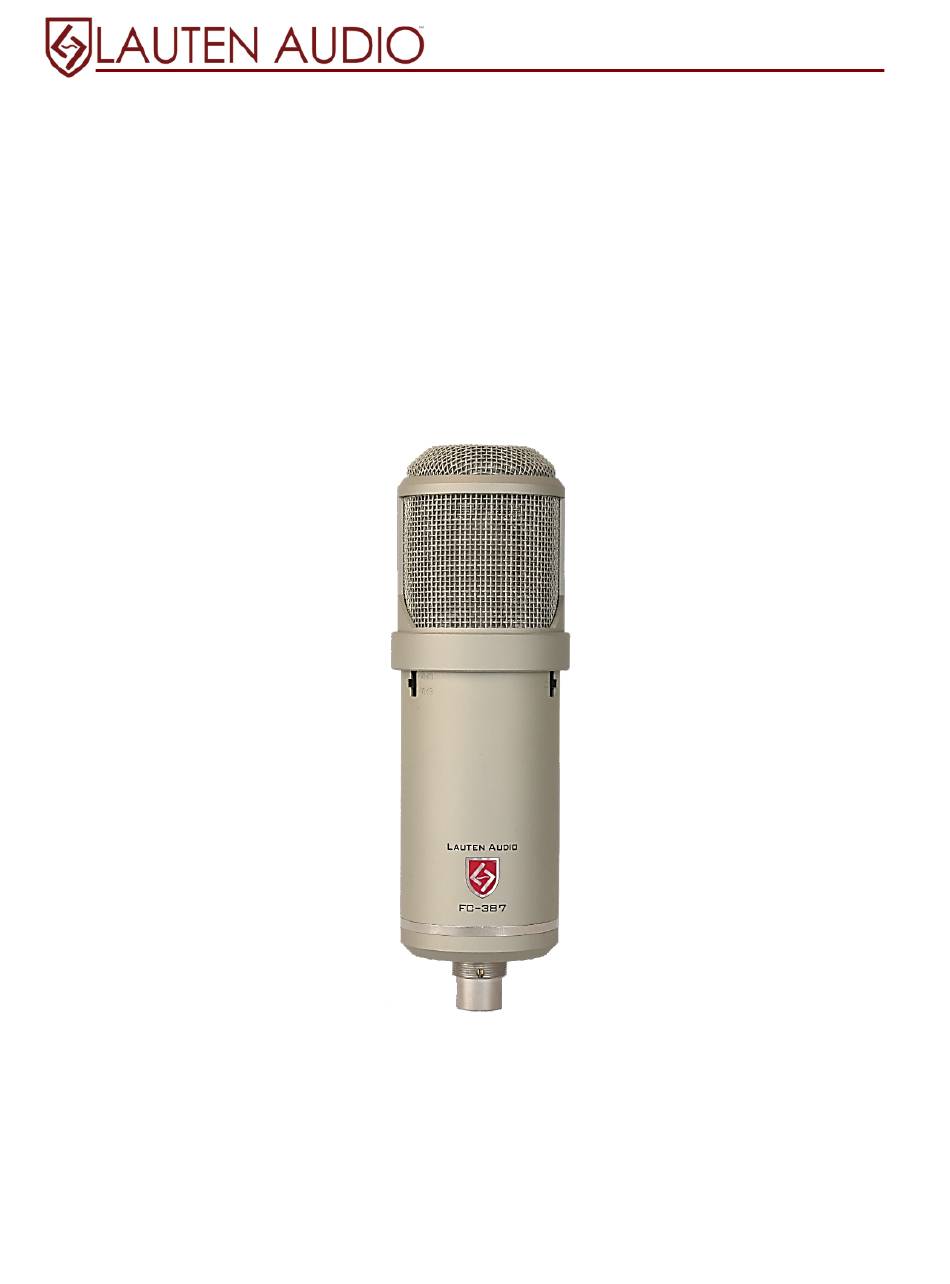

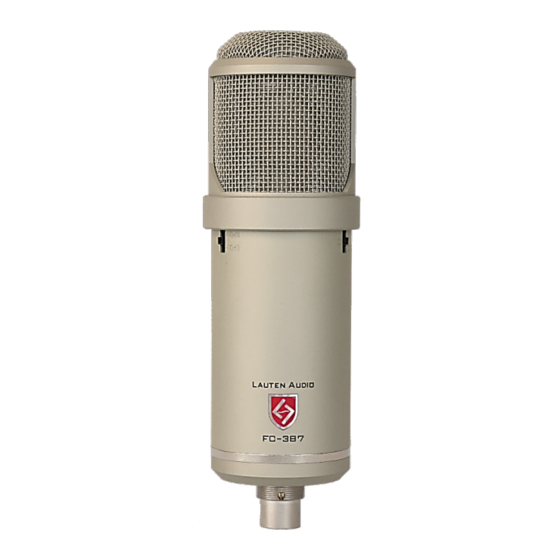

- Page 1 Original, Inspiring, Microphones ™ ATLANTIS FC-387 MULTI-VOICING FET CONDENSER MICROPHONE ® OPERATING MANUAL...
- Page 2 WARNING: Only authorized Lauten Audio technicians should perform disassembly and maintenance on any part of this microphone. Disassembling and modifying any part of this microphone may void its warranty. NEVER DISASSEMBLE THE MICROPHONE WHEN POWER IS BEING SUPPLIED. REGISTER ONLINE TODAY AT: http://www.lautenaudio.com Why You Should Register Your Product Today…...
- Page 3 Congratulations and thank you for your purchase of the FC-387 Atlantis multi-voicing FET condenser microphone. Your microphone was designed and built with pride by Lauten Audio. We are dedicated to providing recordists throughout the world with authentic, high quality, great sounding microphones.
-
Page 4: Table Of Contents
Table of Contents • Safety/Contents/Introduction • Quick Start Guide/Sequence of Operation • Description • Power Requirements • Connections • Recommended Uses • Placement and Techniques • Care and Cleaning • Warranty • Technical Specifications... - Page 5 The microphone also features a -10dB pad and +10dB gain switch and a 3-way voicing switch. The Atlantis FC-387 is built with extreme attention to detail. From the individually hand-tuned capsule to the premium high-resolution electronics, this microphone is a high-quality precision instrument for...
-
Page 6: Description
The Atlantis FC-387 features three switches on each side and back of the microphone just below the microphone grill. These switches allow you to adjust the polar patterns; output gain and timbre (see Fig. 1, 2 and 3 below). -
Page 7: Power Requirements
Power Requirements This microphone requires +48v phantom power. Phantom power can be found as a built-in feature on most modern recording interfaces and microphone preamplifiers, or you may use an external +48v phantom power supply. Do not connect this microphone to any power source other than +48v phantom power. Using +48v phantom power is the only way to ensure safe and reliable operation. -
Page 8: Recommended Uses
Recommended Uses This microphone is designed to offer you sonically smooth and rich recordings. We recommend using it for micing solo voices and instruments and also for distance micing as overheads or room mics. The microphone may also be used on various other sources including but not limited to those listed below. We recommend the FC-387 for the following recording applications. -
Page 9: Placement And Techniques
Placement and Techniques Below are general tips for microphone placement; the recording environment plays a significant role in the success of any technique. We suggest experimenting extensively. Distance from source: 6 to 12 inches. Pattern: Cardioid, use pop screen or foam Lead/Solo Vocals windscreen. -
Page 10: Care And Cleaning
Warranty All Lauten Audio products offer a 3-year warranty from the date of purchase through an authorized retailer or distributor. In order to receive your full 3-year warranty you must register your microphone with Lauten Audio. A copy of your original sales receipt may be requested to verify the original purchase date. Please keep your receipt. -
Page 11: Technical Specifications
Technical Specifications Type: 31.25mm dual large diaphragm pressure gradient transducer microphone. Polar Patterns: Omnidirectional, Cardioid and Figure-8 selectable. Circuit: Low-noise solid-state FET Frequency Range: 20Hz-20KHz Dynamic Range: 130dB minimum Impedance: < 200 ohms Max. SPL: 0.5%THD@1000Hz: 130dB (-10dB Pad engaged) Self-noise Level: <... - Page 12 Frequency Response and Polar Pattern Plots Cardioid Omnidirectional Figure-8 All measurements taken at 0 degrees (on axis)
- Page 13 Lauten Audio 1817 Houret Ct. Milpitas, CA 95035 Phone: 877-721-7018 Webpage: www.lautenaudio.com Email: crm@lautenaudio.com This manual is printed in the USA on recycled paper. © 2004-2019 LAUTEN AUDIO ALL RIGHTS RESERVED...
