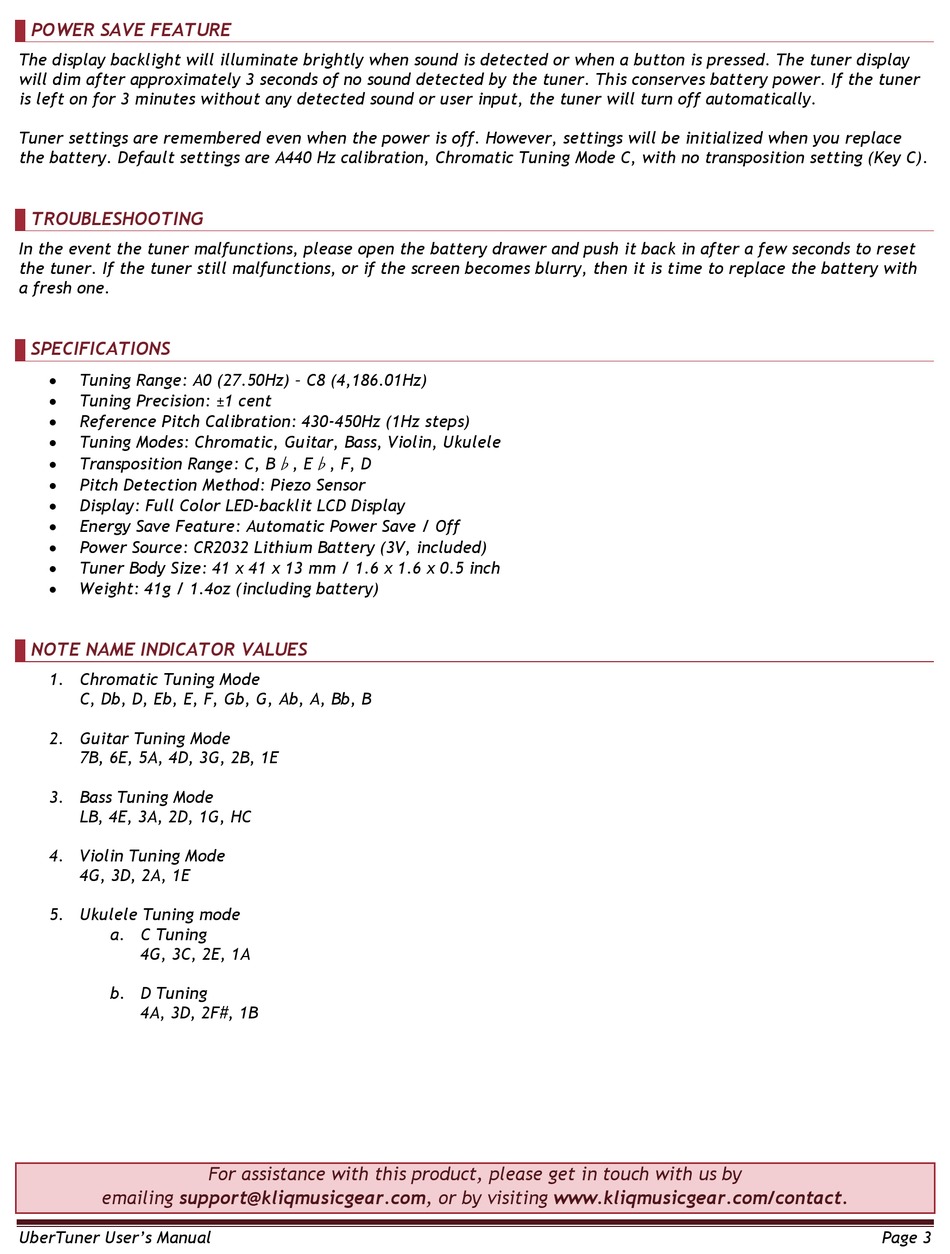

Power Save Feature; Troubleshooting; Specifications; Note Name Indicator Values - KLIQ UBERTUNER User Manual

POWER SAVE FEATURE

The display backlight will illuminate brightly when sound is detected or when a button is pressed. The tuner display
will dim after approximately 3 seconds of no sound detected by the tuner. This conserves battery power. If the tuner
is left on for 3 minutes without any detected sound or user input, the tuner will turn off automatically.
Tuner settings are remembered even when the power is off. However, settings will be initialized when you replace
the battery. Default settings are A440 Hz calibration, Chromatic Tuning Mode C, with no transposition setting (Key C).

TROUBLESHOOTING

In the event the tuner malfunctions, please open the battery drawer and push it back in after a few seconds to reset
the tuner. If the tuner still malfunctions, or if the screen becomes blurry, then it is time to replace the battery with
a fresh one.

SPECIFICATIONS


Tuning Range: A0 (27.50Hz) – C8 (4,186.01Hz)

Tuning Precision: ±1 cent

Reference Pitch Calibration: 430-450Hz (1Hz steps)

Tuning Modes: Chromatic, Guitar, Bass, Violin, Ukulele

Transposition Range: C, B

Pitch Detection Method: Piezo Sensor

Display: Full Color LED-backlit LCD Display

Energy Save Feature: Automatic Power Save / Off

Power Source: CR2032 Lithium Battery (3V, included)

Tuner Body Size: 41 x 41 x 13 mm / 1.6 x 1.6 x 0.5 inch

Weight: 41g / 1.4oz (including battery)

NOTE NAME INDICATOR VALUES

1. Chromatic Tuning Mode
C, Db, D, Eb, E, F, Gb, G, Ab, A, Bb, B
2. Guitar Tuning Mode
7B, 6E, 5A, 4D, 3G, 2B, 1E
3. Bass Tuning Mode
LB, 4E, 3A, 2D, 1G, HC
4. Violin Tuning Mode
4G, 3D, 2A, 1E
5. Ukulele Tuning mode
a. C Tuning
4G, 3C, 2E, 1A
b. D Tuning
4A, 3D, 2F#, 1B
emailing support@kliqmusicgear.com, or by visiting www.kliqmusicgear.com/contact.
UberTuner User‟s Manual
, E , F, D
♭ ♭
For assistance with this product, please get in touch with us by
Page 3
