Maxcess MAGPOWR DLCA Installation And User Manual

Maxcess MAGPOWR DLCA Installation And User Manual

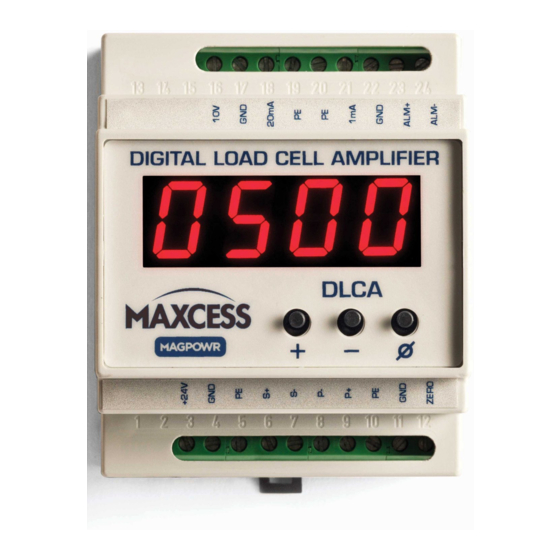

Digital load cell amplifier

Advertisement

MAGPOWR TENSION CONTROL
MAGPOWR DLCA
Digital Load Cell Amplifier
Installation and User Manual
EN
MI 850A348 1 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGPOWR DLCA and is the answer not in the manual?

Questions and answers

Summary of Contents for Maxcess MAGPOWR DLCA

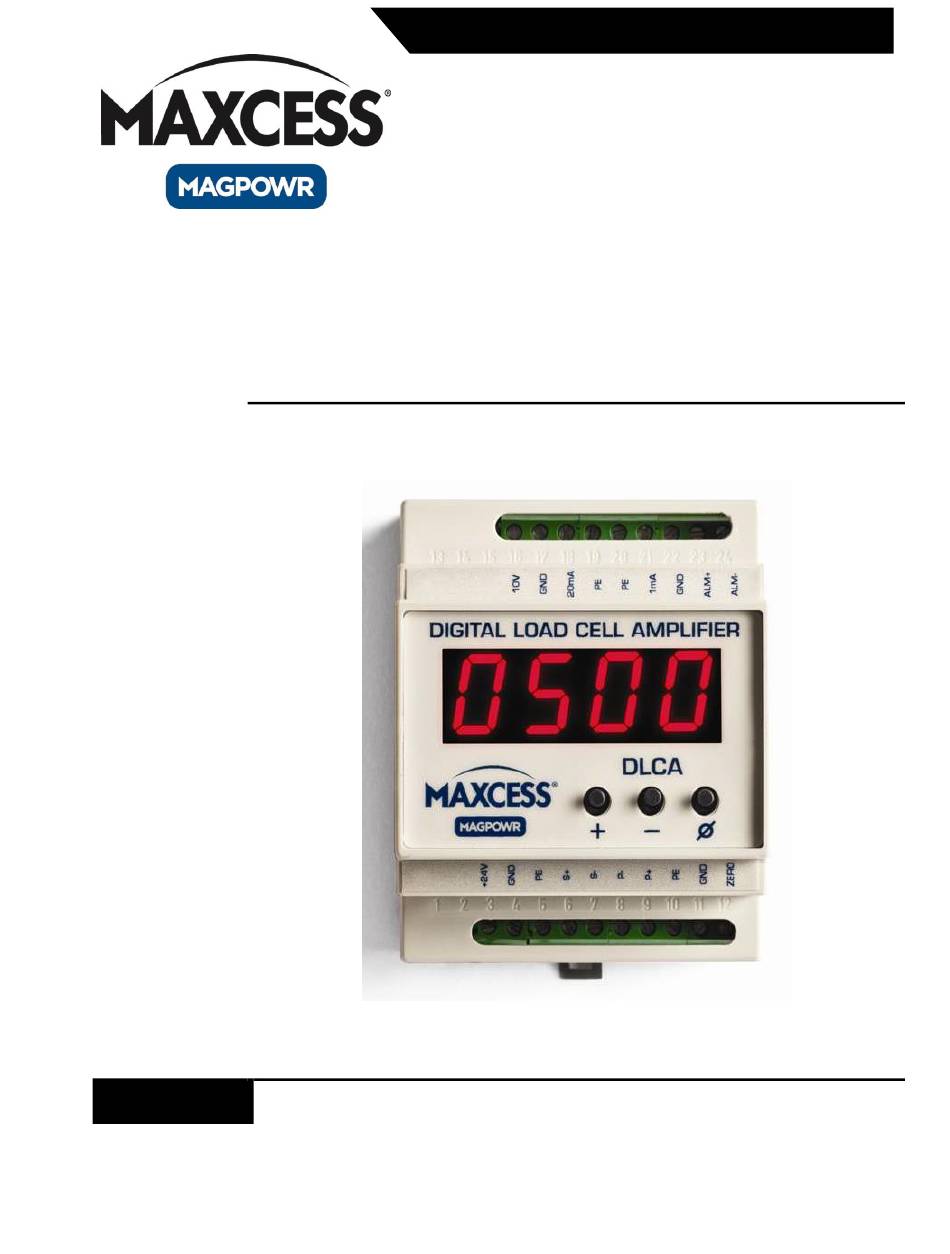

  • Page 1 MAGPOWR TENSION CONTROL MAGPOWR DLCA Digital Load Cell Amplifier Installation and User Manual MI 850A348 1 E...
  • Page 2: Table Of Contents

    Analog output scaling ..................5-1 Alarm setup and operation ................... 5-2 Digital input threshold ..................5-3 Calibrate the analog outputs ................5-3 Password ......................5-4 Miscellaneous ....................... 5-5 MAINTENANCE Fuse replacement ....................6-1 TROUBLESHOOTING SPECIFICATIONS SERVICE www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 3 Figure 7. Enclosure top removal ..................6-1 TABLES Table 1. Convert wiring from an LCA to the DLCA ............. 3-5 Table 2. Load cell diagnostic errors .................. 4-1 Table 3. Load cell calibration errors ................4-11 www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 4: Introduction

    All of the information herein is the exclusive proprietary property of Maxcess International, and is disclosed with the understanding that it will be retained in confidence and will neither be duplicated nor copied in whole or in part nor be used for any purpose other than for which disclosed.
  • Page 5: Product Overview

    Model format: DLCA Serial number format: MMDDYYNNNL MM = month DD = day YY = last two digits of the year NNN = a sequence number L = manufacturing location www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 6: Safety Instructions

    The signal word WARNING refers to the danger of moderate to severe bodily injuries. The signal word CAUTION refers to the danger of slight to moderate bodily injuries or material damage. The signal word NOTICE refers to the possibility of damage to equipment. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 7: Symbols Used

    WARNING/CAUTION – Danger due to voltage, electric shock Reference to danger of injury caused by electric shock due to voltage. WARNING/CAUTION – Danger due to hot surfaces Reference to risk of injury caused by burning. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 8: Basic Safety Information

    The digital load cell amplifier must be securely mounted before being placed in operation. Only replacement parts obtained from Maxcess may be used. No modifications may be made to the digital load cell amplifier. Do not place electrical cables under mechanical strain.
  • Page 9 DLCA has been installed has been stopped and has been secured from being turned on again. Decommissioning The digital load cell amplifier must be disposed of in accordance with all the applicable national, state and local regulations. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 10: Installation

    DLCA is installed has been stopped and has been secured from being turned on again. 1. Install the DLCA on a DIN 35 rail. Figure 1 shows the DLCA dimensions. Figure 1. DLCA dimensions. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 11: Electrical

    Figure 3 for wiring. 4. Calibrate the load cells by following the procedure starting on page 4-5 (Precision) or 4-8 (Weightless). Figure 2 on the next page shows the complete DLCA wiring. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 12: Figure 2. Complete Dlca Wiring

    3–3 INSTALLATION Wiring for the DLCA Figure 2. Complete DLCA wiring. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 13: Figure 3. Load Cell Wiring Detail

    3–4 INSTALLATION Wiring for the DLCA Figure 3. Load cell wiring detail. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 14: Figure 4. Dlca And Lca Pinout

    DLCA Terminal +24V 0 to1 mA 4 to 20 mA 0 to10V Shield 10, 19, or 20 Table 1. Convert wiring from an LCA to the DLCA Figure 4. DLCA and LCA pinout www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 15: Operation

    Sensor Red (P+) wire disconnected. Er 12 Sensor Green (P-) wire disconnected. Sensor Failure or other miswiring error. Example: Green and White wire are Er 13 swapped, etc. Table 2. Load cell diagnostic errors www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 16: Reset Parameters

    The DLCA allows a password to be set which prevents changes to the parameters or performing a calibration. When locked, all parameters can be viewed. Only zeroing tension is allowed while the password has locked the DLCA, unless zeroing has been locked out. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 17: Programming Mode

    The CAL1 and CAL2 menus are sub-menus which are used to step the operator through the calibration sequence. Press [] when a CALx menu is showing to get into the sub-menu. The parameters will now be labeled Cx.y. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 18 The DLCA allows a password to be set which prevents changes to the parameters or performing a calibration. When locked, all parameters can be viewed. Only zeroing tension is allowed while the password has locked the DLCA, unless zeroing has been locked out. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 19: Tension Calibration

    Display now shows C1.1. Unload the load cell roller and press []. The DLCA will now zero out the idler roll weight and show a wait display. After zeroing the DLCA will automatically increment to the next parameter. continued www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 20 Display now shows C1.4. Press [] and enter the calibration tension that will be applied to the load cell. Press and hold [] for two seconds (until the display starts flashing) to store the parameter. continued www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 21: Figure 5. Apply Calibration Tension

    Sensing roll Weight (W) Figure 5. Apply calibration tension From either the passing or error screen, press [] to return to displaying tension. See the calibration errors in Table 3 on page 4-11. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 22: Weightless Calibration

    MAGPOWR load cells have a sensitivity of 2.1 mV/V. (Consult the manual of competitor's load cells if using non-MAGPOWR load cells.) Press and hold [] for two seconds (until the display starts flashing) to store the parameter. continued www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 23: Figure 6. Weightless Calibration Angles

    Press and hold [] for two seconds (until the display starts flashing) to store the parameter. Figure 6. Weightless calibration angles X = Web wrap angle Y = Angle from force direction Arrow Continued www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 24 See the calibration errors in Table 3 on page 4-11. If the displayed tension reads negative when force is applied to the load cell, change parameter P.20 (Tension Polarity), to -1. The displayed tension will now read positive when force is applied. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 25: Tension Calibration Errors

    Calibration tension. Maximum tension exceeds the load cell rating. Lower wrap angle, make Er 5 roll weight smaller or get higher rated load cells. Table 3. Load cell calibration errors www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 26: Entering Maximum Tension

    Enter decimal point position as 000.0.  Enter maximum tension as 33.0.  The DLCA will now display tension with units of  1 kPound. The display will increment in 0.1 kPound steps.  www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 27 The DLCA will now display tension with units of 1 lbs.  The display will increment in 10 lb steps.  Note that the right-most zero is fixed and does not  change. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 28: Parameters

    Sets the 0 to 1mA output current volts {00.00, 10.00} when the tension is equal to maximum tension * The voltage value entered in P.10 and P.11 represents the current value in milliamps when divided by 10. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 29: Alarm Setup And Operation

    Alarm turns off when tension is less than (HighValue - (HysteresisPercent * MaximumTension) and when tension is greater than (LowValue + (HysteresisPercent * MaximumTension) Alarm activation type 3: Alarm output is the complement of alarm activation type 2. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 30: Digital Input Threshold

    Change the value until the meter reads 0.00 volts or 0.00 milliamps C0.6 Sets the 0 to 1mA output to 100%. {0, 9999} Change the value until the meter reads 10.00 volts or 1.00 milliamps. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 31: Password

    Press [] to return to displaying tension. If the password was incorrect, the display shows LOC and the DLCA is still locked. Press [] to return to displaying tension, and then repeat the unlock procedure. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 32: Miscellaneous

    Zeroing tension allowed when password has locked the DLCA Zeroing tension locked out when password has locked the DLCA P.23 Firmware Version. Displays the firmware version. P.24 Exit from menu and return to displaying tension www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 33: Maintenance

    The fuse can be accessed by opening the enclosure. Insert a flat blade screwdriver under one of the retaining tabs in the base and lift the cover. See Figure 7. Figure 7. Enclosure top removal www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 34: Troubleshooting

    Cannot change Password protection is Enter the password into –– parameters or active P.00 to unlock the DLCA. perform calibration. The master unlock password is 6195. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 35: Specifications

    Length – 70.0 mm (2.76 in) Width – 86.0 mm (3.39 in) Display 4-digit LED, 3-digit tension resolution. Display decimal point selectable position. Maximum gain 32:1 Tare Adjustment 90% of Load Cell Rating. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 36: Inputs And Outputs

    Max null drift: 0.07% of load cell rating per °C Certifications and environmental compatibility Product certifications – TUV Rheinland of North America to UL61010-1 CAN/CSA-C22.2 No. 61010-1 and CB Certificate to IEC61010-1 RoHS www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 37: Service

    If it is necessary to return the DLCA for service, care must be taken to properly package the unit to prevent damage during shipment. If possible, use the original shipping containers. www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
  • Page 38 AND AFRICA AND SE ASIA Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +91.22.27602633 Tel +81.43.421.1622 Tel +49.6195.7002.0 asia@maxcessintl.com Fax +1.405.755.8425 Fax +86.756.881.9393 Fax +91.22.27602634 Fax +81.43.421.2895 Fax +49.6195.7002.933 www.maxcess.asia sales@maxcessintl.com info@maxcessintl.com.c india@maxcessintl.co japan@maxcessintl.com sales@maxcess.eu www.maxcessintl.com www.maxcess.jp www.maxcess.eu www.maxcessintl.com.c www.maxcess.in © 2017 Maxcess...
  • Page 39: Www.maxcessintl.com Magpowr Dlca Mi 850A348 1 E

    10–1 APPENDIX A DLCA Flowchart www.maxcessintl.com MAGPOWR DLCA MI 850A348 1 E...
