Sentinel 5000 Series Installation Instructions

SENTINEL
A
Standard Installation
Type
SPEED
ADJUSTING
VALVE
Please note
This drawing is not to full scale. Therefore, do not use it as your template to locate the hole positions while you fabricate your
door and frame for the installation of this product. Instead, make the measurements needed manually without the use of the
enclosed template which is not to full scale.
A

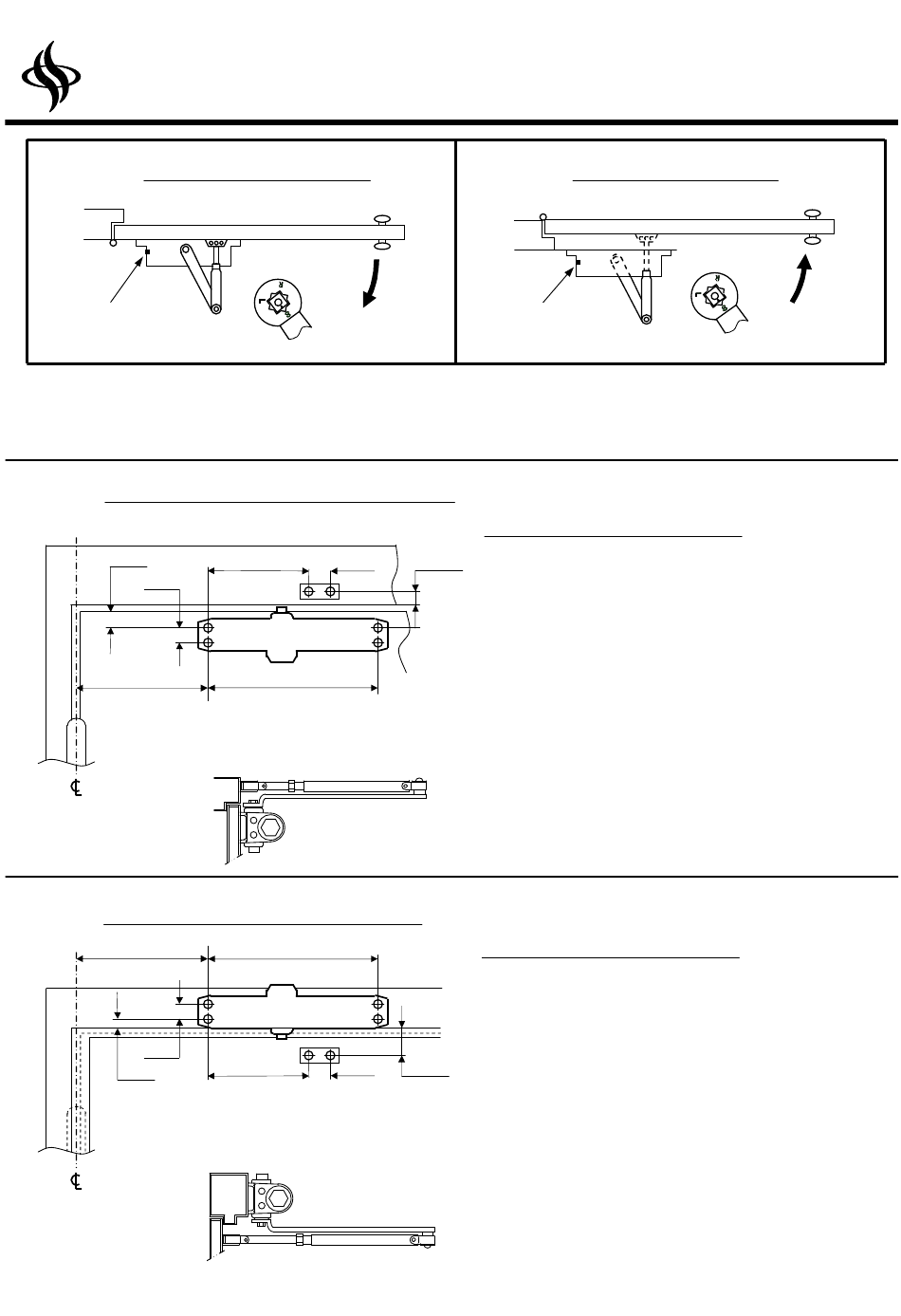

STANDARD (PULL SIDE) Mounting
Type
1
(25)
3/4
(19)
4
(101)
Right hand door shown.
Left hand door opposite.
Dimensions: inches (mm)
Hinge or Pivot
B
TOP JAMB (PUSH SIDE) Mounting
Type
4
(101)
3/4
(19)
1/2
(12.7)
Left hand door shown.
Right hand door opposite.
Dimensions: inches (mm)
Hinge or Pivot
Installation
Right hand door
PULL
side of door
6
1
1/2
3/4
(44.4)
(165)
9
1/16
(230)
9
1/16
(230)
6
1
1/4
3/4
(44.4) (44.4)
(159)
Instructions
B
Top Jamb Installation
Type
SPEED
ADJUSTING
VALVE
INSTALLATION INSTRUCTIONS
1. Using template dimensions shown above, mark FORE(4)
1
HOLES ON DOOR for door closer and TWO(2) HOLES
(25.4)
ON FRAME for arm shoe.
2. Drill pilot holes in door and frame for #14 all-purpose screws
or drill and tap for 1/4-20 machine screws.
3. Install adjustable forearm/arm shoe to frame using screws provided.
4. Mount closer on door using screws provided. SPEED ADJUSTING
VALVE MUST BE POSITIONED TOWARD HINGE EDGE.
5. Install main arm to top pinion shaft, perpendicular to door as shown
below. Secure tightly with arm screw/washer assembly provided.
6. Adjust length of forearm so that forearm is perpendicular to frame
when assembled to preloaded main arm(Illustration below).
Secure forearm to main arm with screw/washer assembly provided.
7. Adjust closing speed of door,
8. Snap pinion cap over shaft at bottom of closer.
INSTALLATION INSTRUCTIONS
1. Using template dimensions shown above, mark FORE(4)
HOLES ON FRAME for door closer and TWO(2) HOLES
ON DOOR for arm shoe.
2. Drill pilot holes in door and frame for #14 all-purpose screws
or drill and tap for 1/4-20 machine screws.
1
3/4
3. Install adjustable forearm/arm shoe to door using screws provided.
4. Mount closer on frame using screws provided. SPEED ADJUSTING
VALVE MUST BE POSITIONED TOWARD HINGE EDGE.
5. Install main arm to top pinion shaft, perpendicular to door as shown
below. Secure tightly with arm screw/washer assembly provided.
6. Adjust length of forearm so that forearm is perpendicular to door
when assembled to preloaded main arm(Illustration below).
Secure forearm to main arm with screw/washer assembly provided.
7. Adjust closing speed of door, Snap pinion cap over shaft at
bottom of closer.
Series 5000
Left hand door
PUSH
side of door
