Specifications
Main Power / amperage
Power receptacles (2)
Maximum HID wattage
Main Power / amperage
Power receptacles (2)
Maximum HID wattage
Trigger power supply (PXM-1&2)
Weight / Dimensions
Life Expectancy
All Sentinel Timers and
controllers offer a
3-year warranty.
Ask your retailer for
details.
Sentinel products are distributed by:
GPS / Global Product Solutions LLC.
PXM-1
15-amps @ 120-volt AC
120 volt Nema 5-15
1200 watts (on 120-volt)
PXM-2
15-amps @ 240-volt AC
240 volt Nema 6-15
2000 watts (on 240-volt)
PXM-1&2
120-volt, Nema 1-15 /
12-volt DC output
3 lbs / 8" x 4" x 3"
> 10 years
www.growgps.com

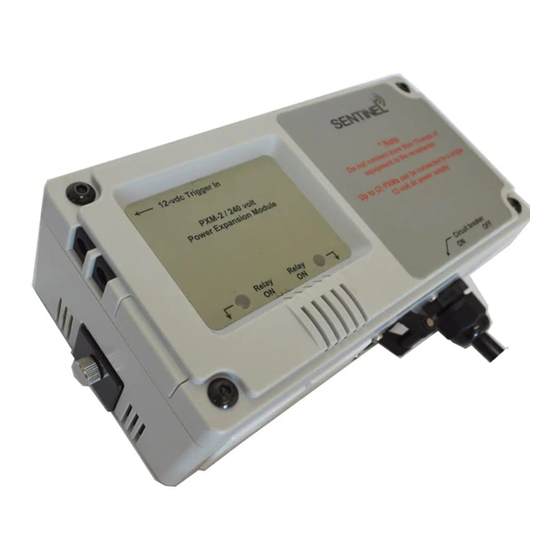

Instruction Manual
PXM-1&2
Power Expansion Module
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sentinel PXM-1
Summary of Contents for Sentinel PXM-1
-

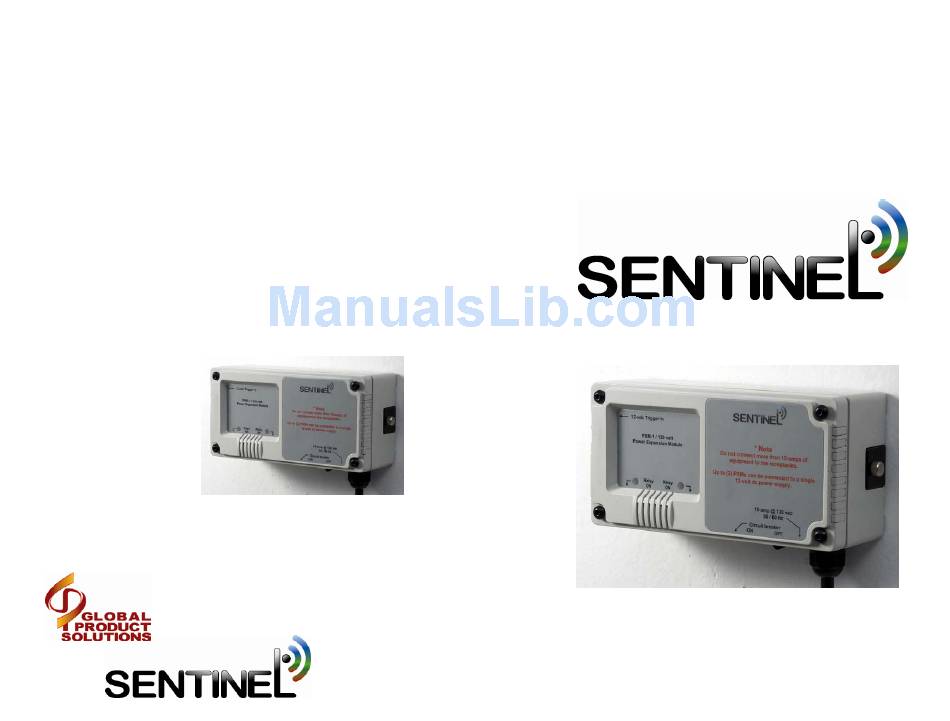

Page 1: Specifications
15-amps @ 240-volt AC Power receptacles (2) 240 volt Nema 6-15 Maximum HID wattage 2000 watts (on 240-volt) PXM-1&2 Trigger power supply (PXM-1&2) 120-volt, Nema 1-15 / 12-volt DC output Weight / Dimensions 3 lbs / 8” x 4” x 3” Life Expectancy >... - Page 2 PXM ON. Problem: The circuit breaker for the main power keeps shutting * The PXMs come in a 120 volt (PXM-1) and a 240 volt (PXM-2) OFF. The circuit breaker is protecting the circuit from overloading. The am- version.
- Page 3 HID lighting example A quick look at the PXM-1&2… 120-volt trigger power- supply connects to MDT-1, LED Indicator light High-impact HID-1 or a time-clock confirms heavy- thermoplastic duty relays are enclosure is tough energized. (On and attractive PXM-1 when trigger cable...
- Page 4 Large load devices example In order to ensure a safe and proper installation of the PXMs, The most common use for the PXM-1&2 is to be able to follow the steps below. control larger equipment and additional lights. The PXMs have high-power relays inside that turn the devices connected to it ON 1) Select the location for the device to be used.
