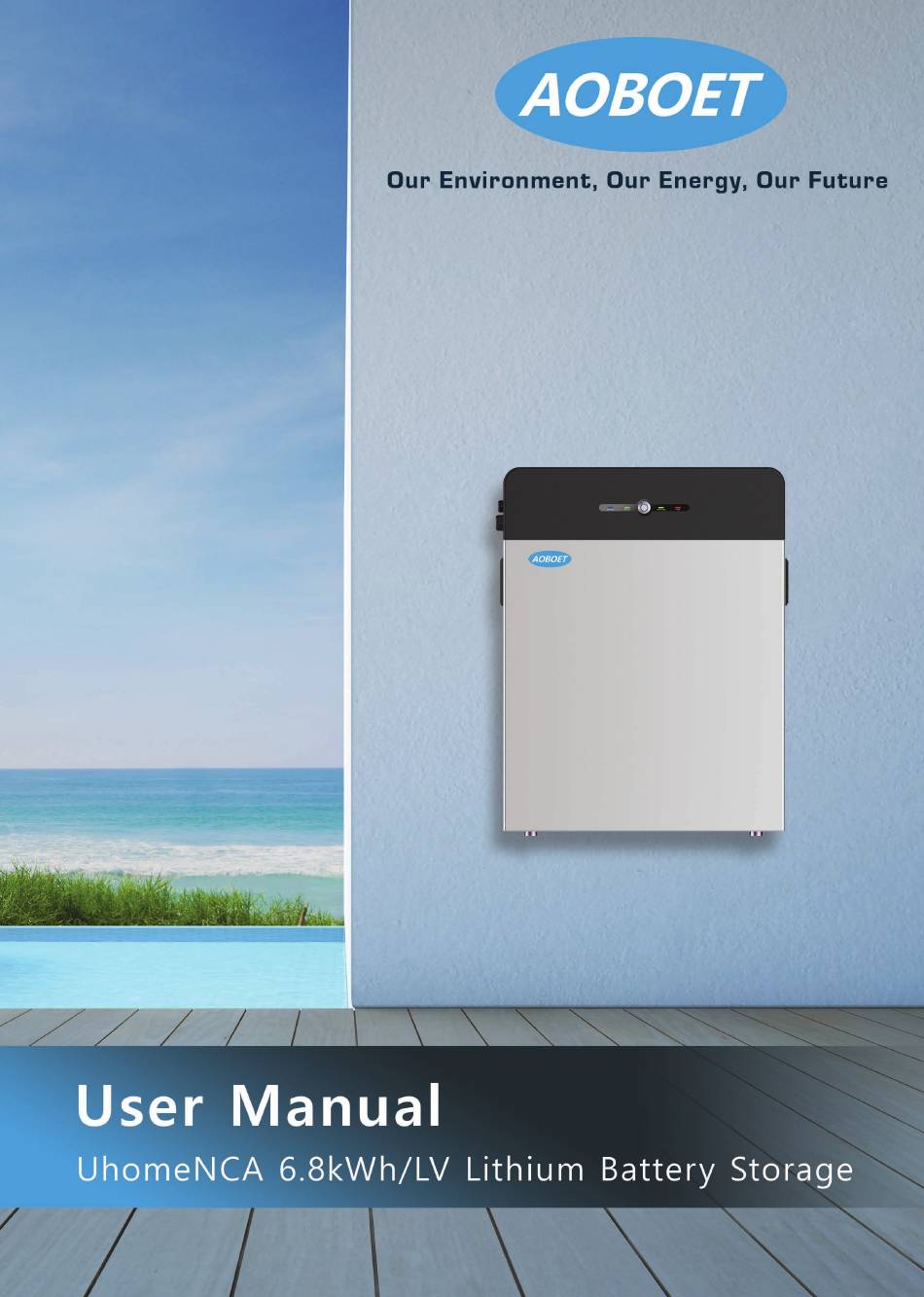

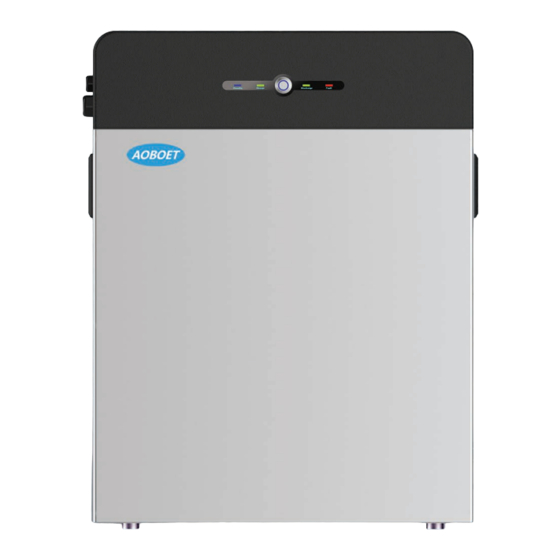

- Page 2 This manual is intended for the AOBOET Uhome-NCA 6.8kWh Energy Storage battery, but the hybrid inverter and any other equipment is not included. The AOBOET hot line and http://ess.aoboet.com.au are both available if you want to get additional information. Compliant to Best Practice Guide for Battery Storage Equipment - Electrical Safety Requirements- version 1- Pre-assembled integrated battery energy storage system equipment –...
-
Page 3: Table Of Contents
About this manual Statement 1. Safety introduction 1.1 Important Safety Instructions 1.2 Warnings in this Document 1.3 Battery handling guide 1.4 Response to emergency situations 1.5 Installers 1.6 APP download 1.7 Contact Information 2. Product introduction 2.1 Technical data 2.2 Exploded views of battery 2.3 Indicator and ports 2.4 Communication interface plat 2.5 How it works... - Page 4 5. Battery Installation 5.1 Unpacking 5.2 Package Items 5.3 Checks before installation 5.4 Installing the battery 5.5 Cable connections 5.6 Parallel connection 6. Configuration 6.1 Configure device WIFI 6.2 Register your account 6.3 Setting for communication interface 6.4 Settings for CAN/485 bus pins 7.
-
Page 5: Important Safety Instructions
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the AOBOET equipment and/or other equipment connected to the AOBOET equipment or personal injury. -
Page 6: Battery Handling Guide
The battery shall not be connected directly to SELV circuit. 1.4 Response to emergency situations The AOBOET U-HOME battery is designed with multiple safety strategies to prevent hazards resulting from failures. However, AOBOET cannot guarantee their absolute safety for uncertain situations. -
Page 7: Installers
Damaged battery is not suit for use and may pose a danger to people or property. If the battery seems to be damaged, return it to AOBOET or your distributor. CAUTION... -
Page 8: Technical Data
Certification Safety Battery Pack TUV (IEC 62619, IEC 62040) Hazardous Materials Classification Class 9 Transportation UN38.3 (UNDOT) Testing conditions based on temperature 25°C, at the beginning of life. * Total Energy/Usable Energy measured under specific conditions from AOBOET 0.2C CC-CV) -
Page 9: Exploded Views Of Battery
2.2 Exploded views of battery 2.3 Indicator and ports 2.3.1 Indicator There are four LED indicators on the front of the battery to show its operating status. Table 2-1 Designations on the battery Item Designation Definition Standby Caution, risk of electric shock Charge Heavy enough may cause severe injure Discharge... -
Page 10: Communication Interface Plat
2.3.2 Ports The power cable connectors and communication cable 1- Data cable interface 2- Power cable interface 2.4 Communication interface plat Communication interface for battery or master battery with Inverter Communication interfaces for batteries between parallel connected J3 & J4 batteries SW1 &... -
Page 11: How It Works
2.5 How it works 2.6 Feature The AOBOET Uhome Energy Storage battery has following features: • Energy storage unit: This battery is suit for photovoltaic system compatibility. • Battery management system (BMS): The battery built-in BMS monitors its operation and prevents the battery from operating outside design limitations. - Page 12 These products shall be handled with care and immediately inspected if visibly damaged. If the cartoon visibly damaged, please contract with AOBOET hotline to confirm whether the battery could be use safely or not.
-
Page 13: Installation Location
No corrosive gases present, including ammonia and acid vapor. The AOBOET Uhome battery is rated at IP65, so the battery could be installed outdoors as well as indoors. But if installed outdoors, do not allow the battery to be exposed to direct sunlight or moisture. -
Page 14: Installation Materials
Make sure that the cross-sectional area of charging cables is 25 to 35 mm . 2 NOTICE A breaker between aoboet battery and inverter was recommended to install, and the breaker’s min. current should be over 150A or following with local regulations. -
Page 15: Tools
Insulated Glove Safet Goggles Safety Shoes 4.7 Making network cable The network cable between AOBOET battery and inverter should be made like that diagram. If available, use a LAN cable tester to see whether the cable is faulty. -
Page 16: Storage
4.8 Storage If the battery is not to be installed immediately, or removed from operation and needs to be stored for a long period, please choose an appropriate location to store it. Instructions for storage are: • Do not stack more than four battery boxes. •... -
Page 17: Unpacking
5.1 Unpacking WARNING The battery is 62kg and it is too heavy for one to carry. Make sure that two or more persons are available. Cut the packing belt and remove the pvox top cover. Remove the bracket. -
Page 18: Package Items
Take out the battery with hand hole incardboard. Pull out the battery pack and stand it upright.Check if the battery pack is damaged. 5.2 Package items These items are included in the package. Battery Bracket Screw Anchors M6*4 Screws M5*2 Cable Lug 25-8*4 RJ45 Plug*2... -
Page 19: Checks Before Installation
Make sure the main breaker behind the OFF position until it cannot go any further and then push it to the ON position. If the breaker moves to any other positions by itself, do not use the battery. Contact AOBOET hot line or your distributor. -
Page 20: Installing The Battery
If the voltage is lower than 43 V, do not use the battery and contact AOBOET hot line or your distributor. Switch the main breaker OFF, and then measure the voltage at the terminal block with a voltmeter again. - Page 21 Drive the screw anchors through the mounting bracket into the holes. Tighten the screws to a torque of 2.5 N·m. Fasten the mounting beam to battery. Fixing the battery to bracket with screws.
-
Page 22: Cable Connections
5.5 Cable connections WARNING Before connecting battery with inverter, please make sure that no in- verter connected or the inverter turned off. 5.5.1 Connect the data cable Feed a data cable through the large grommets and then through the data cable entries make sure the SW4 DIP switch select 0012. - Page 23 5.6.2 Connecting the power cables for battery Feed another pair of power cables through master and slave battery’s large grommets and then through each of the large cable entries. CAUTION Uhome-NCA 6.8kWh/LV energy storage battery only could be used by parallel mode if two or more batteries installed.
-
Page 24: Configure Device Wifi
If parallel connecting multiple batteries, please set the DIP switches as following: 6.1 Configure device WIFI The AOBOET Uhome battery has a built-in WIFI module for use with the aoboet APP. Remove the cover by pulling it up to expose the SD card board. The WIFI setting of battery should be as following Press and hold the white button for 7 seconds on SD card board. - Page 25 Connect the “USR-WIFI232-XX_XXXX” with your smart phone, and then the light of WIFI will turn on by itself within 5 seconds Open the APP monitor of battery, select “Config Device Wifi” option box. Search and select SSID connected and input the password, press ok and finish.
-
Page 26: Register Your Account
6.2 Register your account The AOBOET Uhome battery has a built-in WIFI module for use with the aoboet APP. Note The AOBOET Uhome battery could be registered only one time. Open the APP monitor of battery, select “Register” option box. -
Page 27: Setting For Communication Interface
6.3 Setting for communication interface For Uhome-NCA 6.8kWh Energy Storage battery, the limit of parallel number is 4. For each connecting mode, the DIP switch SW5 dial mode like following tables 5-2. Table 5-2 The DIP switch SW5 selected for 1 battery connected with inverter Parellel Battery Group DIP Switch... -
Page 28: Settings For Can/485 Bus Pins
As SW3 the CAN/485 GND DIP switch, installer should confirm which pin is used for ground by inverter or not. Note The battery default protocol is CAN bus, if a inverter communication mode is RS485 or other protocol, please contact aoboet hot line before installed the battery. -
Page 29: Commissioning Battery
4. Make sure that the Standby light is on. If it stays off, do not use the battery and contact AOBOET or your distributor. 5. Turn the inverter on, and wait for the start-up sequence to complete fully. -
Page 30: Troubleshooting
2. If the battery fault light on, pls check the Troubleshooting number in Homepage in your aoboet APP, if the code is 0x1***, this problem would be recovered by itself. But if the code is 0x2*** or 0x3***, please contact the AOBOET after service hot line or your distributor for help. - Page 31 It is possible to update the BMS firmware version manually via using a SD Memory card or via the WIFI monitor system App. After a new firmware version is upload to the server, the firmware could be updated over the Internet by itself after holder confirmed.
