Change History
Revision
Date
Version 1.0
2015 / 09 / 11
Version 1.01
2015 / 09 / 11
Version 1.02
2015 / 09 / 17
* This document contains confidential proprietary information and is property of LTC. The contents of this
document should not be disclosed to unauthorized persons without the written consent of LTC.
WB116A
USER MANUAL
Bluetooth Module
Model Name: WB116A
Version 1.0
Author: Kaysa Lee
Author
Change List
Kaysa Lee
Preliminary
Kaysa Lee
Add PCB information
Kaysa Lee
Add Silkscreen Information
Page 1/10
2015/10/15
Advertisement
Related Manuals for LiteOn WB116A
Summary of Contents for LiteOn WB116A
- Page 1 USER MANUAL Bluetooth Module Model Name: WB116A Version 1.0 Author: Kaysa Lee Change History Revision Date Author Change List Version 1.0 2015 / 09 / 11 Kaysa Lee Preliminary Version 1.01 2015 / 09 / 11 Kaysa Lee Add PCB information Version 1.02 2015 / 09 / 17 Kaysa Lee Add Silkscreen Information * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. ...

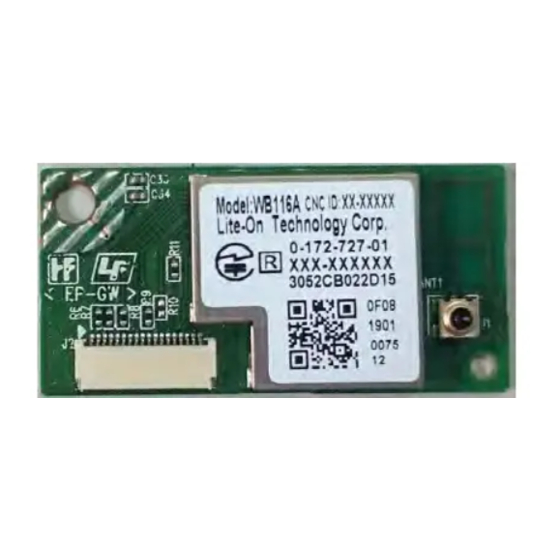

- Page 2 1 P RODUCT VERVIEW 1.1 D ESCRIPTION WB116A (X type/Y type) is a Bluetooth module which using Airoha Chipset AB1520H 1.2 F EATURES Fully qualified Bluetooth ® v3.0 system Class I (Max +5 dBm) Codec: SBC / AAC Content Protection: SCMS‐T RoHS compliance Low Halogen compliance 1.3 G ENERAL PECIFICATIONS Main Chipset AB1520H Standard Bluetooth V3.0 Profiles A2DP Sink / AVRCP / SPP / DID Digital Audio Output (I2S/SPDIF) Bus Interface ...
- Page 3 ANEL RAWING 1.4 S HIELDING OVER WB116A Page 3/10 2015/10/15...
- Page 4 1.5 C ERTIFICATION Country Regulatory Approval ID Remarks United States FCC Part15C PPQ‐WB116A FCC ID: PPQ‐WB116A Canada RSS‐247 4491A‐WB116A IC:4491A‐WB116A EN300 328 v1.9.1 EN301 489‐1/‐17 Europe CE logo + NB number EN60950 EN62311 Japan TELEC Taiwan NCC Russia FAC China SRRC UAE ...
-
Page 5: Regulatory Statements
This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2P. WB116A Page 5/10 2015/10/15... -
Page 6: Important Note
Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. WB116A Page 6/10 2015/10/15... -
Page 7: Label Of The End Product
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: PPQ-WB116A ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. - Page 8 Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. WB116A Page 8/10 2015/10/15...
- Page 9 (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX IC : 4491A-WB116A ". Antenna list: Brand Ant.
- Page 10 Modifying and augmenting networks has never been so easy. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. WB116A Page 10/10 2015/10/15...
