Communication

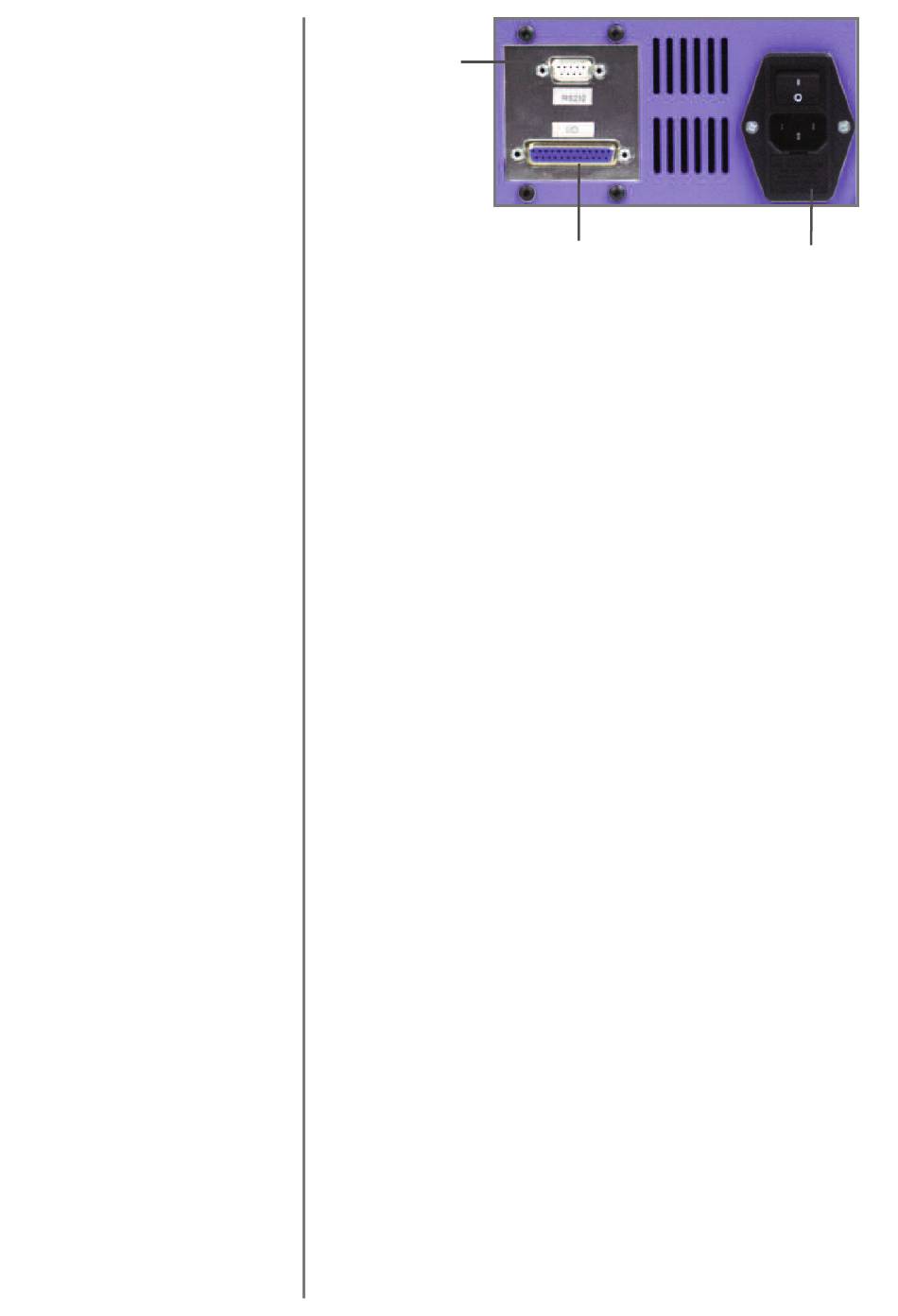

Stand Stop with AFTI
RS232
connector
9-way
A 25-Way Female D-type Connector is fitted at the back of
the stand (I/0 Interface), containing connections for the
stand stop and RS232 connection to a Mecmesin AFTI.
The stand will respond to the appropriate stand stop signal
from an AFTI via a connection at the back of the stand
using cable 351-074, which will stop the turntable (for any
further information, please refer to the AFTI Operating
Instructions).
A 9-Way Female D-type Connector is fitted at the back of
the stand and contains RS232 connection to a PC.
When the I/0 Interface, including RS232 connection, is
plugged into the AFTI and the 9-Way RS232 connection is
plugged into the computer, Emperor™ Lite software can be
used. This shows the accumulated data graphically, plotting
torque from the AFTI, and angular displacement from the
stand.
I/0 Interface
25-way
Mains
Inlet
Connector
page 7
