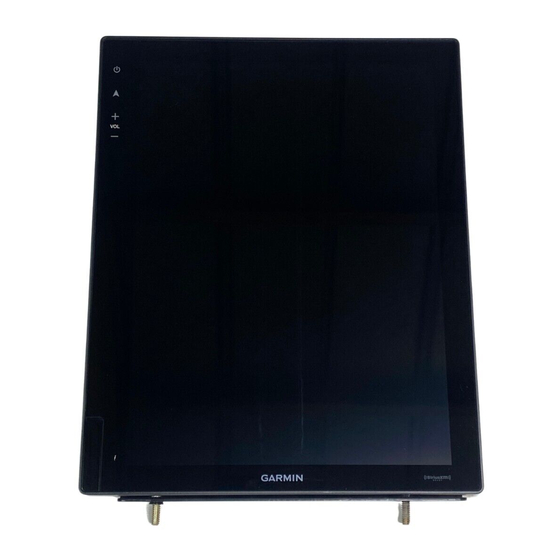

Garmin RV-IN1501 Installation Instructions

Rv infotainment system

Hide thumbs Also See for RV-IN1501:

Download this manual

Table of Contents

Important Safety Information........................................ 2

Connector Identification................................................ 2

Wiring Harnesses ....................................................................... 2

Connecting Vehicle and Backup Cameras ................................. 3

Installing the Infotainment System............................... 4

Stereo Information ......................................................... 4

Specifications .............................................................................. 4

Need help?

Do you have a question about the RV-IN1501 and is the answer not in the manual?

Page 1 Table of Contents Important Safety Information........2 Connector Identification..........2 Wiring Harnesses ............... 2 Connecting Vehicle and Backup Cameras ......... 3 Installing the Infotainment System....... 4 Stereo Information ............4 Specifications ................4...
Page 2: Important Safety Information
Item Label Description Connector Details CAMERA Input for camera Left (white) and right (red) RCA RV-IN1501 AUDIO audio or for connectors INPUT/AUX auxiliary 2 RV INFOTAINMENT SYSTEM 2 INPUT None Ethernet port Connects to a FUSION INSTALLATION PartyBus ™ network...
Page 3 Backup camera AUX IN 2 Not used. These connectors are Not used not active for the RV-IN1501 Connect the analog high signal wire for the backup camera to product model. You must use the the pink REVERSE wire of the power and speaker wiring...
Page 4: Specifications
© 2018 Garmin Ltd. or its subsidiaries Garmin ® , the Garmin logo, FUSION ® , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Android is a trademark of Google Inc. Apple ®...
