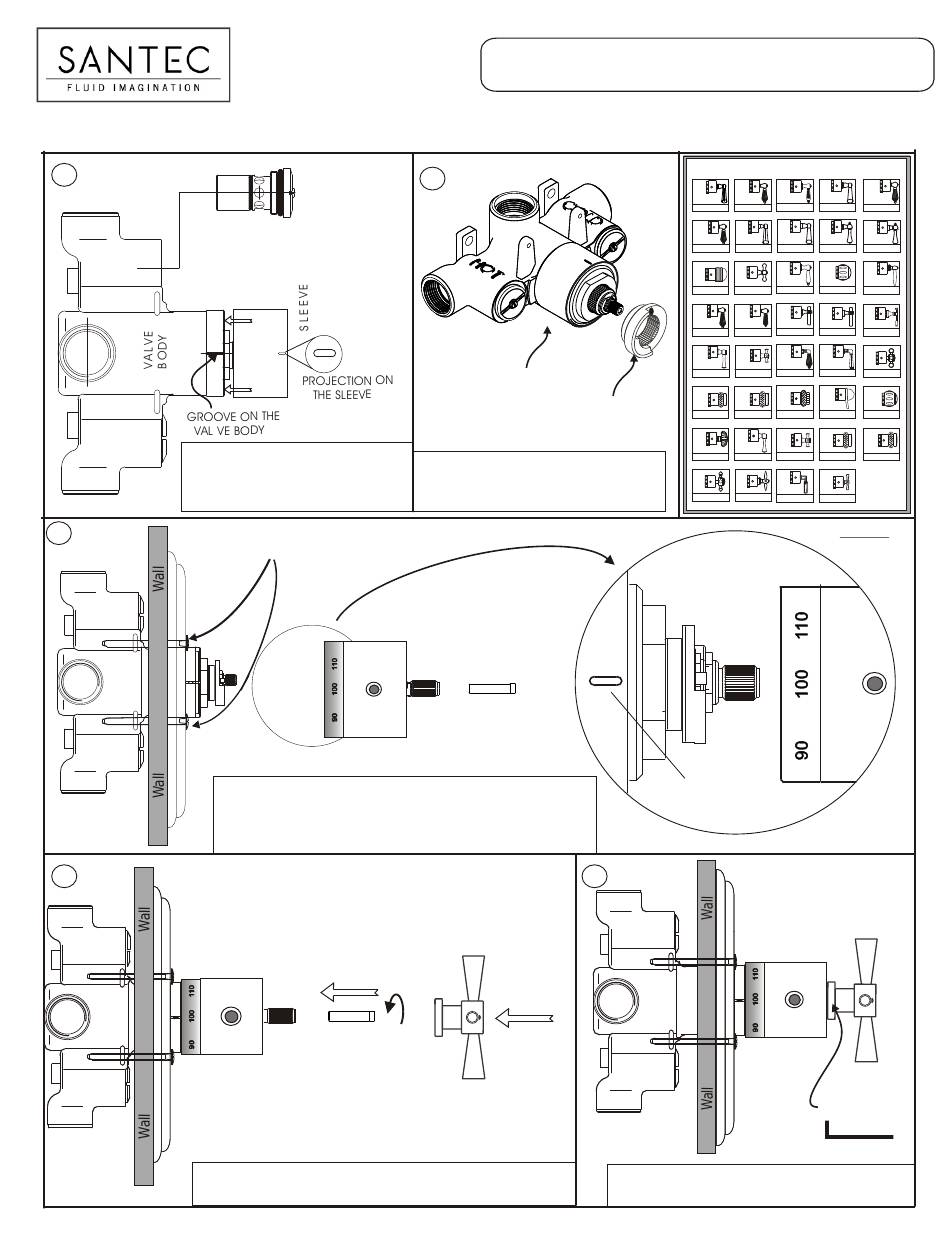

Santec TH-5034 Installation Instructions

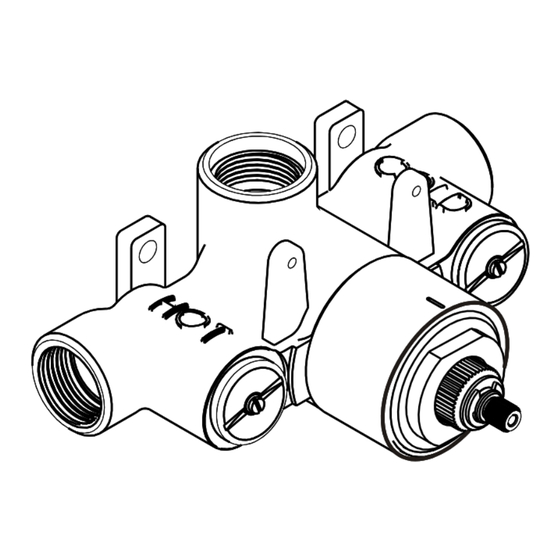

TH-5034 (3/4" THERMAX THERMOSTATIC VALVE AND TRIM)
1
Align the projection on the
sleeve with projection on the top
lip of the body and then slide
it on the valve body.
3
Plate Mounting Screws
Put on the plate aligned to the wall and screw in
the plate mounting screws.
Put on the thermostatic dial on the valve stem.
Match 100 mark with the center mark on the sleeve
to adjust the temperature at lowest level.
4
Temperature Dial
INSERT THE NUMERICAL DIAL MOUNTING SCREW THROUGH THE
COAXIAL HOLE IN THE TEMPERATURE DIAL STEM.
2
SLEEVE IS ON THE
VALVE BODY FULLY
When sleeve is fully on the valve body
temperature limiter will go to the stem
aligning the mark on the limiter to the mark
on the sleeve and body.
Numerical Dial
Mounting Screw
Temperature Dial
Numerical Dial
Mounting Screw
INSTALLATION INSTRUCTIONS
TEMPERATURE
LIMITER
CENTER MARK
5
PUT ON THE HANDLE ON THE STEM AND SCREW
IN THE SET SCREW BY THE PROVIDED ALLEN KEY.

HANDLE TRIM

AA BF CA
AC CC
00TH-BF * 00TH-CA *
00TH-AA * 00TH-AC * 00TH-CC *
CD CN CV
DD DV
00TH-CD * 00TH-CN * 00TH-CV * 00TH-DD * 00TH-DV *
ER HH JC LA
FF
00TH-ER * 00TH-FF * 00TH-HH * SAME AS TL * PH-1111-1 *
LL LM LS LV
LC
00TH-LC * 00TH-LL * 00TH-LM * 00TH-LS * 00TH-LV *
ML MX NC NL
NX
00TH-ML * 00TH-MX * 00TH-NC * 00TH-NL * 00TH-NX *
RE RX SL TL
RP
00TH-RE * 00TH-RP * 00TH-RX * 00TH-SL *
00TH-NX *
VX
TT VL WE WG
00TH-VX * 00TH-WE *
00TH-TT * 00TH-VL * 00TH-WG *
XL XA
TD
TX
00TH-XL * 00TH-XA *
00YY-TD 00YY-TX
Top View
Set Screw
Allen key
Page 1
