Automatic

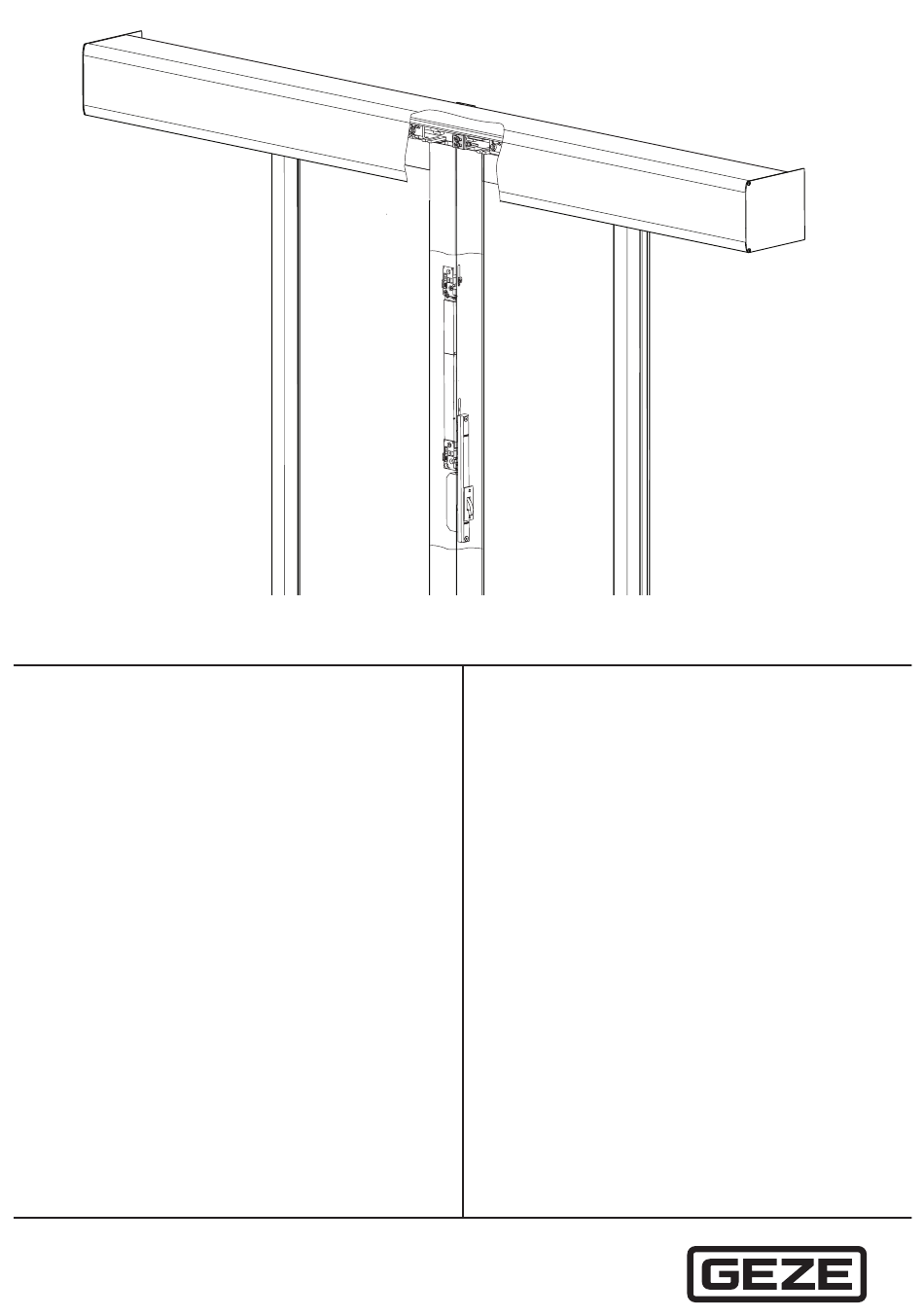

EN Installation instructions
Hook Bolt Lock A
186500-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hook bolt Lock A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEZE Hook bolt Lock A

Summary of Contents for GEZE Hook bolt Lock A

  • Page 1 Automatic EN Installation instructions Hook Bolt Lock A 186500-00...

  • Page 2: Table Of Contents

    Tools and aids ........................................6 Torques ..........................................6 Installation ..................................7 Installing hook bolt lock A in the side screen profile ..........................7 Installing the transmission element with ECdrive ..........................12 Installing the transmission element with ECdrive T2 ........................18 Installing the transmission unit with Slimdrive SL NT ........................23 Post installation, 1-leaf ....................................

  • Page 3: Introduction

    Hook bolt Lock A Introduction Introduction 1. 1 Symbols and illustrations Warning notices In these instructions, warnings are used to warn against material damage and injuries. Always read and observe these warnings. Observe all measures marked with the warning symbol and warning word .

  • Page 4: Abbreviations

    à The country-specific laws and regulations are to be observed during safety-related tests. à If unauthorised changes are made to the system, GEZE cannot be held liable in any way whatsoever for any resulting damage, and the approval for use in emergency exits ceases.

  • Page 5: Inspection Of The Installed System

    à Do not dispose of batteries and rechargeable batteries with household waste. à Comply with the statutory regulations when disposing of the door system and the batteries/rechargeable batteries. Qualification Installation of the GEZE sliding door drive may only be carried out by experts authorised by GEZE. Overview 3. 1 Diagrams Drawing no.

  • Page 6: Tools And Aids

    Overview Hook bolt Lock A Tools and aids Tool Size/remark Tape measure Marking pen Torque spanner Allen key 1.5 mm; 2.5 mm; 4 mm; 5 mm Open-ended spanner 8 mm; 10 mm; 13 mm; 15 mm Ring spanner 8 mm; 10 mm...

  • Page 7: Installation

    Hook bolt Lock A Installation Installation 4. 1 Installing hook bolt lock A in the side screen profile 4. 1 . 1 Install the strike plate in the side screen (1- and 2-leaf) 153 719 M5 × 8/T25 5 Nm...
  • Page 8 Installation Hook bolt Lock A 4. 1 .2 Install the drive and hook bolt locks in the side screen bolts The hook bolt locks are available in versions with single or double locking. The illustration below shows the ver- sion with double locking in the locked state.
  • Page 9 Hook bolt Lock A Installation Preparation for installation – version with one hook bolt lock 1.5 Nm...
  • Page 10 Installation Hook bolt Lock A Preparation for installation – version with two hook bolt locks 1.5 Nm...
  • Page 11 Hook bolt Lock A Installation Installing the hook bolt locks Push the connecting link arm in until the marking can be seen as shown in the diagram on the right. The optimum position for the installation of the hook bolt locks has then been reached.

  • Page 12: Installing The Transmission Element With Ecdrive

    Installation Hook bolt Lock A Attaching the rubber seals (illustration with 2 hook bolt locks) Installing the transmission element with ECdrive 4.2. 1 ECdrive, 1-leaf, right hand slide to open Adjust the position of the stop buffer in closed position without rubber buffer after door installation and calibration.
  • Page 13 Hook bolt Lock A Installation Installing the unit without spring-mounting M6 × 12 8 Nm M4 × 12/T20 5 Nm Move the moving leaf towards the closed position. Closed position Open position...
  • Page 14 Installation Hook bolt Lock A Closed position ±1...
  • Page 15 Hook bolt Lock A Installation 4.2.2 ECdrive, 1-leaf, left hand slide to open, 2-leaf Adjust the position of the stop buffer after door installation and calibration. When the door is closed the stop buffer must not be flush. The distance should be about 1 mm.
  • Page 16 Installation Hook bolt Lock A Installing the unit without spring-mounting M6 × 12 8 Nm M4 × 12/T20 5 Nm Move the moving leaf towards the closed position. Open position Closed position...
  • Page 17 Hook bolt Lock A Installation Closed position ±1...

  • Page 18: Installing The Transmission Element With Ecdrive T2

    Installation Hook bolt Lock A Installing the transmission element with ECdrive T2 4.3. 1 ECdrive T2, 1-leaf, right hand slide to open Adjust the position of the stop buffer in closed position without rubber buffer after door installation and calibration.
  • Page 19 Hook bolt Lock A Installation Move the moving leaf towards the closed position. Closed position Open position Closed position ±1...
  • Page 20 Installation Hook bolt Lock A 4.3.2 ECdrive T2, 1-leaf, left hand slide to open, 2-leaf Installing the spring-mounted unit Screw the spring-mounted unit (1) to the buffer (2).
  • Page 21 Hook bolt Lock A Installation Installing the unit without spring-mounting M4 × 12/T20 5 Nm M6 × 12 8 Nm Move the moving leaf towards the closed position. Open position Closed position...
  • Page 22 Installation Hook bolt Lock A Closed position ±1...

  • Page 23: Installing The Transmission Unit With Slimdrive Sl Nt

    Hook bolt Lock A Installation Installing the transmission unit with Slimdrive SL NT The illustrations below show the versions 2-leaf and 1-leaf left hand slide to open. Implementation of the 1-leaf right hand slide to open version is reversed accordingly.
  • Page 24 Installation Hook bolt Lock A Adjust the position of the spring-mounted unit and set up the cable connection between the moving leaf and the transmission unit Closed position ±1 M5 × 12/SW4 4 Nm Fit the plug connection together Insert the plug connection downwards into the HSK profile.
  • Page 25 Hook bolt Lock A Installation Setting the stop buffer 1 mm Fixing the cable Fix the cable using a cable tie (1). Route the cables in such a way that they do not catch on or rub against moving parts.

  • Page 26: Post Installation, 1-Leaf

    Installation Hook bolt Lock A Post installation, 1-leaf 4.5. 1 1-leaf system at a wall corner with or without side part 1-leaf left hand slide to open, without side part The illustrations below show the version 1-leaf left hand slide to open without side part. Implementation of the 1-leaf right hand slide to open version is reversed accordingly.
  • Page 27 Hook bolt Lock A Installation O K F F 25 mm Use 4 screws (5) to screw the side screen profile (4) provisionally to the square post at the top and bottom. Shorten the side screen profile (4) at the top if necessary.
  • Page 28 Installation Hook bolt Lock A Adjusting the height in relation to the door leaf Adjust the position of the lower edge of the side screen profile post to 4 mm below the side screen profile leaf (8) OKFF 4 mm 4.5.2...
  • Page 29 Hook bolt Lock A Installation 30 mm Mount the wall profile (3) with screws (4) on the wall, underlay if necessary.
  • Page 30 Installation Hook bolt Lock A 75 mm O K F F Screw the side screen profile (2) with screws (5) through the wall profile (3) on the wall. Adjusting the height in relation to the door leaf Adjust the position of the lower edge of the side screen profile post (2) to 4 mm below the side screen profile...

  • Page 31: Emergency Activation

    Hook bolt Lock A Installation Emergency activation If electric locking/unlocking is not possible, Lock A can be locked/unlocked manually. A tool with a diameter of approx. 5 mm e.g. a Pozidrive screwdriver PZ1 is required for emergency activation. Manual unlocking of Lock A Only unlock Lock A manually if electric unlocking is not possible.
  • Page 32 Installation Hook bolt Lock A Manual locking of Lock A Only lock Lock A manually if electric locking is not possible.

  • Page 33: Service And Maintenance

    Hook bolt Lock A Service and maintenance Service and maintenance The following mandatory maintenance work must be carried out at least once a year by properly trained personnel. If there is a display programme switch, the service display lights up or flashes in the display.
  • Page 34 Installation Hook bolt Lock A...
  • Page 35 Hook bolt Lock A Installation...
