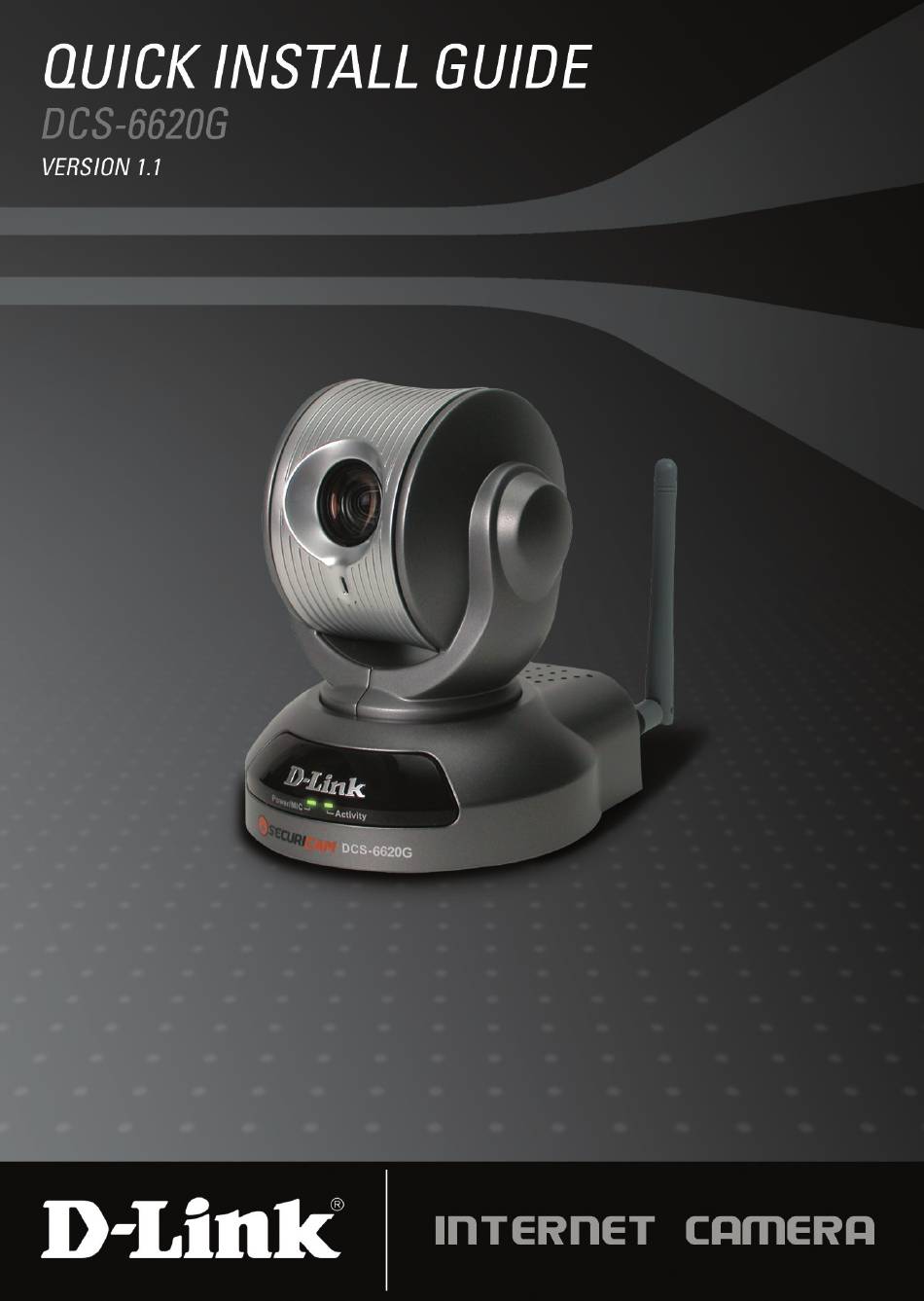

D-Link DCS-6620G Quick Install Manual
  1. Manuals
  2. Brands
  3. D-Link Manuals
  4. IP Camera
  5. DCS-6620G - Network Camera
  6. Quick install manual

D-Link DCS-6620G Quick Install Manual

Hide thumbs Also See for DCS-6620G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-6620G

Summary of Contents for D-Link DCS-6620G

  • Page 2 System Requirements DCS-660G Install Guide D-Link Systems, Inc.
  • Page 3 DCS-660G Install Guide Hardware Overview Motorized Zoom Lens Built-In Microphone Link LED Power LED D-Link Systems, Inc.

  • Page 4: Hardware Overview

    External I/O Port External Mic. Ethernet 10/100 RJ45 socket Power Cord socket Connect the power adapter jack to the Network Camera before plugging in to the power socket. This will reduce the risk of accidental electric shock. D-Link Systems, Inc.

  • Page 5: Hardware Installation

    Connect the Ethernet Cable Connect one end of the Ethernet cable to the network cable connector located on the back panel of the DCS-6620G, and attach the other end to a router, switch, or gateway on the network. If you connect this camera directly to a PC, you will need a cross-over Ethernet cable.
  • Page 6 DCS-660G Install Guide Attach the A/V cable to the A/V out connector if you wish to connect the DCS-6620G to your TV set. Note: Audio Out from the A/V port is for connecting a speaker to the camera so that a person in front of the camera can hear the person on the other end of the communication.

  • Page 7: Installation Wizard

    DCS-660G Install Guide Installation Wizard Insert the DCS-6620G CD into the CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Windows Start > Run. In the Run command ® box type “D:\DCS6620G.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed to the next screen.
  • Page 8 Installation Wizard (continued) DCS-660G Install Guide Click Next Click Next Click Finish D-Link Systems, Inc.

  • Page 9: Camera Configuration

    The software will search for cameras. The Installation Wizard will now show a MAC address of the DCS-6620G and an IP Address (which may or may not be correct depending on what you have your DCS-6620G connected to).
  • Page 10 Let go when the red LED starts to flash the second time. Click Search to refresh the list of cameras if needed. Once the camera appears, select the camera by placing a Checkmark in the box. D-Link Systems, Inc.
  • Page 11 Camera Configuration (continued) Click the Setup button. Enter an administrative password in the Admin password and Confirm password fields. Click the Next button. For details on the Date/Time Settings, please refer to the User Manual on the CD-ROM. D-Link Systems, Inc.
  • Page 12 DCS-660G Install Guide Uncheck the box labeled Reset IP address at the next boot. Click the Next button. If you need to modify the IP settings, please refer to the user manual on the CD-ROM. Click the Apply button. D-Link Systems, Inc.
  • Page 13 DCS-660G Install Guide Camera Configuration (continued) After the settings have been saved, the Done button will appear. Click the Done button. Click the button labeled Link to Selected Device(s). D-Link Systems, Inc.
  • Page 14 Leave the box titled This camera can be found by installer whenever it starts up, unchecked to avoid running this install application each time you boot up the DCS-6620G. Check this box if you need to change the IP Address next time the DCS-6620G boots up.
  • Page 15 Admin, from the Home page to set up a password for security purposes. Enter the administrative password. Click Save then “X” at the top right-hand corner of your browser to close the page. The installation of the configuration of the DCS-6620G Network Camera is now complete. D-Link Systems, Inc.
