ExCos-D
Transducer for ExPro-C... sensors (probes)
ExPro-C... Temperature/humidity sensors (°C, %rH)
Electrical, explosionproof transducers only connectable to ExPro-C...
temperature and humidity sensors.
24 VAC/DC supply, 0...10 V / (0)4...20 mA output
PTB-certified in acc. with ATEX directive 94/9/EC for zone 1, 2, 21, 22.
Transducer
Type Supply Installation area
ExCos - D 24 VAC/DC zone 1, 2, 21, 22
ExCos - D - A as above, but with additional intrisically safe analogue output to connect an external digital indicator (0)4...20 mA (Ex-i)
ExCos - D...- CT Type as above but with aluminium housing and Amercoat painting (sensor connection cable glands nickel-plated, screws in stainless steel)
Connectable sensors (compulsory for ExCos-D... transducer) – see separate data sheet
Type Function
ExPro - CT... temperature
ExPro - CF... humidity
ExPro - CTF... combination temp./humidity –40...+125 °C* / 0...100 %rH 50/100/150/200 mm
Application
ExCos-D... transducer ExPro-C... sensor
Description
The ExCos-D... transducer generation from together with direct coupled
ExPro-C... sensors are a revolution for measuring temperature and/or
humidity in HVAC systems, in chemical, pharmaceutical, industrial and
Offshore- /Onshore plants, for use in hazardous areas zone 1, 2 (gas)
and zone 21, 22 (dust).
Highest protection class (ATEX) and IP66 protection, small dimension,
universal functions and technical data guarantee safe operation even
under difficult environmental conditions.
The measuring ranges are scalable within the maxium ranges. The
analogue output signal is either 0...10 VDC or (0)4...20 mA and can be
selected on site. The integrated display is for actual value indication
which can be switched off.
All sensors are programmable on site without any additional tools.
ExCos-D-A transducer are additionally equipped with a (0)4...20 mA IS
(IS = intrinsically safe) output, e.g. for an external indicator.
Schischek GmbH Germany, Mühlsteig 45, Gewerbegebiet Süd 5, 90579 Langenzenn, Tel. +49 (0)9101 9081-0, Fax +49 (0)9101 9081-77, E-Mail info-de@schischek.com
Connectable sensors
ExPro-CT..., ExPro-CF..., ExPro-CTF...
Measuring range
– 40...+125 °C *
0...100 % rH
* at 50 mm length –40...+80 °C

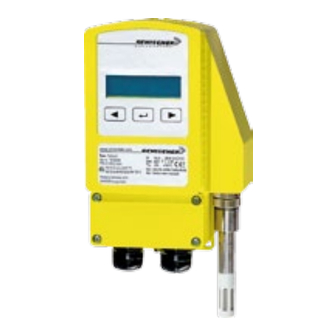

Example: room sensor
Shown:
ExPro-...-CTF...
Highlights transducer
 For all type of gas, mixtures, vapours and dust for use in zone 1, 2, 21 and 22
 No addional Ex-i module required
 No intrisically safe wiring /installation between panel and sensor required
 No intrisically safe wiring /installation and no space in the panel required
 Integrated Ex-e junction box
 Power supply 24 VAC/DC
 Display with backlight, can be switched off
 Scalable analogue output, selectable 0...10 V / (0)4...20 mA
 Compact design and small dimension ( L × W × H = 180 × 107 × 66 mm )
 Robust aluminium housing in protection class IP66
 Down to –20°C ambient temperature applicable
 Password locking
 Optional IS-output (0)4...20 mA for external indicator in Ex-areas
 CT versions have an excellent resistance to chemicals and seawater
Highlights sensor
 For all type of gas, mixtures, vapours and dust for use in zone 1, 2, 21 and 22
 Plug-and-socket connection to ExCos-D... transducer, removable
 The ExPro-C... probe appropriates the function (temperature, humidity or combination)
 Mounting of ExPro-C... probe (front/back side) appropriates use for duct or room application
www.schischek.com
Function of sensors
°C, % rH, combination °C/% rH via plug-and-socket connection
Length of sensor connectable to
50/100/150/200 mm ExCos-D..., RedCos-D... zone 1, 2, 21, 22
50/100/150/200 mm ExCos-D..., RedCos-D... zone 1, 2, 21, 22
ExCos-D..., RedCos-D... zone 1, 2, 21, 22
sensor length
Example: duct sensor
E X P L O S I O N P R O O F
Type of transducer:
ExCos - D
ExCos - D - A
ExCos - D... - CT
Type of sensor (probe):
ExPro - CT...
ExPro - CF...
ExPro - CTF...
Subject to change!
Sensor connection
Installation sensor Installation transducer
zone 1, 2, 21, 22 (ExCos...)
zone 1, 2, 21, 22 (ExCos...)
zone 1, 2, 21, 22 (ExCos...)
ExCos-D...-CT
Wiring diagram
SB 2.0
SB 3.0
