PSP Security AccuFACE EFR-T3 Series Quick Start Manual

Hide thumbs Also See for AccuFACE EFR-T3 Series:

Advertisement

Quick Links

Download this manual
Quick Start Guide
(External Preview Version)
© 2016 PSP Security Co. Ltd. All rights reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the AccuFACE EFR-T3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PSP Security AccuFACE EFR-T3 Series

Summary of Contents for PSP Security AccuFACE EFR-T3 Series

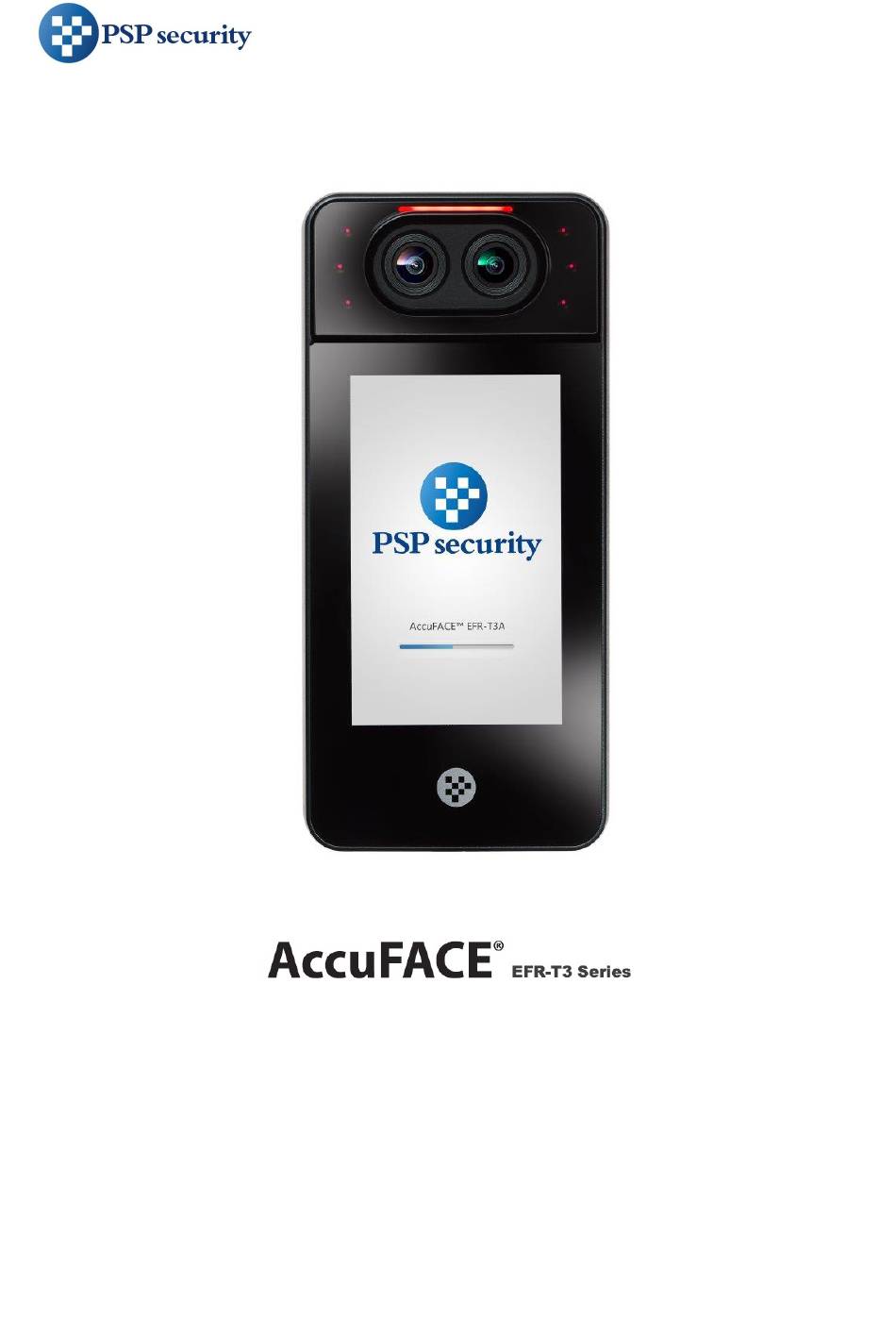

  • Page 1 Quick Start Guide (External Preview Version) © 2016 PSP Security Co. Ltd. All rights reserved...

  • Page 2: Establishing Connection

    A. Establishing Connection The following peripherals are required to operate AccuFACE:  12 VDC power supply with at least 2 Amps output  Ethernet cable Tamper Alarm DC 12V Power, 2Amp Ethernet o Left: Ground Jack o Right: 12V DC Attach the mounting bracket to the back of AccuFACE to keep tamper alarm off.
  • Page 3 B. Standalone Mode Enrollment In Standalone Mode, you can use touch screen to perform enrollment and system configuration without the need of network connection. Once powered up, AccuFACE shows below screen. Current date and Current Operating time Mode: 1:N Identification (1 to Many) Keypad to enter Standalone Mode...
  • Page 4 Default Root Passcode: 1234 Mode button Once authenticated, point to the “User” page to start “User Manager”. Select “User” page Start “User Manager” AccuFACE® EFR-T3 Series Quick Start Guide Version 1.0...
  • Page 5 Select the Enrollment page and fill in user information. Steps are: Click button to open on-screen keyboard for user ID/name editing “Enrollment” page  Enter User ID from on-screen keypad or badge a card to read card ID  User Name and Alias ID are optional ...
  • Page 6 When face is locked in green square box, enrollment proceeds Operating distance: 45~70 cm During the enrollment, gently tile the face up and down, then gently move closer and farther. If you wear glasses, you will be asked to remove the glasses half way through the enrollment. Follow the screen message and voice instructions to complete the enrollment.
  • Page 7 C. Quick Recognition Test Only enrolled user can be recognized. If user has not been enrolled, please refer to Section B and perform user enrollment. If AccuFACE is set to 1:N mode, simply approach to the machine to start authentication. Like enrollment, recognition will occur only when the face is locked at Green square box.
  • Page 8 Under 1:1 mode, enter User ID and Enter key to start verification If face is not locked at green square box, please move a little closer or farther from AccuFACE and gently nod head up and down. Recognition should occur. AccuFACE®...
  • Page 9 D. Standalone Mode Configurations Press the Standalone Mode button, and enter root passcode to enter Standalone Mode. If a root user is already registered, you need the root user face to be verified before entering. Select the Settings page, then press “Configurations” button Select “Settings”...
  • Page 10 Select Operating Mode: 1:N or 1:1 here Adjust Threshold of facial recognition if necessary Press “Submit” button for the changes to take effect. Then press the upper-right arrow to leave Standalone Mode. Press to leave Standalone Mode AccuFACE® EFR-T3 Series Quick Start Guide Version 1.0...

  • Page 11: Remote Configurations

    E. Remote Configurations By default AccuFACE gets an IP address automatically (with DHCP protocol), you can find the address at Status page. Find IP address here Open Web browser from your computer and connect to IP address (192.168.1.154 in this example). Then the authentication screen should be prompted.
  • Page 12 Once authenticated, you can see below System Status page. You can view log transactions by clicking “Log”, or access configuration pages by clicking “ADVANCED”. View log transactions here Click ADVANCED for configuration pages Similar with Standalone Mode, configurations are divided into multiple pages, for instance, you can configure operating mode (1:N or 1:1 mode) and recognition threshold at Facial Recognition page.
  • Page 13 F. More...

This manual is also suitable for:

Accuface efr-t3a
