A. Preparation The following peripherals are required for installing AccuFACE: Mounting bracket • 12 VDC power supply with at least 1.5 Amps output • Standard Ethernet cable • Screws 4~6x • Special screws 2x • B. Wiring Back Panel Below describes the functionalities of back panel at the back of the AccuFACE. Serial Number Label Tamper...
Page 3
Port Pins The AccuFACE has four ports located at the back of the unit, for power supply, digital I/O, communication, and network interface. Port Pin# Definition & Color 12V POWER SUPPLY (Power) 12V POWER GND Brown 12V DC OUT Black 12V DC OUT Pink DOOR SENSOR INPUT...
C. Installation Installing Follow below steps to install AccuFACE: Decide the appropriate height to mount AccuFACE (see the table below) Apply screws to tighten the mounting bracket on the wall Ensure AccuFACE is vertically installed and parallel to a vertical wall Ensure power, network, communication, and I/O cables are available from...
Page 6
Connect all the cables to the ports, and mount AccuFACE gently Hook the top of the bracket and press it down. Slide the unit down to reach the bottom of the bracket Power up AccuFACE to test if all the cables are connected correctly Finally, mount two special screws at the...
Page 7
Installation Height Consideration More about installation height: For installation with multiple AccuFACE, all units (including unit used for • user enrollment) must be installed at the same height Installation height depends on end user’s minimum and average height • See below table to find the appropriate installation height •...
Page 8

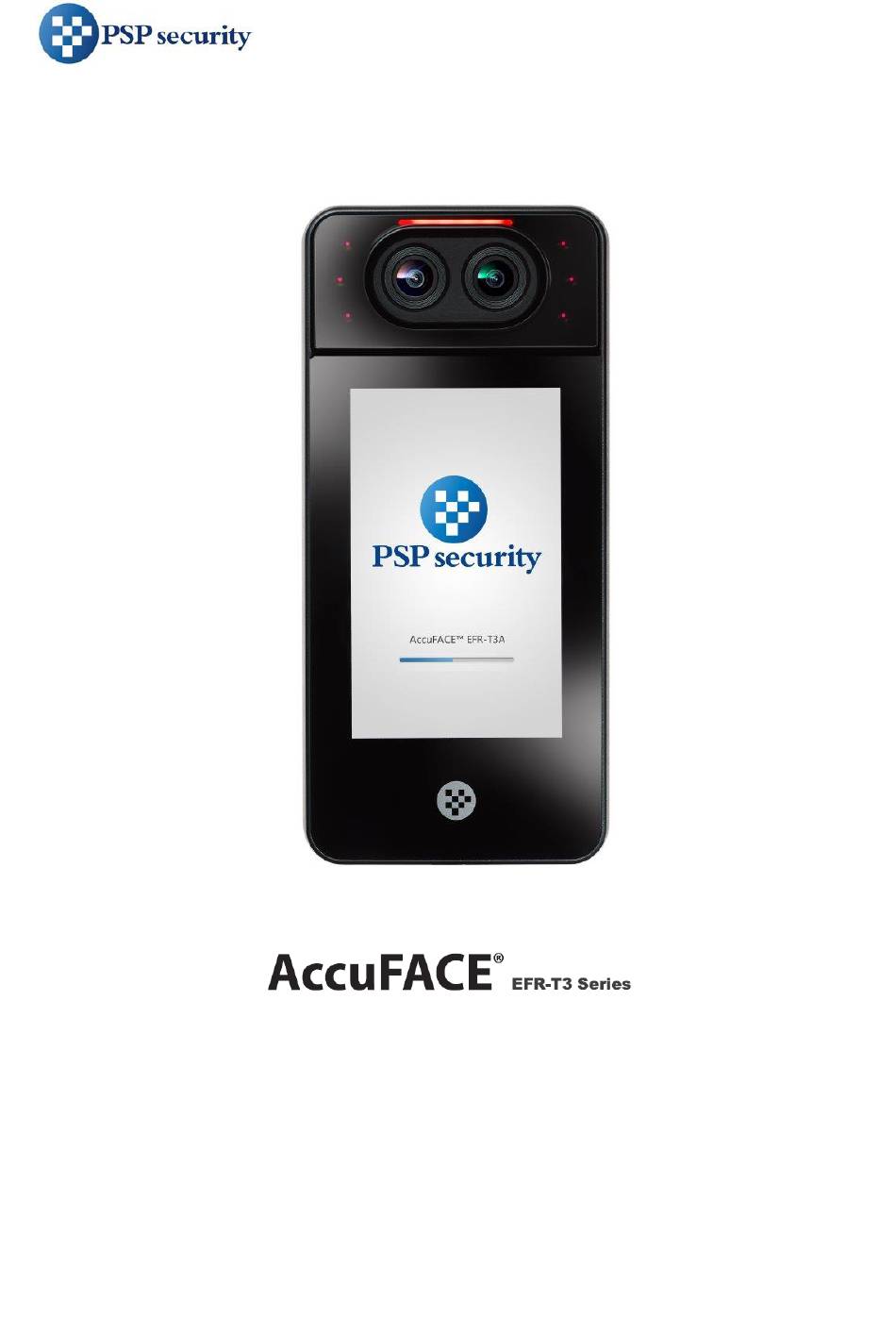

D. More AccuFACE® EFR-T3 Series Quick Installation Guide Version 1.0...
