Pressalit Care 3000 Series Operation And Maintenance Manual

Shower table

Advertisement

Quick Links

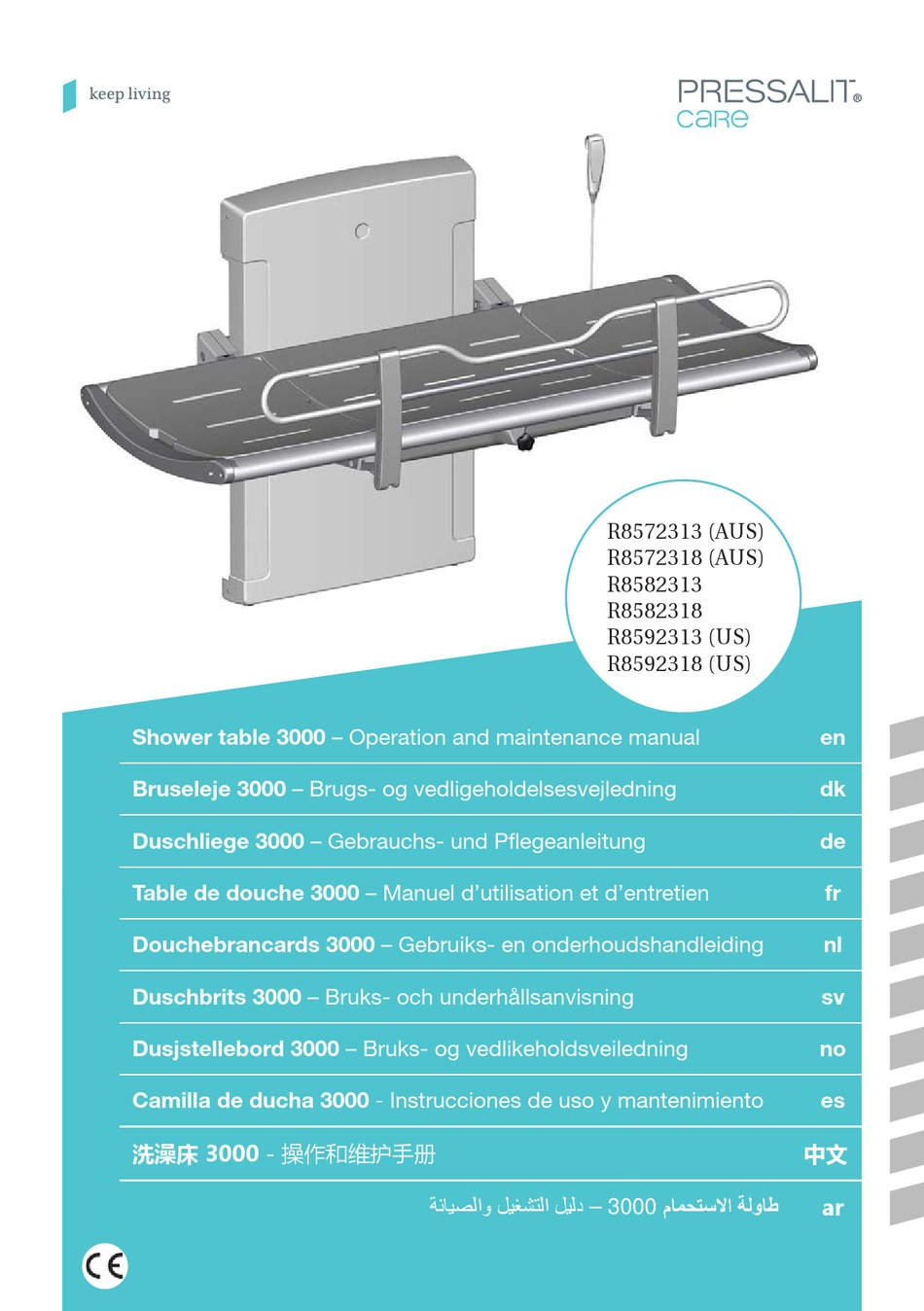

Shower table 3000 – Operation and maintenance manual
Bruseleje 3000 – Brugs- og vedligeholdelsesvejledning
Duschliege 3000 – Gebrauchs- und P egeanleitung
Table de douche 3000 – Manuel d'utilisation et d'entretien
Douchebrancards 3000 – Gebruiks- en onderhoudshandleiding
Duschbrits 3000 – Bruks- och underhållsanvisning
Dusjstellebord 3000 – Bruks- og vedlikeholdsveiledning
Camilla de ducha 3000 - Instrucciones de uso y mantenimiento
- 操作和维护手册
‫طاولة االستحمام 0003 – دليل التشغيل والصيانة‬
R8572313 (AUS)
R8572318 (AUS)
R8582313
R8582318
R8592313 (US)
R8592318 (US)
en
dk
de
fr
nl
sv
no
es
中文
ar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pressalit Care 3000 Series

  • Page 1 R8572313 (AUS) R8572318 (AUS) R8582313 R8582318 R8592313 (US) R8592318 (US) Shower table 3000 – Operation and maintenance manual Bruseleje 3000 – Brugs- og vedligeholdelsesvejledning Duschliege 3000 – Gebrauchs- und P egeanleitung Table de douche 3000 – Manuel d’utilisation et d’entretien Douchebrancards 3000 –...
  • Page 2 English ..............3 Dansk .
  • Page 3: Table Of Contents

    Content Mounting instruction ......... . . 3 Operational signage .
  • Page 4: Symbols Used In This Manual

    Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 5: General Safety

    General safety WARNING • Read and understand the manual completely before use. Keep the manual close to the unit. • Comply with this manual to avoid accidents involving serious personal injury. • Never use or handle this product in other ways than are specified in this manual, as this can put your safety at risk and cause damage to the product.
  • Page 6: Product Label

    Product label RZZZZYYYXXX-X XX-XX Hz XX W ⑯ YYYY-MM-DD XXX V IPXX xxx kg xxx kg xxx kg xxx lb xxx lb xxx lb Pressalit A/S, Pressalitvej 1 DK-8680 Ry +45 8788 8777, www�pressalit�com Article number Production date Maximum user weight Consult manual for use Safe working load Mains voltage...
  • Page 7 Maximum power consumption IP class Name and address of manufacturer Consult manual for use Consult the manual for important cautionary information such as warnings and precautions. Duty cycle. The motor on height-adjustable products can be used for a maximum of 2 minutes of continuous operation, followed by 18 minutes pause.
  • Page 8: Intended Use

    Product label placement Intended use This product is intended for bathing a person who is unable to stand up or sit down. The person is lying horizontally on the table. Intended operator profile The product is to be used by personnel trained in health care and trained in washing a person in their care.
  • Page 9: Versions

    Versions R8572313 - R8582313 - R8592313 R8572318 - 8582318 - R8592318 Version Power plug type R8582313 (Standard) R8582318 (Standard) Standard 230V R8592313 (US) R8592318 (US) 120V R8572313 (AUS) R8572318 (AUS) 230V...
  • Page 10: Operating Instructions

    Operating instructions Support the table using your hand or body when folding it up and down, to avoid the risk of damage. The built-in gas cylinders make it easy to fold the table up against the wall after use. Take care to avoid injury to hands when in the vicinity of closing mechanical parts ①...
  • Page 11 To pull the safety rail up: Turn the locking knob ① Turn the knob one way or another to release the safety rail. Lift the safety rail upwards until you hear a click indicating that it is locked. To fold the safety rail away: Turn the locking knob Turn the knob one way or another to release the ①...
  • Page 12: Height Adjustment

    Height adjustment When the table is installed at the correct height (recommended installation height is 868 mm above the floor), it can be adjusted between 300 and 1000 mm above the floor. The height adjustment is controlled by the wired remote control unit.
  • Page 13: Head Support

    Head support The end pad can be used as a head support for increased comfort. Use the cut-out grip to lift the pad. Fold the metal bracket down to hold ① ② the pad in the upright position. The end pads are interchangeable and can be placed at either end of the table. CAUTION Never let a person lie on the shower table without the pads in place.
  • Page 14: Cleaning

    Cleaning Clean the shower table after each use. Use ordinary soapy water. Rinse off with fresh water and dry with a soft cloth. Do not leave the pads soaked in water. Remove the pads and dry the water collection tray .
  • Page 15: To Remove Limescale

    To remove limescale To remove limescale marks on the aluminium parts, use 3 parts 30% household vinegar to 7 parts water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove limescale deposits from the aluminium parts using a de-scaling agent such as acetic acid.
  • Page 16: Maintenance

    Maintenance Expected service life of the shower table is 10 years for institutional use, provided that maintenance is carried out as described below: It is recommended on a weekly basis to run the motors on the product to their maximum positions by raising the product to its full height, and then lowering it to its lowest position, so that the internal parts are lubricated.
  • Page 17 Disconnect mains before removing the covers. Remove the upper and lower retaining screws on the lift unit ① cover and carefully remove the cover. • Check the mount screws ② tighten if necessary. • Oil moving parts with Berulub, especially the sliding brackets ③.
  • Page 18: Service Kit

    Service kit Expected service life of the shower table is 10 years for institutional use. However it must be expected that some of the internal wear and tear parts must be replaced after approximately 3 years. The service kit T5256 with the replacement parts must be purchased at Pressalit A/S or your local dealer.
  • Page 19: Trouble-Shooting

    Oil the sliding brackets runs up and down are not properly as described under unevenly. lubricated. “Maintenance”. Contact Pressalit Care or your dealer if the problem cannot be remedied. Do not attempt to repair the product yourself, as this will invalidate the guarantee.
  • Page 20: Technical Data

    Technical data Max load 200 kg / 441 lbs Materials Powder-laquered stainless steel Aluminium Plastics Mattress surface: Polyurethane foam Dimensions R8572313/R8582313/R8592313: (width x 987 mm x 1410 mm / 38.85 x 55.51 inches length) R8572318/R8582318/R8592318: 987 mm x 1910 mm / 38.85 x 75.19 inches Weight R8572313/R8582313/R8592313: 77,60 kg / 171,07 lbs...
  • Page 21: Disposal And Recycling

    Disposal and recycling The unit contains reusable materials. There are no known hazards or risks associated with disposal of the product. All components can be discarded after having been cleaned and disinfected. When disposing of the product, we recommend that it be disassembled and broken down into different waste groups for recycling or combustion.
  • Page 22 Pressalit Care and our solutions for bathrooms and kitchens. dk Besøg vores hjemmeside for at finde din lokale forhandler og få yderlig- ere oplysninger om Pressalit Care og vores løsninger inden for bad og køkken. de Besuchen Sie unsere Website, und finden Sie einen Händler in Ihrer Nähe, um mehr über Pressalit Care und unsere Lösungen für Badezim-...

This manual is also suitable for:

R8572313R8572318R8582313R8592313R8582318R8592318
