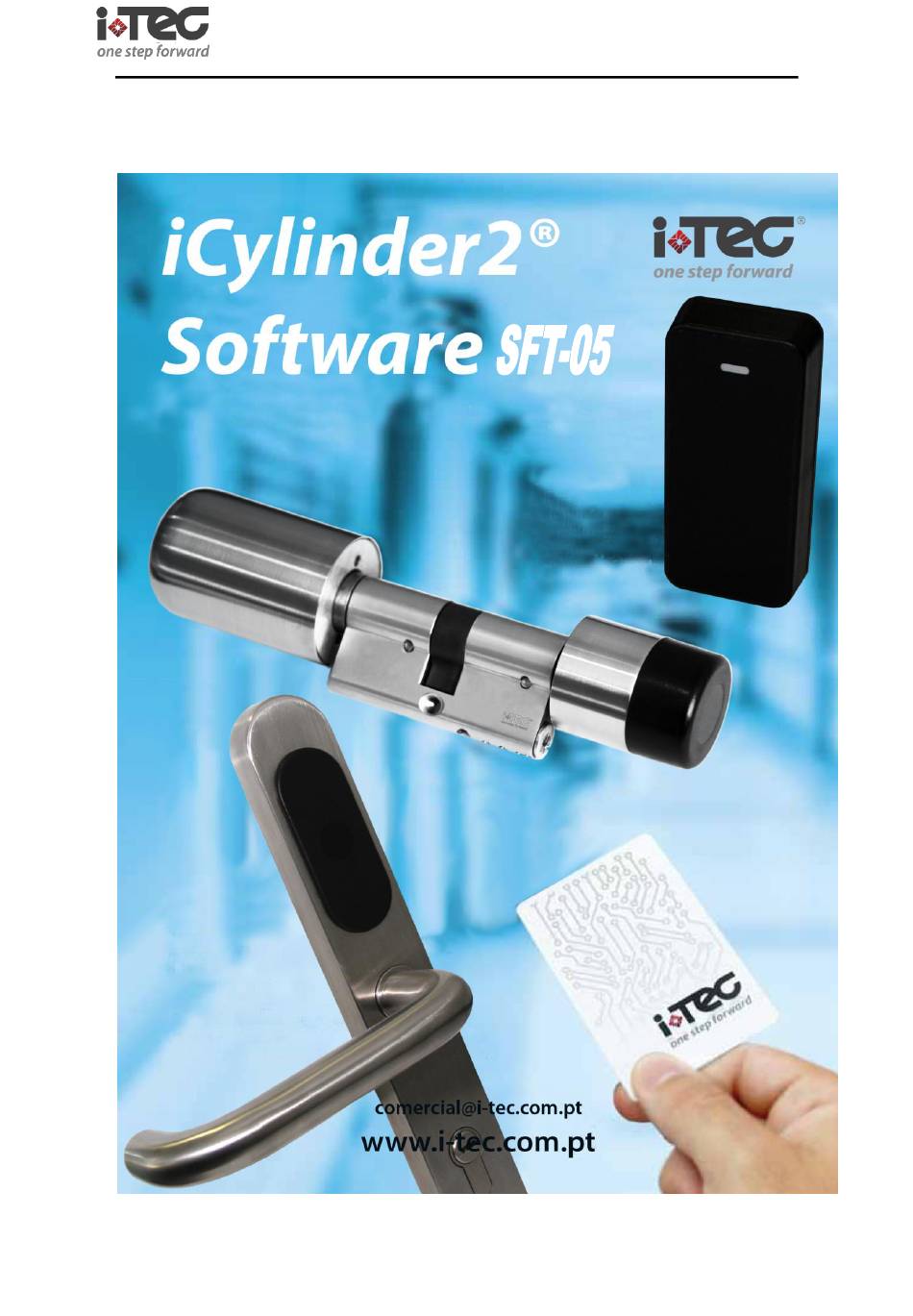

Page 1: User Manual
SFT05 - Software v1.0 User Manual www.i-tec.com.pt iTEC – PORTUGAL... -
Page 2: Table Of Contents
SFT05 - Software v1.0 Index User Manual ........................1 3. System Composition ......................3 iCylinder instalation ......................... 4 4.1. Instructions of electronic iCylinder Installation ............4 4.1.2- Assembly Sequence ......................5 1.The Outside Cylinder Components ................5 2.Locating iCylinder ......................5 3. -
Page 3: System Composition
SFT05 - Software v1.0 3. System Composition Diagram: www.i-tec.com.pt iTEC – PORTUGAL... -
Page 4: Icylinder Instalation
SFT05 - Software v1.0 iCylinder instalation 4.1. Instructions of electronic iCylinder Installation 4.1.1 Cylinder Components and Related Tools Introduction Inner Assembly 1) Inner Assembly 2) Clamp Ring 3) Antenna 4) Knob Cap 5) Fixing Screw 6) Cylinder Setscrew 7) Wrench... -
Page 5: 2- Assembly Sequence
SFT05 - Software v1.0 4.1.2- Assembly Sequence 1.The Outside Cylinder Components Please disassembly the cylinder components in following order; fixing screw (5), remove the Antenna (3), and Inner Assembly (1) Note: please be caution to take down the antenna. -
Page 6: Instructions Of Electronic Handle Lvn01 Installation
SFT05 - Software v1.0 4.2. Instructions of electronic handle LVN01 Installation Please reference to <<instructions of lock installation>>in file <<lock installation instructions>> 4.3 Software Installation Click SFT05 Office Edition V**_Setup files and will appear the following interface: Click "Next"... - Page 7 SFT05 - Software v1.0 Select software installation location, and click "Next"; Input the software name and click "Next" (you can use the default name) ; Launch the desktop icon, if it is the first installation, you need to install the driver, but if your PC has installed the driver before, you can skip the driver installation and click "Next"...
- Page 8 SFT05 - Software v1.0 Appear the software installation prepare window, if need not any change, just click "Install" is ok; Click "Install"; Pop out completed successfully means installation completely, and then click "ok" ; www.i-tec.com.pt iTEC – PORTUGAL...
- Page 9 SFT05 - Software v1.0 Click "Finish" mean the software installation completely; www.i-tec.com.pt iTEC – PORTUGAL...
-
Page 10: Handset Initializes Locks
SFT05 - Software v1.0 5.1 Handset Initializes Locks (1) Press "0" for a long time to open the handset; then it will show the selection mode in handset LCD, if Press "2", the LCD will show: 2.1 Update Time, 2.2 Read Time,... -
Page 11: Handset Connect With Pc
SFT05 - Software v1.0 5.3 Handset connect with PC (1) After initializing the locks and setting the lock room No., Please communicate the hand-held terminal with the PC via the USB interface, and if driver installation is correct, the task bar will shown as following:... -
Page 12: Handset Language Selection
SFT05 - Software v1.0 5.4 Handset Language Selection If need to select the software language, please click Lower Left Corner to select. 5.5. Update Handset Time Update handset time, which make the handset time is same with PC current time, the specific operation procedure as following shows: Step1: Connect the handset and PC via USB Data line, then open the system software, and click "tools"... -
Page 13: Create A New Project
SFT05 - Software v1.0 5.6 Create a New Project Please open the system software, and click "New "to create new project file, or click "Load" to add the project file which has existed. Then click "Select" to select the project which you has created, and you do not need to input the passwords if first time 5.7 Create Project Password... -
Page 14: Lock Authorization Setting
SFT05 - Software v1.0 5.8 Lock Authorization Setting First Step: Edit Cylinder Information Click "Lock" to open the lock edition windows. After opening the window, please click "Reading" which mean to read cylinder information from the handset, and then can describe the room information, such as general manager office, accounting office and so on;... -
Page 15: Third Step: Authorization Setting
SFT05 - Software v1.0 Third Step: Authorization Setting Click "Setting" to open Setting edition interface; Left click one or more cross grid (green color means with authorization while white color means without authorization), and please set the date and time range, and click "save" to backup the authorization while click "delete" means delete the authorization, and the altered grid will show as blue color. -
Page 16: Fifth Step: Handset Sets Lock Authorization
SFT05 - Software v1.0 Fifth Step: Handset Sets Lock Authorization Communication the handset with cylinders, and Press “ON/OFF” for a long time to open the handset; then it will show the selection mode in handset LCD, if Press "2", the LCD will show: "... -
Page 17: Events Upload Pc
SFT05 - Software v1.0 5.9.2 Events Upload PC Connect handset with PC via USB data line, and open the software, please click "Reading" can collect the cylinder events; 5.9.3 Event Inquiry Click "event" and then "inquiry all" can see all of the records. -
Page 18: Typical Operation
SFT05 - Software v1.0 5.10 Typical Operation 5.10.1 Handset Time Setting There are two kinds type for handset time setting: one is same with PC time, the specific operation please reference to <<5.5 Update Handset Time>>, the other is handset with its own time function, the specification operation as following shows: Select 1.1 "Setup Time"...
