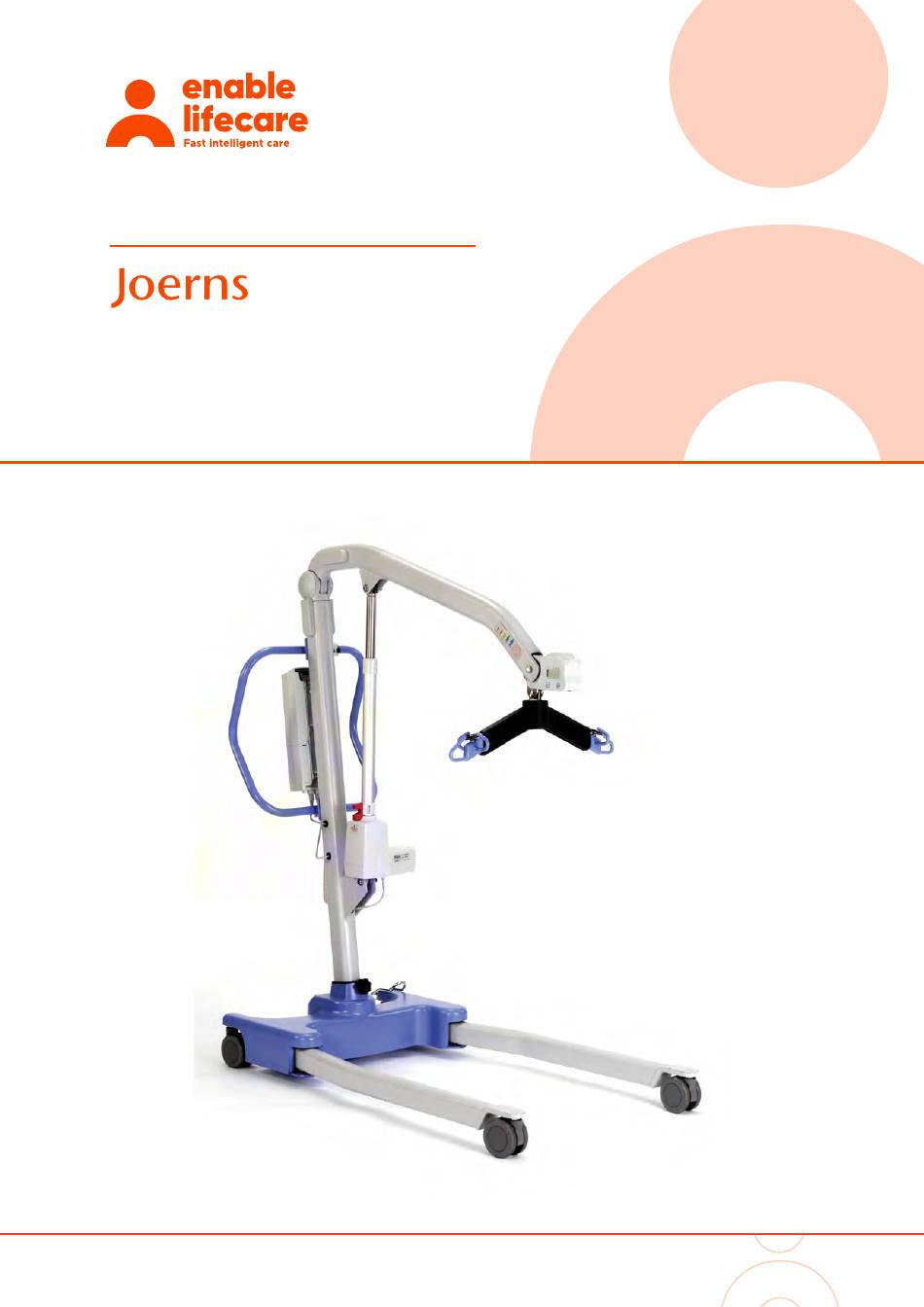

- Page 1 U S E R M A N U A L U S E R M A N U A L Product name Hoyer ® Presence to go here To avoid injury, read user manual Product description to go here prior to use. ® Joerns Hoyer Presence enablelifecare.com.au...
-
Page 2: Table Of Contents
6. Smart Monitor & Handset....................12 7. Operating Instructions..................... 16 8. Removal of Spreader Bar/Cradle Systems..............19 9. Charging Instructions...................... 21 10. Maintenance Schedule & Daily Check List..............22 11. Technical Specifications....................24 12. Warranty..........................27 ® Joerns Hoyer Presence... -
Page 3: The Hoyer Presence Patient Lift
Oxford ® English Presence 1. The Hoyer Presence Patient Lift 1. The Oxford Presence Patient Lift Boom Battery/ Control Pack Push Handle Spreader Bar Electric Actuator Mast Extrusion Rear Castor (braked) Front Castor (non-braked) ® Joerns Hoyer Presence... -
Page 4: Introduction: About Your Lift
Hoyer Professional lifts are designed and tested for a minimum service life of ten (10) years, subject to the use and maintenance procedures stated in this manual. Use, other than in accordance with these instructions, may compromise service life. ® Joerns Hoyer Presence... -
Page 5: Assembly And Commissioning Instructions
Place the chassis in a clear space and apply the rear bakes. 2. Fit the mast and boom assembly into the chassis socket 2. Fit the mast and boom assembly into the chassis socket Fit the mast and boom assembly into the chassis socket. ® Joerns Hoyer Presence... - Page 6 Fit power pack to the lift and make sure the latch holding the pack in place is fully engaged. “Click” in place. “Click” in place. Plug the handset and actuator cables into the bottom of the controller. Refer to the figures on page 11 or 12 for correct positions. ® Joerns Hoyer Presence...
- Page 7 • The red emergency stop button, located on the rear of the control box, is in the OFF (out) position. • The red emergency stop button, located on the rear of the control box, is in the OFF (out) position. ® Joerns Hoyer Presence...
- Page 8 • Push the up and down buttons on the hand control and confirm the boom rises and lowers. • Push the up and down buttons on the hand control and confirm the boom rises and lowers. ® Joerns Hoyer Presence...
-
Page 9: Safety Precautions
DO NOT attempt to manoeuvre the lift by pushing on the mast, boom or patient. ALWAYS manoeuvre the lift with the handle provided. A foot push pad is also provided. DO NOT push a loaded lift at speeds, which exceed a slow walking pace (2.6 ft/sec). ® Joerns Hoyer Presence... - Page 10 DO NOT use a loaded lift on thick pile carpet. NEVER operate the lift with loose or missing parts or fasteners. INSPECT all precautionary labels on the lift. Order and replace all labels that cannot be easily read. ® Joerns Hoyer Presence...
-
Page 11: Standard Control Box & Handset
5. Standard Control Box & Handset Detachable Battery Pack Raise & Lower Buttons Legs Open / Emergency Stop Button Close Buttons Handset Emergency Raise & Lower Redundant Controls Actuator Handset Actuator Information Connection Connection Screen Socket Socket Handset Connection Plug ® Joerns Hoyer Presence... -
Page 12: Smart Monitor & Handset
Smart Monitor Raise & Lower Buttons Emergency Raise & Lower Legs Open / Redundant Controls Close Buttons Legs Open / Close Redundant Controls Handset Actuator Actuator Information Connection Handset Screen Socket Connection Socket Handset Connection Plug ® Joerns Hoyer Presence... - Page 13 • 3 step battery indicator Benefits • Improved safety for both patient and carer • Accurate service data available at the touch of a button • Optimised product life time • Ease of maintenance for engineers and service technicians ® Joerns Hoyer Presence...
- Page 14 (for a list of daily checks, please refer to your lift user manual). Joerns Healthcare also recommend that you contact your authorised Hoyer service provider for additional guidance. ® Joerns Hoyer Presence...
- Page 15 To avoid possible permanent damage to the battery, the WARNING battery should be placed on charge as soon as the display indicates the half empty battery symbol. ® Joerns Hoyer Presence...
-
Page 16: Operating Instructions
(RED BOSS). Dependent on your lift, the device is either pulled upwards, or twisted by hand to activate. A slow decent will commence. Repeat this process until the patient has been safely lowered. WARNING If this feature is used, the lift MUST be subsequently checked out by a competent engineer. ® Joerns Hoyer Presence... - Page 17 Attachment Point Shoulder Strap Attachment Point Shoulder Strap Straps Attachment Point Straps 4-point positioning cradle. Example of 4-point cradle sling with safety clip system. 4-point positioning cradle. Example of 4-point cradle sling with safety clip system. ® Joerns Hoyer Presence...
- Page 18 Hoyer products is potentially unsafe and could result in serious injury to patient and/or caregiver. WARNING Refer to maximum weight capacity of lift. Sling capacity is limited by the maximum capacity of the lift. ® Joerns Hoyer Presence...
-
Page 19: Removal Of Spreader Bar/Cradle Systems
To do this, press your finger into the barbed end. If the pin remains stationary the lift is safe to use. To do this, press your finger into the barbed end. If the pin remains stationary the lift is safe to use. ® Joerns Hoyer Presence... - Page 20 This will release the spreader bar completely. Support the spreader bar/cradle, and then pull the pin sleeve in the opposite direction, removing it completely from the boom. This will release the spreader bar completely. ® Joerns Hoyer Presence...
-
Page 21: Charging Instructions
NEVER store the battery for long periods without regular charging throughout the storage period. NEVER leave the battery pack connected with the charger unit unplugged. ® Joerns Hoyer Presence... -
Page 22: Maintenance Schedule & Daily Checklist
EXAMINE slings for fraying or other damage. DO NOT use any sling if damaged or if the sling shows signs of wear. MAINTENANCE Joerns Healthcare recommends regular inspection and maintenance. Please refer to the chart on the next page. ® Joerns Hoyer Presence... - Page 23 15. QUICK RELEASE PIN: Ensure the pin is securely fitted before lifting, by ü ü pressing the barbed end. 16. FIXINGS: Check all nuts, bolts, screws and fasteners for excessive wear ü and for tightness. Replace as required. ® Joerns Hoyer Presence...
-
Page 24: Technical Specifications
40 kgs Base Assembly (not inc battery) 44 lbs 20 kgs Mast & Boom (not inc battery) 37.4 lbs 17 kgs 4-point Position Cradle 13.2 lbs 6 kgs All measurements are within a +5/--5 degree of tolerance. ® Joerns Hoyer Presence... - Page 25 Actuator ..............IPX4 Off Board Charger ........... IPX5 Battery ................ IPX5 Handset ............... IPX4 Duty Cycles Actuator ..............10% (2 min./18 min.) Charger ............... Approx. 4 hrs. Acoustics A-Weighted sound power level ......60 dB (A) ® Joerns Hoyer Presence...
- Page 26 The disposal of batteries should not be mixed with general household waste. The disposal of electronics should not be mixed with general household waste For indoor use ATTENTION, consult accompanying documents. WEEE Producers registration number WEE/GG0464RZ ® Joerns Hoyer Presence...
-
Page 27: Warranty
Should a technician be required, one will be provided by Joerns Healthcare, at our discretion. Only the Joerns Healthcare Product Service Department can dispatch authorized technicians. This warranty is extended to the original purchaser of the equipment. ® Joerns Hoyer Presence... - Page 28 But we do more than just provide products. We give the knowledge and support to help our customers grow their business and deliver better life care. ENABLE LIFECARE PTY LTD T 1300 370 370 enablelifecare.com.au ® Joerns Hoyer Presence...
