USER MANUAL AND SPECIFICATIONS
sbRIO-9698
One-Slot C Series and Secondary Ethernet RIO Mezzanine Card
The sbRIO-9698 one-slot C Series RIO Mezzanine Card is an accessory you can use to
connect one board-only C Series module to the NI sbRIO-9607/9627. The sbRIO-9698
includes an Ethernet port for Ethernet communication or EtherCAT master functionality.
Note
Board-only C Series modules are designated sbRIO. For example, the
NI 9219 is the enclosed C Series module and the sbRIO-9219 is the board-only
version of the module.
Notice
NI makes no electromagnetic compatibility (EMC) or CE marking
compliance claims for the sbRIO-9698. The end-product supplier is responsible for
conformity to any and all compliance requirements.
Notice
The sbRIO-9698 must be installed inside a suitable enclosure prior to use.
Hazardous voltages may be present.
Notice
Follow proper ESD precautions to ensure you are grounded before
installing hardware.
Notice
The protection provided by the sbRIO-9698 can be impaired if the
sbRIO-9698 is used in a manner not described in this document.
Verifying the Kit Contents
Verify that the following items are included in the sbRIO-9698 kit.

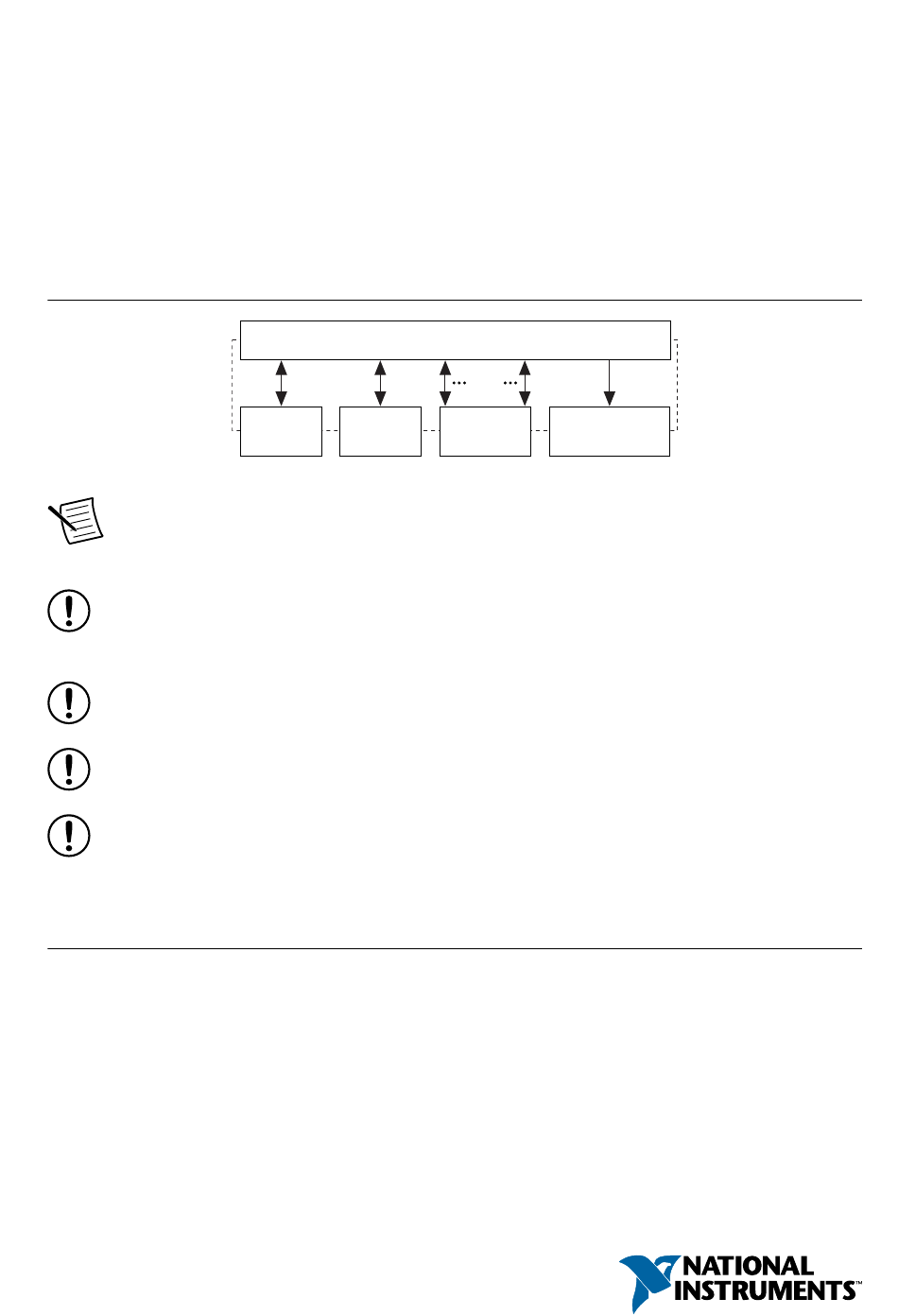

Figure 1. sbRIO-9698 Block Diagram
sbRIO RMC Interface Connector
ENET 1
C Series
Connector
Module
x 24
3.3 V
5 V
Digital I/O
Power Supply
