- Page 1 Mid-Level UHF Dual Channel Wireless Microphone System...
-
Page 4: Box Contents

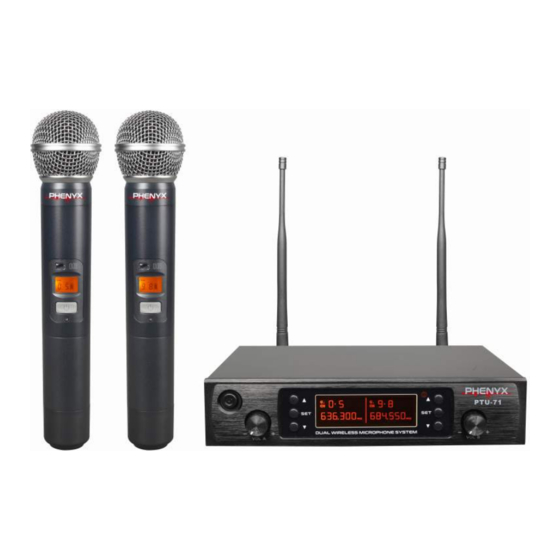

Four AA battery User’ s manual System Overview The PTU-71 is a dual wireless microphone system designed to offer excellent sound quality and ease of use. The system utilizes PLL-synthesized technology to offer high level of frequency stability and accuracy. This is a reliable wireless system with up to 100 channel... -
Page 5: Handheld Microphone
Back Panel Power jack CHA antenna CHA balanced XLR output CHB balanced XLR output Unbalanced1/4 “ output CHB antenna Handheld Microphone IR window (Play to the infrared transmitter signal to the frequency synchronization) LCD display Power switch Battery compartment When turn on the transmitter, the battery power icon is on the right of the LCD display. - Page 6 Bodypack The Phenyx UHF bodypack is to be used with the Phenyx lavalier microphones & headsets. Hand-help Tr ans mitte Secure the bodypack to clothing, belt or pocket. (a) For a lavalier microphone, clip the microphone to clothing about 1 foot under the mouth.
-
Page 7: Operation
Set Up Install fresh batteries in the transmitters (fresh to the section relative to the specific transmitter you are using). Connect the AC power adapter to a wall outlet and to the back of the receiver. Screw antenna A, B in, and position them 60 degrees apart from each other. Connect one of the two outputs available at the back panel to the next stage in your system. - Page 8 ISSUE REASON SOLUTION Transmitter battery indi- The batteries are low Replace with fresh cator is rapidly fiashing batteries or continuously ON A howling noise (also The microphone is too Increase the dis- known as “feedback”) close to the speaker tance between the microphone and the can be heard from the speakers...
- Page 9 Carrier frequency range: UHF 645 – 685 MHZ (Depends on local regulations) Frequency stability: 0.003% Dynamic range: >105dB Frequency response: 50Hz – 18kHz Audio output level:1/4interface: 0-500mV; XLR Interface: 0 – 500mV Working distance: 80m/260ft Operating temperature: -10℃ --- +50℃ Output impedance: XLR connector: 200Ω...
-
Page 10: Limits Of Liability
Our Warranty to you: Phenyx T e c h n o l o g y (“Phenyx”) warrants Phenyx products against evident de- fects in material and workmanship for a period of one year from the date of origi- nal purchase for use. This warranty is valid exclusively in the US and applies only to the original owner.
