  • Page 3: System Description

    Thank you for purchasing the PHENYX PTU-51 Dual Wireless Micro- phone System. Please read this manual carefully to ensure proper use and operation, and keep it for future reference. System description - Box Contents - System Overview - Receiver - Transmitters...

  • Page 4: Box Contents

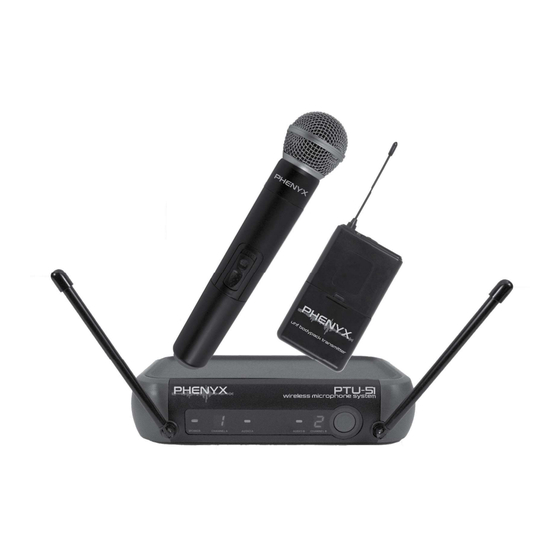

    Manual System Overview The PTU-51 is a dual wireless microphone system designed to off er great sound quality and ease of use in a compact package. It is very simple to set up and operate, and it is the perfect choice for public address, karaoke, live performances, interviews, sermons and many more.
  • Page 5 Back Panel Power Jack Channel B volume control Balanced XLR output ¼” Unbalanced output Channel A volume control Transmitters Handheld Microphone Battery power indicator ON/MUTE/OFF switch Battery compartment cover Under normal operation, the battery power indicator (1) will briefl y light up when powering on the microphone. If the battery power indicator (1) stays continuously on after powering on the microphone, the batteries must be replaced.
  • Page 6 Bodypack The Phenyx UHF bodypack is to be used with the Phenyx lavalier microphones & headsets Antenna Battery power indicator ON/MUTE/OFF switch Microphone input Battery compartment ON MUTE OFF MUTE Side View Top View With battery com- partment open Set Up: Secure the bodypack to clothing, belt or pocket.

  • Page 7: Operation

    Set Up Install fresh batteries in the transmitters (refer to the section relative to the specifi c transmitter you are using). Connect the AC power adapter to a wall outlet and to the back of the receiver. Position the antennas 60° apart from each other as shown.
  • Page 8 ISSUE REASON SOLUTION Transmitter battery indi- The batteries are low Replace with fresh cator is rapidly fl ashing batteries or continuously ON A howling noise (also The microphone is too Increase the dis- known as “feedback”) close to the speaker tance between the can be heard from the microphone and the...
  • Page 9 Overall System Carrier frequency range: UHF 618.0-865.6MHz (frequency of operation depends on local regulations) Frequency Stability: 0.003% Dynamic Range:>100dB T.H.D: <0.5% Frequency Response: 50Hz-18kHz Outputs: XLR balanced mixed; ¼” unbalanced mixed Audio Output Level: 0-500mV Range: 150’ ( Operating temperature: -10°C~+50°C Handheld &...
  • Page 10 If your Phenyx product fails or does not perform as warranted, your sole recourse shall be to replace or repair it as described above. Phenyx will not be liable to you or anyone else for any damages that result from the failure of this product. These damages include, but are not limited to, the following: lost profi...
