ENG

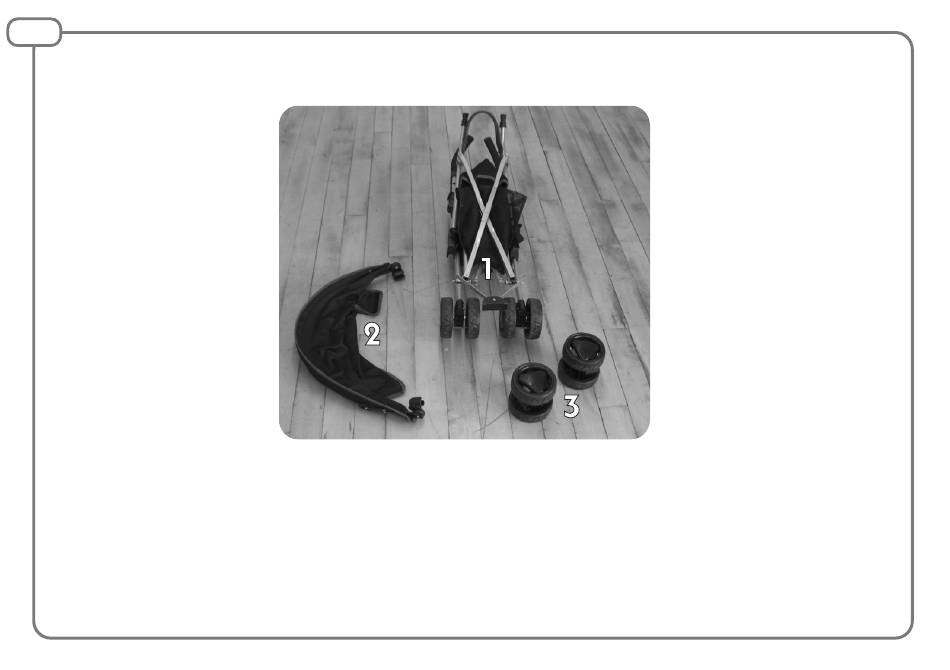

Parts List
1) stroller frame
2) canopy
3) front wheels
2

Advertisement

Table of Contents
loading

Related Manuals for UPPAbaby G-lite

Summary of Contents for UPPAbaby G-lite

  • Page 1 Parts List 1) stroller frame 2) canopy 3) front wheels...

  • Page 2: Front Wheels

    1. Front Wheels Slide front wheels onto frame until an audible "click" is heard (figure 1). 2. Opening the Stroller Release the latch locks on the side of the frame and unfold the stroller (figure 2a).
  • Page 3 2. Opening the Stroller (continued) Push down the pedal on back of stroller to lock open (figure 2b). Make sure each lock "clicks" to "out" position as shown for frame to be fully open and secure (figure 2c).

  • Page 4: Setting The Brake

    3. Setting the Brake Press down each foot pedal to lock, lift up to release (figure 3). 4. Attaching the Canopy Snap canopy to frame just below mesh attachment and above plastic stud (figure 4a).
  • Page 5 4. Attaching the Canopy (continued) Press down lever to lock canopy open (figure 4b). Fasten back canopy panel with the velcro strips (figure 4c).

  • Page 6: Folding The Stroller

    5. Folding the Stroller Lift metal safety tab on right side latch (figure 5a). Lift lock tab on both sides (figure 5b). Pull up bottom wheels until they lock (figure 5c). Fold and stand complete (figure 5d).

  • Page 7: Removing The Seat Pad

    6. Removing the Seat Pad Undo buckle and slide shoulder harness fastener off (figure 6a). Push all harness straps and buckles through holes in pad (figure 6b). Undo top fastener strips (figure 6c). Remove top of pad (figure 6d).
  • Page 8 6. Removing the Seat Pad (continued) Remove bottom of pad (figure 6e). Pad removed and ready for use (figure 6f).

  • Page 9: Limited Warranty

    Limited Warranty Your UPPAbaby stroller is warranted to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and in compliance with the operating instructions. This warranty extends only to the original retail purchaser and is only valid when supplied with proof of purchase.
