Hubbell 67L Series Installation Instructions

Installation Instructions
FEED
END CAP

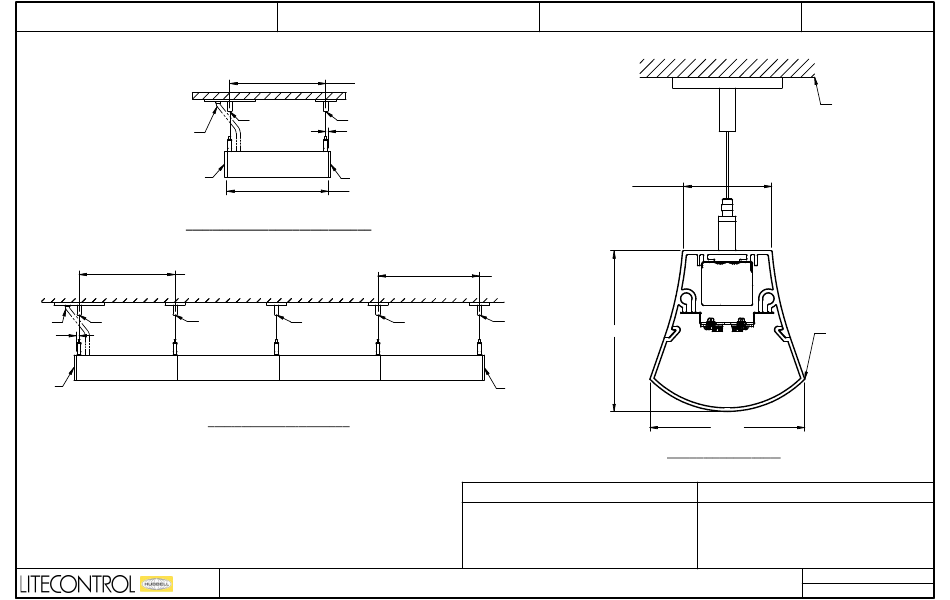

SIDE VIEW - INDIVIDUALLY MOUNTED
FIXTURE LENGTH
MINUS .75"
AIRCRAFT
FEED AIRCRAFT
CABLE
CABLE
.38"
TYP
END
CAP
GENERAL NOTES: (READ SHEETS COMPLETELY BEFORE STARTING)
1. LEAVE PROTECTIVE WRAPPING ON FIXTURE(S) UNTIL START OF
INSTALLATION.
2. FIXTURES ARE SUPPLIED WITH FACTORY-INSTALLED BRANCH CIRCUIT
WIRING. REFER TO SUPPLEMENTAL INSTRUCTION SHEET WEHN MAKING
CONNECTIONS.
3. APPROXIMATE WEIGHT OF FIXTURE IS 2 LBS PER FOOT OF LENGTH.
4. REFER TO PAGE 3 FOR LENS INSTALLATION/REMOVAL INSTRUCTIONS.
litecontrol.com
FIXTURE SERIES: 67L
FIXTURE LENGTH
MINUS .75"
AIRCRAFT AIRCRAFT CABLE
CABLE .38" TYP
END CAP
FIXTURE LENGTH
(24", 36", 48", 72", OR 96")
AIRCRAFT
CABLE
SIDE VIEW - ROW MOUNTED
DO NOT MODIFY OR ALTER THIS PRODUCT IN ANY WAY, OR INSTALL IN ANY FASHION WHICH IS CONTRARY TO THE INSTRUCTIONS CONTAINED HEREIN.
IF YOU HAVE ANY QUESTIONS REGARDING THIS PRODUCT OR THE INSTALLATION OF IT, PLEASE CALL LITECONTROL ENGINEERING AT 781-294-0100.
MOUNTING TYPE: AIRCRAFT CABLES
FIXTURE
LENGTH
AIRCRAFT AIRCRAFT
CABLE
CABLE
END
CAP
TOOLS REQUIRED
- SCREWDRIVER/DRILL
- 11/32" NUT DRIVER
2.00"
3.69"
3.56"
CROSS SECTION VIEW
SUPPLIED BY INSTALLER
PAGE: 1 OF 3
CEILING
REFERENCE
BELL LENS
SHOWN
DRAWING: 510641
REV / DATE: 0 / 1/16/2019
