Monarch Nova-Strobe BBX Replacement Manual

Nova-Strobe Battery Replacement
for models: Nova-Strobe BBX, Nova-Strobe DBX, and Phaser Strobe PBX, Vibration Strobe VBX

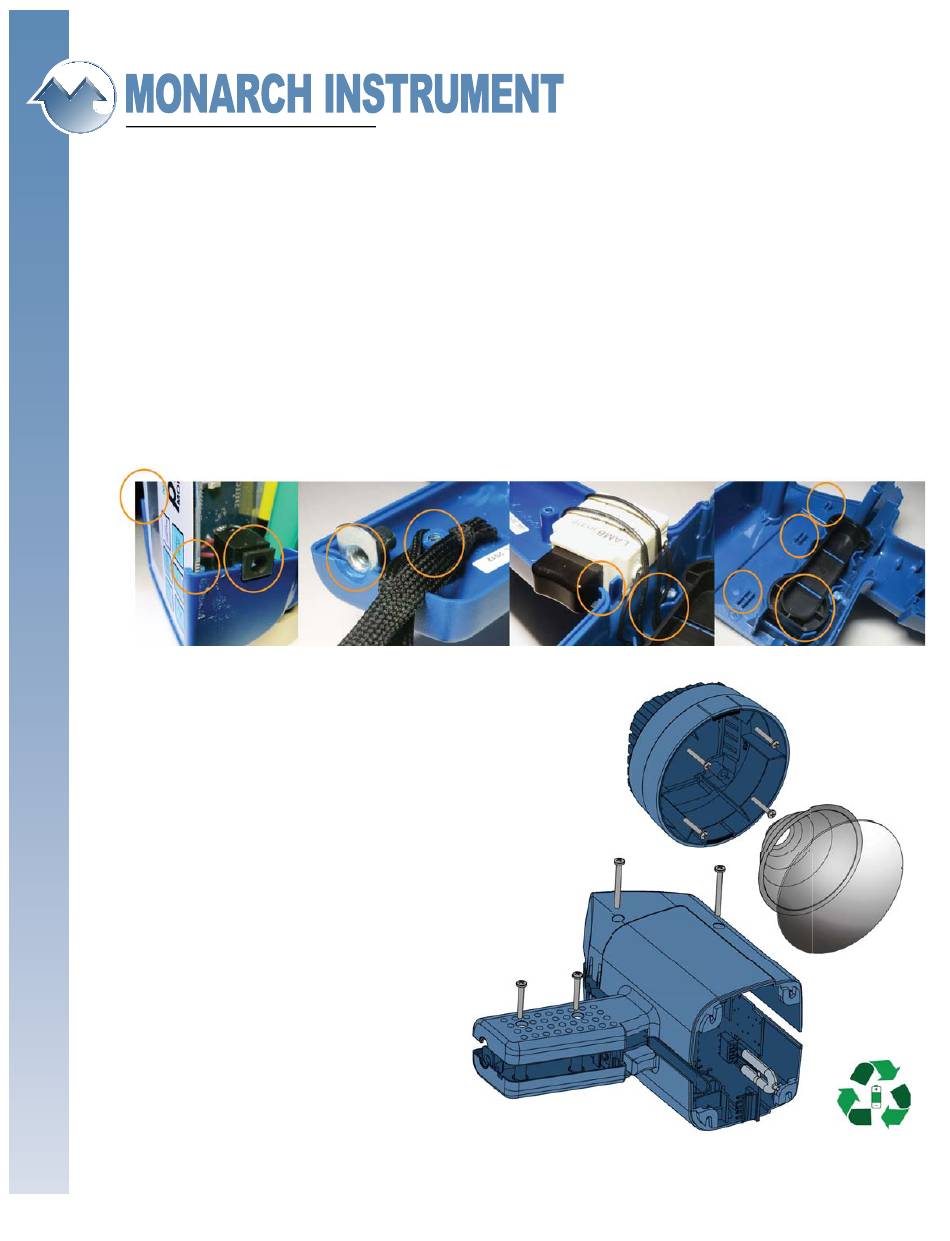

Before you open the case, know that during the reassembly there are multiple points that
need to align correctly to close the case securely.
Some of them include:
• Display board sits in groove
• DC Connector spans both case halves
• Mounting T-nut sits in slot as shown
• Lanyard knot surrounds screw standoff and protrudes through the notch in the case
• Trigger sits in case brackets with wires tucked out of the way
• PCB aligns in a retaining groove
• Battery holders (2) nests in brackets, there is a right and wrong way to insert them
Taking the unit apart is the easy part . . .
To do this, [A] remove the lens by
separating the two tabs that hold
it in place. Put a piece of tape on
the side of the lens that faces out
so it can be installed correctly. Slide
the refl ector [B] and lamp out as
detailed in the Lamp Replacement
section of your manual. This will
expose four screws [C] that must
be removed so the refl ector hous-
ing can be removed from the main
body. There are then four additional
screws [D1] & [D2] in the case
halves opposite the input and
output jacks that must be removed.
The case halves can now be separated,
exposing the batteries. They should
be sent to a recycling center or
returned to Monarch for disposal.
