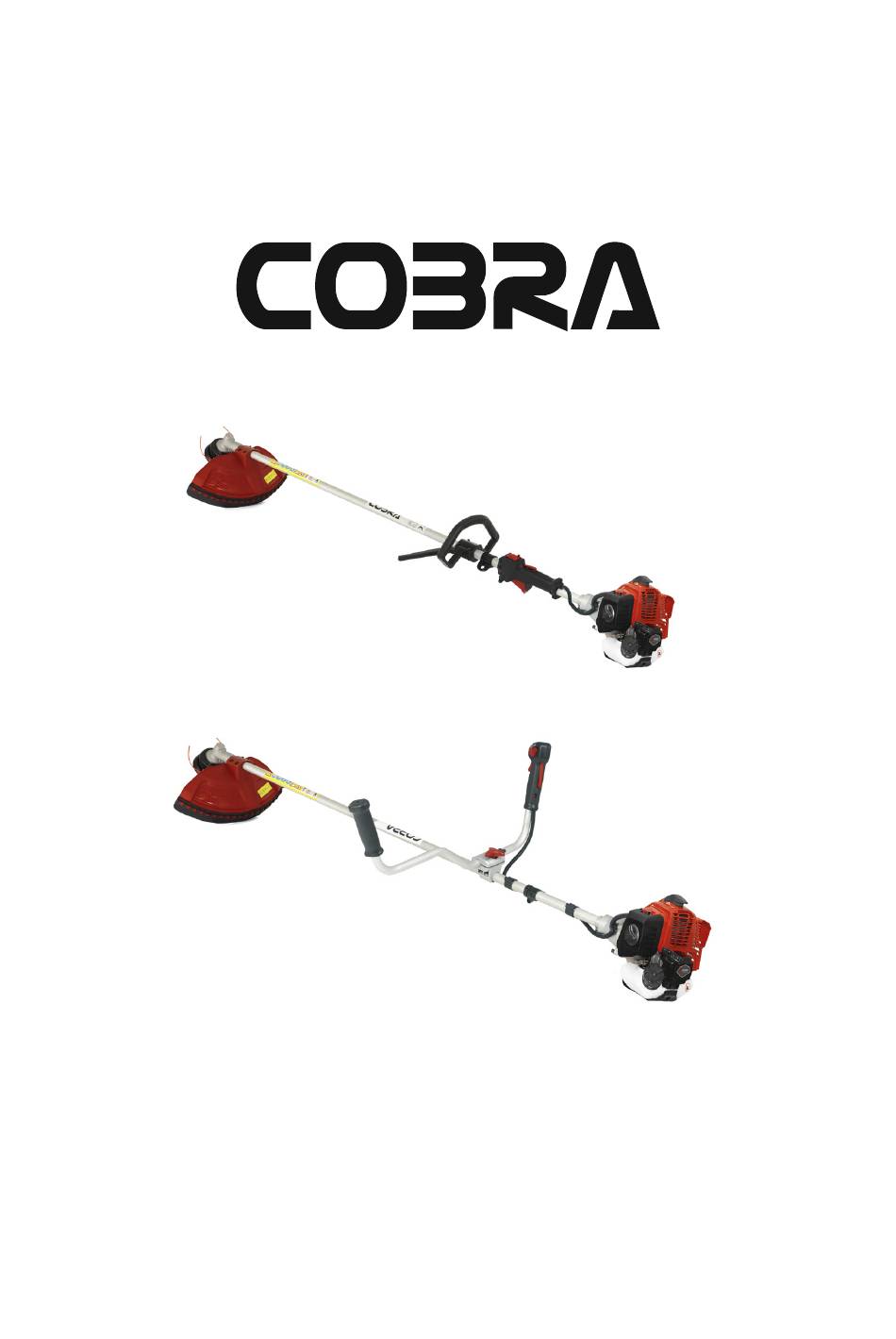

- Page 1 MODELS: BCX230C / BCX370CU ASSEMBLY & OPERATING INSTRUCTIONS BCX230C (PNB230) / BC370CU (PNB370)
- Page 2 Attention Statements Throughout this manual are special attention statements. CONTENTS DANGER! A statement preceded by the triangular attention symbol and the word ENGINE PART "DANGER"indicates an imminently hazardous situation which, if not avoided, will result in death or BRUSH CUTTER serious injury! DANGER! A statement preceded by the triangular...
- Page 3 Safety Precautions IMPORTANT! The information contained in these The procedures described in this manual instrucitions describes components are intended to help you get the most from available at the time of publication. your machine as well as to protect you and While every attempt has been made to others from harm.
- Page 4 Operating Precautions Never operate this tool or any read and follow this manual, other power equipment if you are make sure anyone using the tired, ill, or under the influence of trimmer dose likewise. Failure alcohol, drugs, or any substance to do so could result in serious that could affect your ability or personal injury or machine...
- Page 5 Operating Precautions WARNING! Never operate this machine or other power Never permit a person without training equipment if you are tired, ill, or under the or instruction to operate this machine. influence of alcohol, drugs, or any other substance that could affect your ability of Always make sure the cutter judgement.
- Page 6 1. . LOCATION OF PARTS : Warning Label A: WARNING C: Gasoline extremely flammable B: The Owner’s manual contains important explosive. information on safe operation. Stop engine before refueling. Read it before operating engine. D: Exhaust gas contains carbon monoxide, an odorless and deadly poison.
- Page 7 Running on gasoline only will cause the engine to seize. Use gasoline-oil mixture. Ethanol Content E10 or less Research Octane Number Minimum Cobra 2-stroke engine requires a gasoline-oil Octane Rating (RON) 91 mixture. Gasoline and engine oil mixing ratio: 40:1...
- Page 8 3. . ADJUSTMENT OF THROTTLE CABLE : ● When setting the engine to equipments (bush Adjusting screw Throttle plate cutter. Etc.), adjust the throttle cable in the following procedures. Lock nut 1. . Remove the air cleaner cap. Loose the lock nut.
- Page 9 4. . STARTING continued : Lift up lever ● Throttle lever Turn the lever clockwise to switch to the “STARTING” position. ● Squeeze the throttle lever to switch the lift up NOTE lever to the “RUNNING” (engine idle speed) ○ If the throttle lever is squeezed or locked position, and then release the throttle lever at half position, the engine won’t start.
- Page 10 5. . WARMING UP : 6. . ADJUSTING: ● After starting the engine, run the engine at the idling speed (throttle lever position is fully CLOSED) for a few minutes. NOTICE Allow suffi cient warm-up time to prevent engine damage and run the engine smoothly.
- Page 11 9. MAINTENANCE : Air cleaner case Air cleaner cap screw Element Air cleaner cap Fuel Filter Air Cleaner Service Fuel Filter Service Clean the air cleaner element every 20 hours. Every 20 hours of operation ● ● Remove the air cleaner cap from the air Pull the fuel filter out from the fuel tank.
- Page 12 9. MAINTENANCE continued : Electrodes Muffler Spark arrester Spark plug gap Spark Plug Service Spark Arrester Service Every 50 hours of operation Every 50 hours of operation ● ● Take the spark plug cap with fi ngers, and pull Remove the spark arrester from the exhaust it up.
- Page 13 General maintenance Daily maintenance Prior to each work day, perform the WARNING! following: Remove all dirt and debris from the Before performing any maintenance, engine, check the cooling fins and air repair, or cleaning work on the cleaner for clogging, and clean as machine, make sure the engine and necessary. ...
- Page 18 Operating manual English Contents Any other use is not as intended. ■ Use only original replacement lines Improper use is not covered by the which have a diameter of 3,0 mm. Safe operating practices ..Never use a metal-reinforced warranty and the manufacturer will Operating and display elements .
- Page 19 Operating manual English • Before switching on the engine, • Do not stretch too far over the unit. • Use only original spare parts carry the unit at least 1 m away AJways have a secure footing and for repairs. These parts can be from the filling station.
- Page 20 English Operating manual t� t ■ A rotating blade may cause injuries, ■ Keep this manual. Read it frequently Beware of hot even when the engine has been and use it to instruct other users. surfaces! switched off or the throttle has If you lend this unit to somebody been released.
- Page 21 Operating manual English Operating and display ■ Push spacer (1) onto the Disposal instructions elements drive shaft (2). Dispose of packaging remnants, Align the openings in the old units, etc., in accordance with spacer (3), the gearbox (4) and local regulations. the gear cover (5).
- Page 22 Operating manual Fill the tank with petrol. Oil and petrol ■ Insert retaining bar (6) through the openings (3, 4, 5) in order Fig. 1 to secure the gearbox. ■ Remove tank cap (4). • While holding the retaining bar (6), ■...
- Page 23 Operating manual English ■ Move choke lever (6) to position - The handle bar has been set in If more than the tip is used for 3� ♦ (Fig. 11}. such a way that you can grip it cutting, the cutting capacity is ■...
- Page 24 English Operating manual - Always release the throttle and Winding a new line onto the spool Fig. 21 reduce the engine to no load ■ Insert a new spool into the spoo l Fig. 17 when you are not cutting. cover and feed the ends of the line ■...
- Page 25 Operating manual English Warranty Check/replace spark plug Storage ■ Never store the unit with fuel in the Use only original spark plugs or ones approved by the manufacturer. tank or in a location where petrol The warranty regulations issued by The correct electrode gap is vapours may be ignited by a spark our company or the importer are...
- Page 26 Operating manual English Troubleshooting Error Cause Remedial action I/On. Engine does not start. Ignition switch set to 0/0ff. Set switch to Fuel tank empty. Fill fuel tank. Intake pump not pressed down Slowly press intake pump all the way down far enough.
- Page 27 2 3 . 3 & 3 6 . 3 P N B C 2 3 0 B ) B C X 3 7 0 C ( P N B C 3 7 0 ) 2 3 . 3 & 3 6 . 3 1 0 7 .
