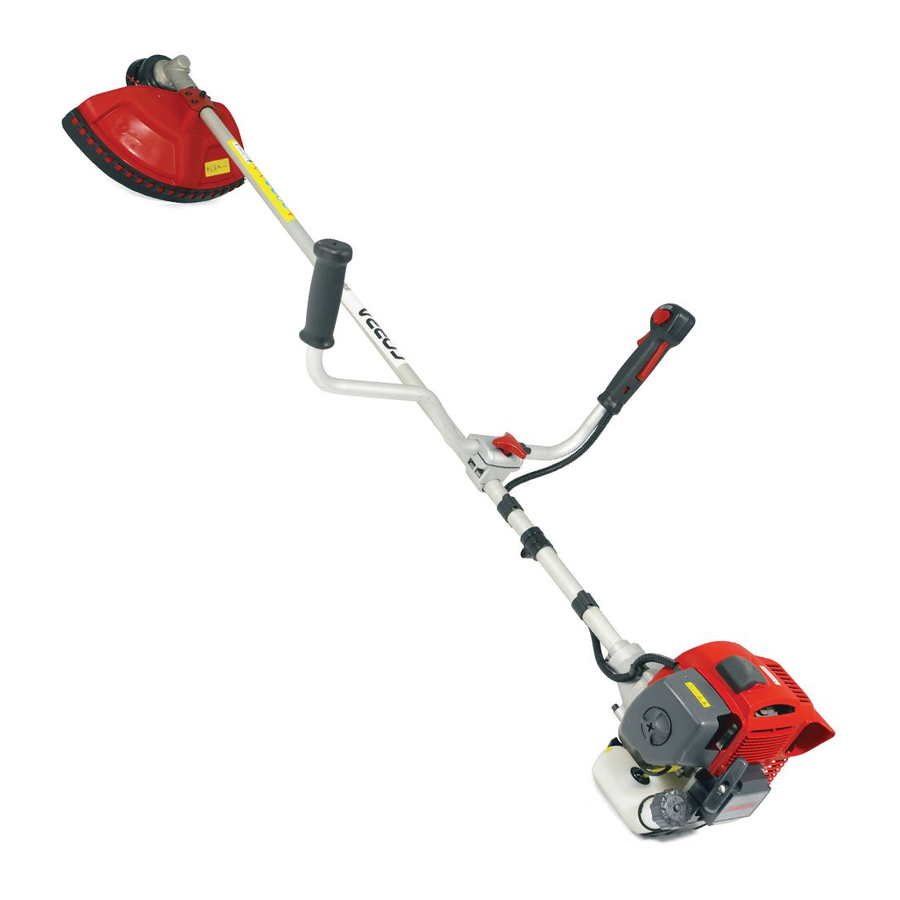

- Page 1 MODELS: BC270KB (PNBC270K) BC270K (PNBC270K) BC350KB (PNBC350KB) BC350K (PNBC350K) BC450K (PNBC450K) COBRA BRUSHCUTTER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk...
-
Page 2: Table Of Contents
CONTENTS SECTION 1 Safety Overview ………………………………………………….………. 3 SECTION 2 Parts Descriptions………………………………………………………… 4 SECTION 3 Assembly Instructions….………………………………………………... 5 SECTION 4 Fuel and Oil Recommendations ……………………………………….. 10 SECTION 5 Adjustment of the Throttle Cable.……………………………………….. 10 SECTION 6 Starting Procedure ……………………………………………………… 11 SECTION 7 Warm-up Procedure…………….……………………………………….. -
Page 3: Safety Overview
1. Safety Overview Before you start 1. While trimming, always wear substantial ALL OPERATORS MUST READ THE footwear and long trousers. Do not operate the INSTRUCTIONS BEFORE USING THE equipment when barefoot or wearing open toed MACHINERY. sandals. 2. Thoroughly inspect the area where the Always follow safe operating and maintenance equipment is to be used and remove all objects practices. -
Page 4: Parts Descriptions
- Before checking, cleaning or working on the inferior quality can damage the equipment and trimmer. compromise safety. - After striking a foreign object. Inspect for 7. If the fuel tank has to be drained, this should be done outdoors. Always ensure engine is damage and make repairs before restarting. -
Page 5: Assembly Instructions
Engine Parts Descriptions Engine Warning Labels A: The Owner’s manual contains important information on safe operation. Read it before operating engine. B: Exhaust gas contains carbon monoxide, an odourless and deadly poison. Do not run Engine in an enclosed area. C: Gasoline is extremely flammable and explosive. - Page 6 Assembly Instructions Installation of the Bike Type Handle (K models) 1. Remove the handwheel bolt that locks the upper clamshell bracket in place. 2. The clamshell bracket is ready to locate the bike handle tube across the rubber mounting as shown. 3.
- Page 7 Installation of the Guard 1. Fit the rubber sheet around the brushcutter shaft as shown opposite, near to the top of gearbox casing. 2. Attach the guard metal bracket with the single bolt to the shaft. Position the plastic guard between the metal bracket and the shaft as shown opposite.
- Page 8 3. Fit the nylon line grass mowing head by screwing the part onto the shaft. Rotate counter- clockwise. Block the shaft from rotating as shown below. 4. Insert the blocking rod in the top of the gearbox as shown opposite, rotating until the shaft is blocked or locked.
- Page 9 Fitting of the Metal Cutting Blade continued 3. Wear protect gloves when fitting metal blade. 4.Fit the blade holder as shown 5. Place the larger disc or holder over the brass holder. Counter-clockwise tighten the nut. Insert the blocking rod to stop the shaft from rotating to allow the nut to be tightened.
-
Page 10: Fuel And Oil Recommendations
4. Fuel and Oil Recommendations Fuel Petrol and Oil Mix: Warning: Gasoline 1000 Petrol is extremely flammable and can be explosive under certain conditions, creating the potential for serious burns. 2 Stroke engine oil Turn the ignition switch to “OFF”. 2 .5 mL Do not smoke. -
Page 11: Starting Procedure
6. Starting Procedure Warning: Never fill the tank so the fuel level rises into the filler neck. If the tank is overfilled, heat may cause the fuel to expand and overflow through the vents in the tank cap. After refuelling, make sure the fuel tank cap is closed securely. -
Page 12: Warm-Up Procedure
7. Warming Up Procedure Starting continued: After starting the engine, run the engine at the idling Warning: speed (throttle lever position is fully CLOSED) for a few minutes. Releasing the starting rope suddenly may allow the rope to whip around and cause injury and/or Fuel Adjustment damage the recoil starting mechanism. -
Page 13: Stopping
8. Stopping 9. Maintenance Engine switch Throttle lever Move the throttle lever on the equipment to the fully Air Cleaner Service CLOSED (engine idle speed) position, and the Clean the air cleaner element every 20 hours. engine running at idle speed. -Remove the air cleaner cap from the air cleaner Turn the engine switch to the “O”... -
Page 14: Maintenance
Maintenance continued: Spark Plug Maintenance continued -Check the spark plug gap and reset it if necessary. The gap must be between 0.6 and 0.7mm. To change the gap, bend only side-electrode, using a spark plug tool. -Install and tighten the spark plug to 14N·m (1.4kgf·m). -
Page 15: Section 10 Storage
Low output Engine Recoil starter or cooling air path See an authorised repairer overheats clogged with dirt Carbon built--up in combustion chamber Poor ventilation around engine Select a better location. For an authorised repairer see the Cobra dealer locator – cobragarden.co.uk... -
Page 16: Section 12 Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 17: Section 14 Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity Machine Description: Brush cutter Machine Type: BC270KB (PNBC270K) BC270K (PNBC270K) BC350KB (PNBC350KB) BC350K (PNBC350K) BC450K (PNBC450K) Displacement BC270 -26.3 cm BC350 - 34.4 cm BC45K -45.4 cm...
