kenall Medmaster Softstep MSL Series Installation Instructions

MEDMASTER SOFTSTEP
MSL SERIES
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO
AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
INSTALLATION INSTRUCTIONS
1. For minimum 5/8" trade size dry wall, adjustable up to 1-1/4" (MSL/MSLD). Dry wall range 1/2" to 7/8" for MSLT. Thru-Wall, TW is
fixed at 5/8" dry wall.
2. Disconnect power to main circuits before wiring fixture.
3. Connect fixture leads to power supply leads using connectors suitable for the gage and number of wires being used (not included).
Black or blue colored wire connects to the supply conductor, white fixture lead connects to the neutral supply conductor, and the
grounding wire must be connected to a suitable ground. Same applies to the outlet (MSLD only).
4. Carefully fasten electrical gear to fixture housing with hardware provided. Ensure all wires are inside the wire-way area.
5. Fasten faceplate to fixture with included fasteners. MSLT or Thru-Wall (TW) will have two faceplates. Electrical gear is accessible from
one side only.
Applicable to Accessory option RB, retrofit mounting bracket only

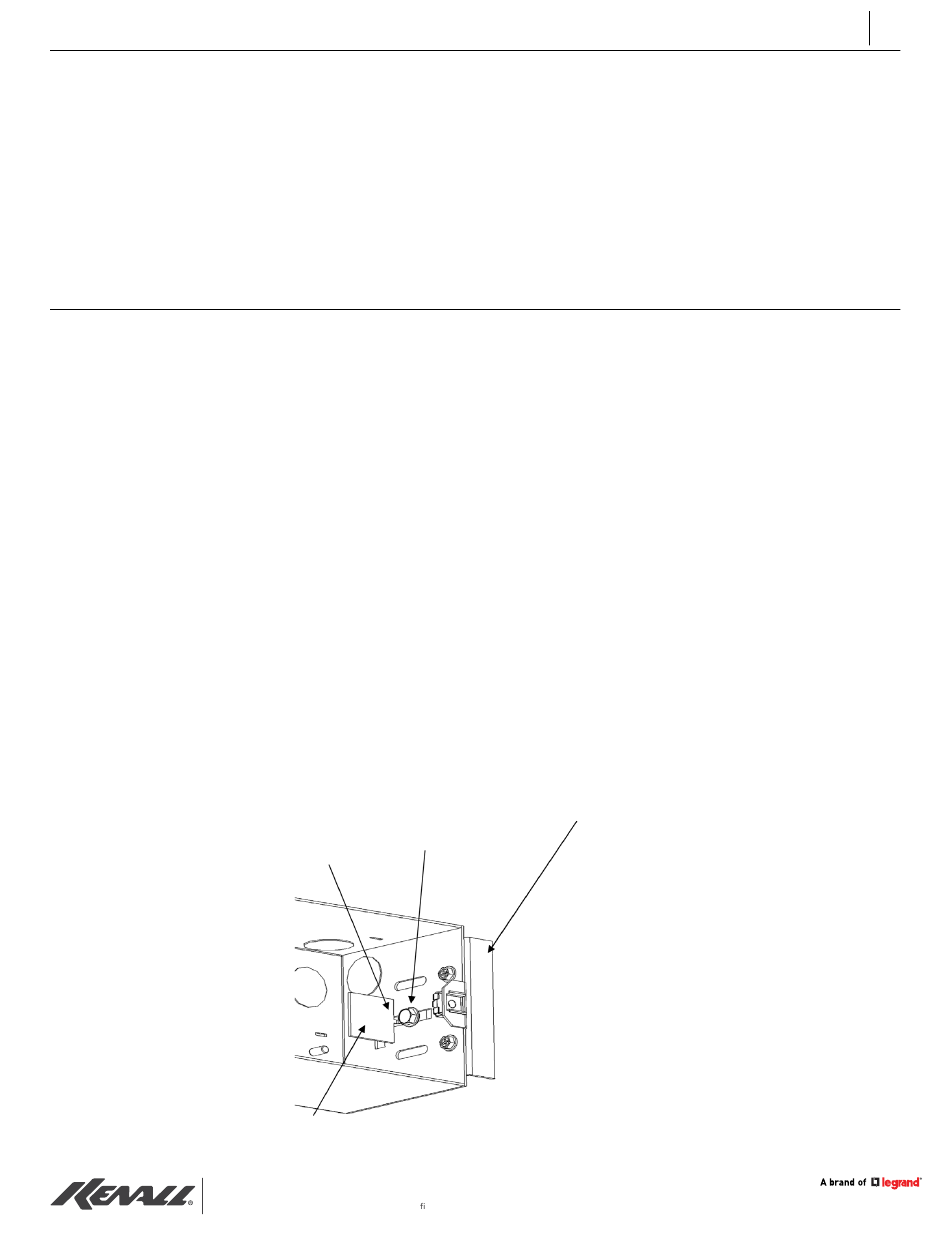

MSL/MSLD Series, See Figure below
1. Remove two existing mounting brackets from (rough-in) fixture housing if supplied.
2. Attach two new retrofit brackets (A) with existing fasteners to holes.
3. Insert (rough-in) fixture housing into the wall opening with the brackets resting on the outer wall surface.
4. Slide clip (B) into the T- slot as shown in Figure 1.
5. Turn fastener (C) on the clip to secure fixture housing.
6. Break off Tab and discard.
7. Refer to above for wiring instructions.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
STEPLIGHTS
™

IMPORTANT SAFEGUARDS

ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
Fastener (C)
Clip (B)
Break off tab after fastener is secured.
INSTALLATION INSTRUCTIONS
Retrofit Bracket (A)
1
MSL_F-2051_090418
