Summary of Contents for STALEX BS-115

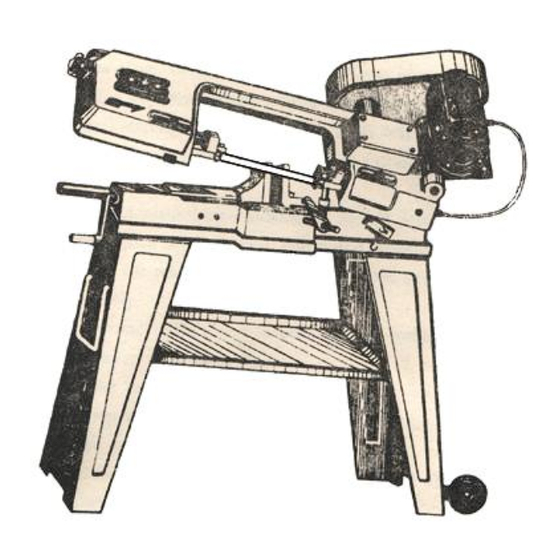

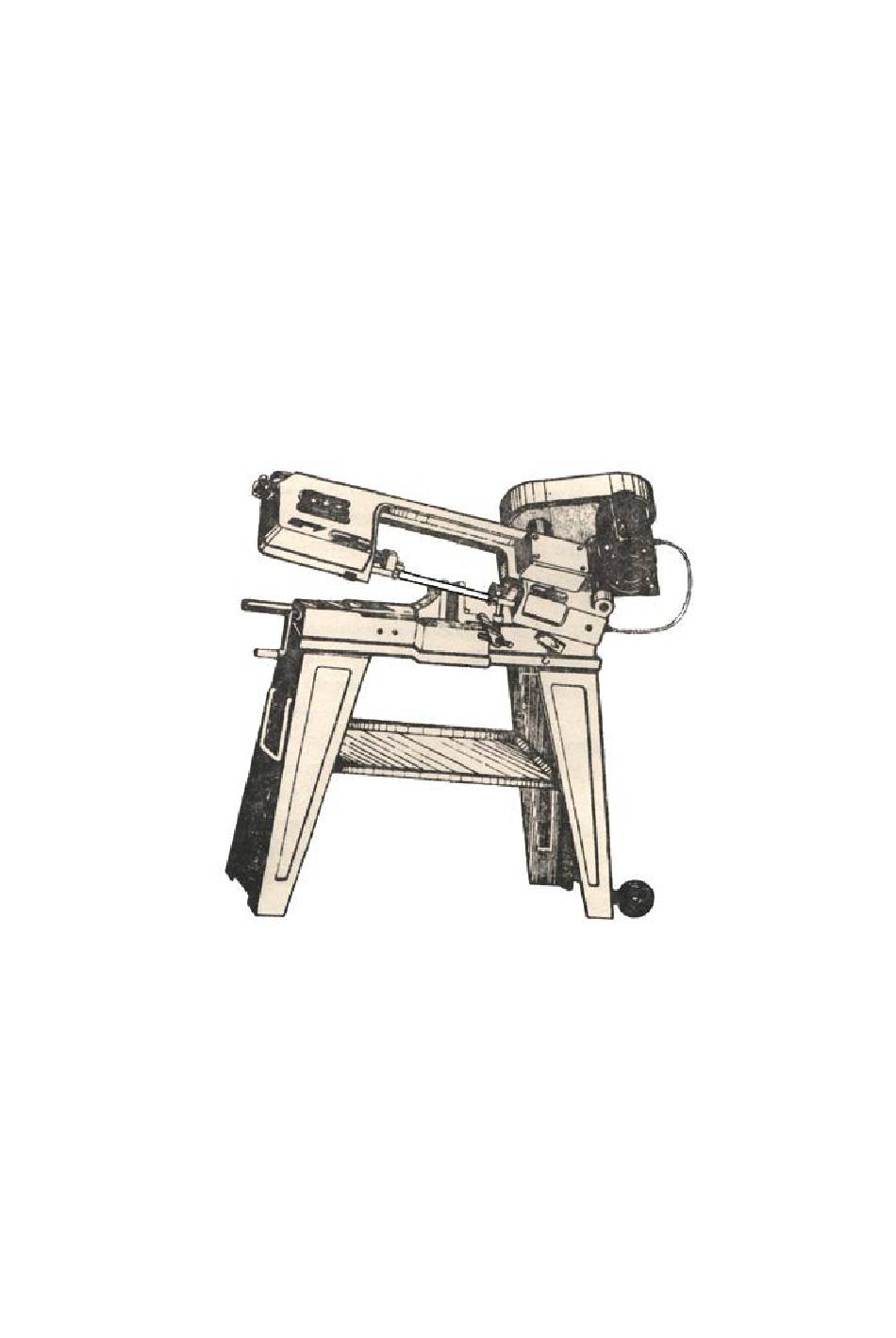

- Page 1 Horizontal and Vertical Metal Cutting Band Saw MODEL: BS-115...
- Page 2 SAFETY 1. Know your band saw. Read the operator’s Manual carefully. Learn the operations, applications and limitation. 2. Use recommended accessories. Improper accessories may be hazardous. 3. Wear proper apparel. 4. Keep unnecessary people away. 5. Don’t overreach or stand on tool. 6.
-
Page 3: Specification
FEATURES 1. Special designed horizontal and vertical band saw. 2. Offers three speeds for cutting metal plastic or wood. 3. Shuts off automatically when material is cut. 4. With scale for the mitering vise. 5. No noise while operating. 6. Casters (optional) quick and easy moving. SPECIFICATION ’’... -
Page 4: Blade Guide Assembly Adjustment
and guide bearing. To obtain this clearance adjust as follows: 1. The inner guide bearing is fixed and cannot be adjusted. 2. The outer guide bearing is mounted to an eccentric bolt and can be adjusted. 3. Loosen the nut while holding the bolt with a wrench. 4. -
Page 5: Blade Selection
Cut off power. Open the pulley guard cover. Loosen the lead screw (#98), you are now able to change the position of the belt to gain the desired speed. Check the belt tension as instructed before. When the tension the belt is well adjusted, lock the motor firmly. Close the pulley guard cover. -
Page 6: Adjusting The Blade Tracking
permit left hand to slip the blade around the pulley using the thumb, index and little finger as guides. 6. Adjust the blade tension knob clockwise until it is just right enough so no blade slippage occurs. Do not tighten excessively. 7. - Page 7 CUTTING Close switch, letting the head down slowly onto the work, Do not drop or force. Let the weight of the saw head provide the cutting force. The saw automatically shuts off at end of the cut. Method of adjusting blade: A.
- Page 8 THE VERTIACAL CUTTING PLATE ASSEMBLY DRAWING. Plate Vertical cutting plate stand Steps for assembling: 1. Loosen the A.B.C. three screws from the blade guide. And take away the part “D” 2. To lock the vertical cutting plate stand on the valve. 3.
- Page 9 The manual of V shape fixed plate 1. Hexagon head screw 8PCS 2. Washer 16PCS 3. V. shape fixed plate 4PCS 4. Hexagon nut 8PCS...
-
Page 10: Troubleshooting Chart
TROUBLE SHOOTING CHART Symptom Possible Cause (s) Corrective Action Material loose in vise 1. Clamp work securely Incorrect speed or feed 2. Adjust speed or feed Blade teeth spacing too 3. Replace with a small teeth Excessive Blade large spacing blade Breakage Material too coarse 4. - Page 11 Symptom Possible Cause (s) Corrective Action 1. Tooth too coarse for work 1. Use finer tooth blade 2. Too heavy pressure, too 2. Decrease pressure, slow speed increase speed Teeth Ripping from Blade 3. Vibrating work piece 3. Clamp work piece 4.
-
Page 12: Parts List
PARTS LIST Parts No. Description Quantity required Hexagon head screw Hexagon nut Washer Floor stand (right) Wheel assay (optional) Cotter pin Hexagon head screw Hexagon nut Floor stand (left) Floor stand handle (optional) Adjusting rod Electric cord Pivoting rod Support plate Stock stop Hexagon socket headless screw Stock stop rod... - Page 13 Parts No. Description Quantity required Washer Hexagon head screw Hexagon head screw Pivot Vertical cutting plate Vertical cutting plate stand Adjustable bracket (left) Plum screw Blade back safety cover Thrust washer Bearing Guide pivot Bearing shaft pin Blade adjustable seat Adjustable bracket (right) Blade roller bearing guide adjustable lock Spring washer...
- Page 14 Parts No. Description Quantity required Hexagon socket headless screw Spring pin Sliding plate draw block Blade wheel shaft Shaft block Blade tension sliding guides Motor pulley cover Belt Blade Washer Washer Thrust washer Bearing Round head cross socket screw Hexagon nut Bushing Switch protection bracket Blade safe guard...
- Page 15 Part Assembly Drawing...
